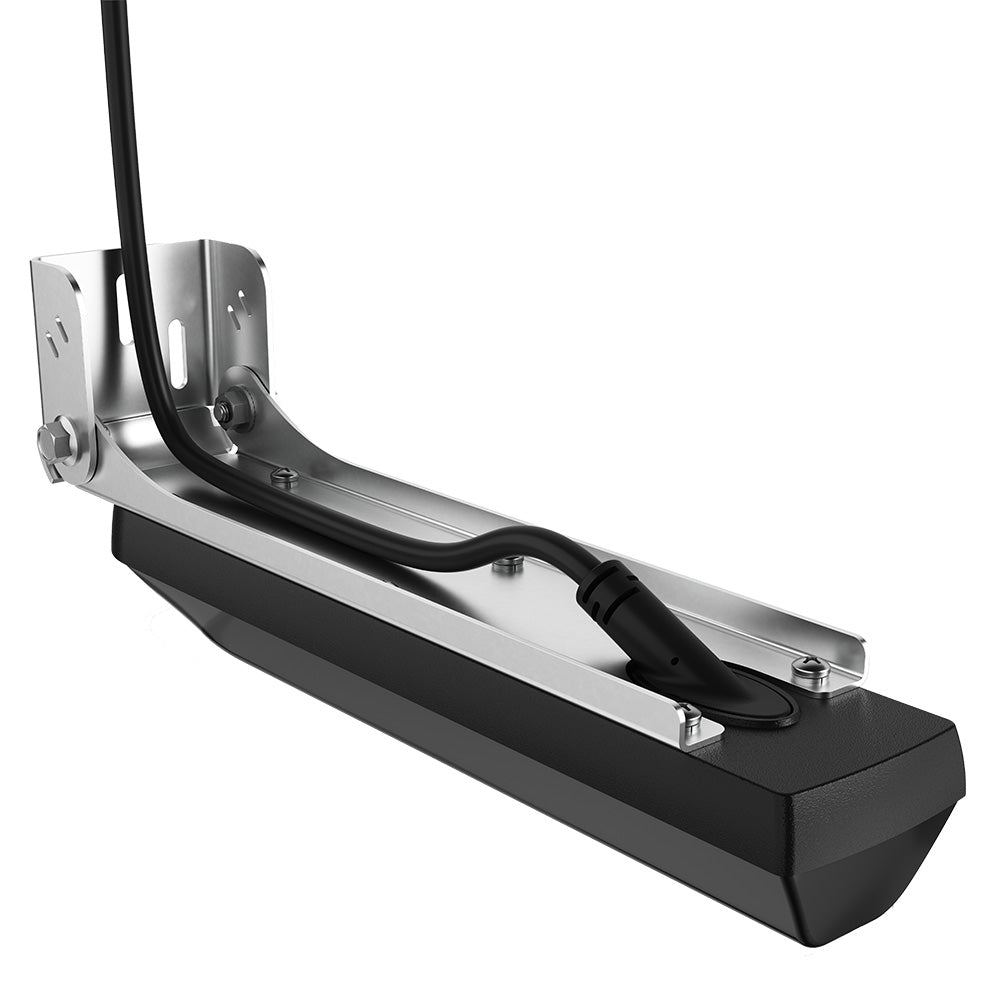

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer

Active Imaging HD™ 3-in-1 FishReveal Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy.

*requires S3100 sonar module for Fish Reveal SideScan

Features:

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
• Lowrance CHIRP with superb clarity and target separation
• FishReveal™ with new SideScan* view as well as DownScan
• Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies
• Smart transducer design boosts signal clarity
• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS.

*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Specifications:

• Cable Length (Feet): 25'
• Chirp: Medium/High
• Imaging: Standard/Down/Side
• Mounting Style: Transom
• Pins: 9
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 10"W x 14"L WT: 4.35 lbs
• UPC: 9420064130344
