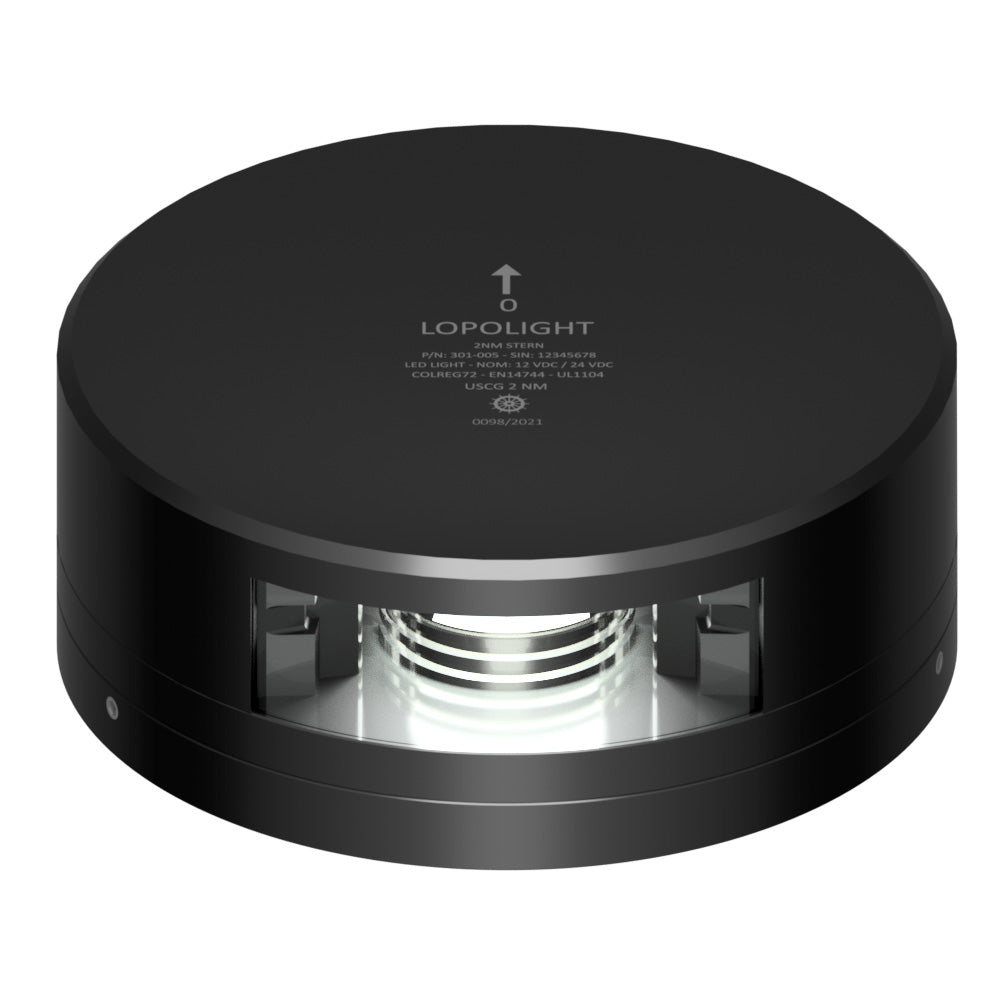

Lopolight Stern Light - 2NM - Black Housing w/FB Base

The Stern Light - 2NM - Black Housing with FB Base is engineered for marine enthusiasts seeking reliability and style. This white stern light, housed in durable black anodized aluminum, ensures high visibility with a two-nautical-mile range. Its horizontally mounted design, paired with the innovative FB base, offers seamless installation and a sleek, low-profile appearance, making it an excellent choice for various vessel sizes.

Key Features

• Black anodized aluminum housing for enhanced durability and aesthetic appeal
• Pre-cabled with a 2.5-meter shielded marine-grade cable for easy installation
• PMMA lens ensures clear and bright light emission
• IP68 rating provides superior protection against water and dust ingress
• Energy-efficient with low power consumption (1.3W)

Technical Specifications

Specification	Details
Light Color	White
Visibility	2 Nautical Miles (2NM)
Operating Voltage	10-32 VDC
Current Consumption	50 mA @ 24VDC 110 mA @ 12VDC
Power Draw	1.3 W
Dimensions	Ø92.5mm x 36mm (Ø3.6" x 1.4")
Operating Temperature	-25°C to 55°C
IP Rating	IP68
Connection	2.5m shielded marine-grade cable
Minimum Feed Wire Gauge	0.5mm² AWG22
Materials	Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
Dimensions (Box)	4"H x 4"W x 4"L
Weight	1.45 lbs
EAN	5704438043626
UPC	879343043759
Vessel Size Compatibility	Under 12 meters, 12-20 meters, and 20-50 meters

Installation Guide

The Stern Light - 2NM is designed for straightforward installation on a variety of vessels. The FB base allows for both screw-down and from-below mounting, providing flexibility to fit different deck configurations. Centered wiring is optimized for antenna-type pole mountings, ensuring a clean and professional setup. The included 2.5-meter shielded marine-grade cable simplifies the connection process, while the comprehensive installation guide walks you through each step.

Compliance and Certifications

Our stern light meets and exceeds industry standards, ensuring safety and reliability on the water. It is approved to the following certifications:

• Coleberg Rules 1972 (COLREG72)
• EN14744
• IEC 60945
• IACS E10
• US Coast Guard (USCG)
• American Bureau of Shipping (ABS)
• Marine Equipment Directive (M.E.D.)
• DNV
• Lloyd's Register (LR)

Package Includes

• 1 x Stern Navigation Light
• 2.5 meters shielded marine-grade cable
• Installation guide

Additional Resources

For detailed installation instructions and product usage, please refer to our Quick Guide (PDF).
