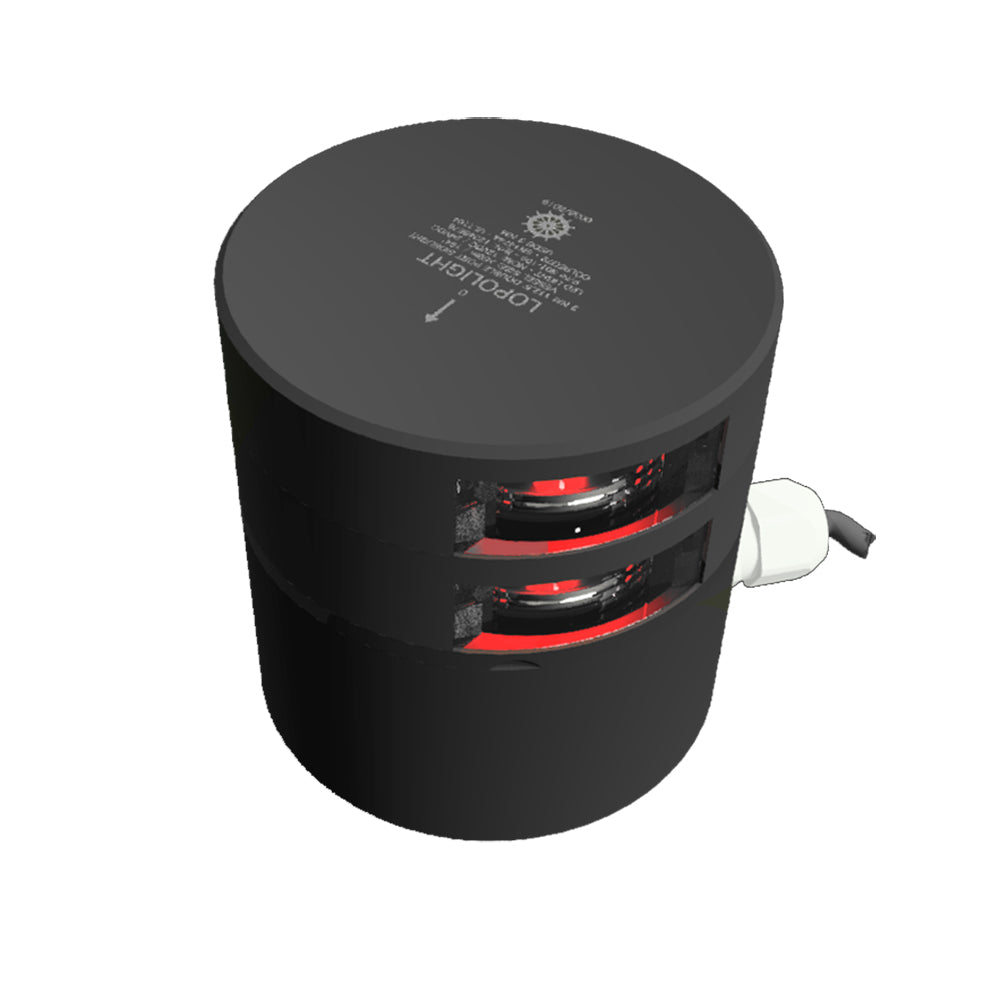

Lopolight Series 301-109 - Double Stacked Navigation Light - 3NM - Horizontal Mount - Red - Black Housing

Enhance your vessel’s visibility and safety with the Series 301-109 Double Stacked Navigation Light. Designed for larger boats and yachts over 164 feet, this high-performance light ensures compliance with international maritime regulations while providing a sleek, durable solution for your navigation needs.

Product Overview

The Series 301-109 by Lopolight combines reliability with advanced engineering to deliver a navigation light that stands out in both functionality and design. Perfectly suited for horizontal mounting, its black anodized aluminum housing not only offers a sophisticated look but also ensures long-lasting performance in harsh marine environments.

Key Features

• Double Stacked Design: Provides enhanced visibility and redundancy for critical navigation applications.
• High Visibility: Equipped with dual LED bulbs offering a visibility range of 3 nautical miles, ensuring your vessel is seen clearly by others.
• Durable Construction: Anodized aluminum housing with an IP68 rating protects against water, dust, and corrosion.
• Flexible Power Requirements: Operates efficiently within a wide voltage range of 10 to 32 VDC, accommodating various marine electrical systems.
• Easy Installation: Comes with a plug connector and all necessary mounting hardware for straightforward setup.

Technical Specifications

Specification	Details
Visibility	3NM
Vessel Size	Over 164' (Over 50M)
Operating Voltage	10 - 32 VDC
Number of LED Bulbs	2
Light Color	Red
Mounting	Horizontal
Materials	Anodized Aluminum
Connection	Plug Connector
IP Rating	IP68
Weight	46.91oz

Certifications

• U.S. Coast Guard (U.S.C.G.) Approved
• EN14744 Certified
• COLREG72 Compliant

What's Included

• Navigation Light with Plug Connector
• Mounting Hardware
• Installation Guide

*Sold individually

Additional Specifications

Detail	Description
Housing	Black
Lens Color	Red
Visible Range (Miles)	3NM
Voltage - Input Range (Volts)	10 - 32
LED	Yes

Resources

For detailed installation instructions and product information, refer to the following documents:

• Quick Guide (PDF)
• Brochure (PDF)
