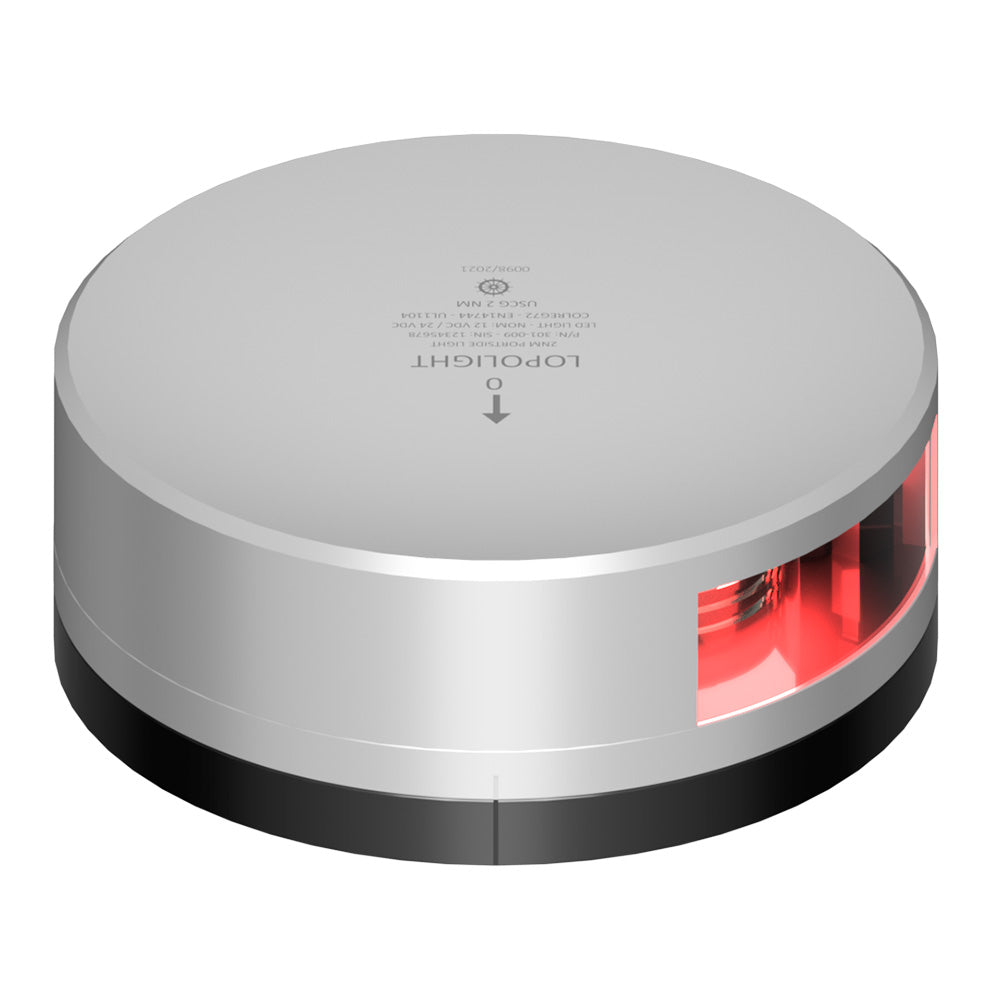

Lopolight Red Port Light - 2NM - Silver Housing w/FB Base

Enhance the safety and visibility of your vessel with our high-performance Red Port Light, featuring a durable silver anodized aluminum housing and a remarkable two-nautical-mile visibility range. Designed for both ease of installation and long-lasting performance, this navigation light is a must-have for any serious boater.

Key Features

• Constructed with silver anodized aluminum for superior durability
• Horizontally mounted design ensures optimal placement and visibility
• Two-nautical-mile range for enhanced navigation safety
• FB base allows for centralized wiring in antenna-type pole mountings
• Sleek, low-profile FB base provides a clean deck installation or from-below mounting
• Comes pre-cabled with 2.5 meters of shielded marine-grade cable for immediate installation

Technical Specifications

Specification	Details
Housing Material	Silver Anodized Aluminum 25µ
Lens Material	PMMA
Screws	A4 Stainless Steel
Sealants	Epoxy, Polyurethane
IP Rating	IP68
Light Color	Red
Visibility Range	2 Nautical Miles (NM)
Voltage Input Range	10-32 VDC
Current Consumption @ 24VDC	50 mA
Current Consumption @ 12VDC	90 mA
Power Draw	1.2 W
Dimensions (Metric)	Ø92.5mm x 36mm
Dimensions (Imperial)	Ø3.6" x 1.4"
Operating Temperature	-25°C to 55°C
Approved Certifications	COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Minimum Feed Wire Gauge	0.5mm² AWG22
EAN	5704438043725
UPC	879343043858
Box Dimensions	3"H x 3"W x 3"L
Weight	1.4 lbs
Operating Voltage	10-32 VDC
Vessel Size Compatibility	Under 12 meters, 12-20 meters, and 20-50 meters

Installation and Mounting

The Red Port Light is designed for versatile installation options, ensuring a seamless fit for various vessel types:

• Screw-Down Deck Mounting: Securely attach the FB base directly onto your deck for a stable and permanent installation.
• From-Below Mounting: Utilize the FB base to mount the light from below the deck, maintaining a sleek exterior profile.

The included 2.5-meter marine-grade cable simplifies the wiring process, allowing for quick and hassle-free setup.

Compliance and Certification

Our Red Port Light meets and exceeds industry standards, ensuring reliability and safety on the water:

• COLREG72
• EN14744
• IEC 60945
• IACS E10
• USCG
• ABS
• M.E.D.
• DNV
• LR

Additional Resources

For detailed installation instructions and maintenance tips, please refer to our Quick Guide (PDF).
