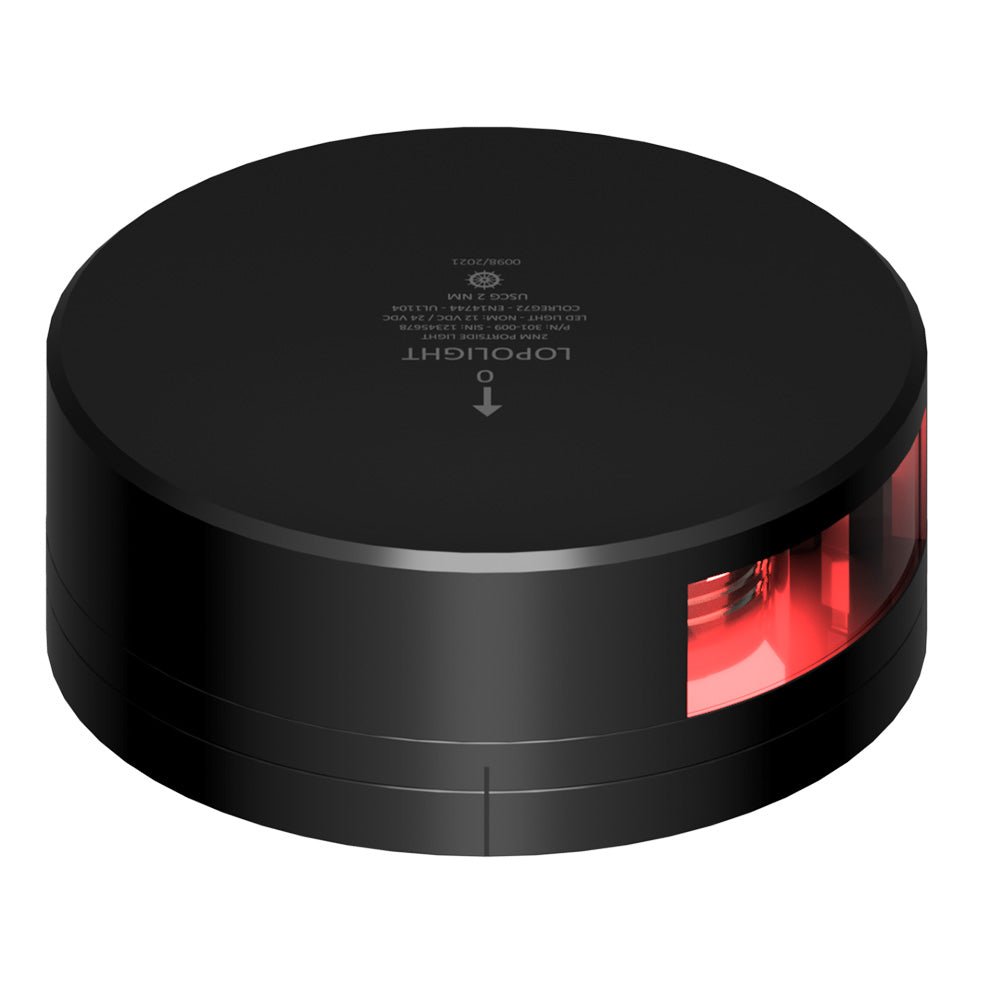

Lopolight Red Port Light - 2NM - Black Housing w/FB Base

The Red Port Light - 2NM is a high-performance navigation light designed for marine and boating applications. Crafted with a sleek black anodized aluminum housing, this port light offers a reliable 2 nautical mile visibility range, ensuring your vessel remains visible and compliant with maritime regulations. The horizontally mounted design, paired with an FB base, provides versatile installation options, allowing for both screw-down onto deck and from-below mounting. Its streamlined base ensures a reduced profile, enhancing the aesthetic appeal of your vessel while maintaining robust functionality.

Features

• Durable Construction: Black anodized aluminum housing ensures long-lasting performance in harsh marine environments.
• Extended Cable: Comes pre-cabled with a 2.5-meter shielded marine-grade cable for easy and secure installation.
• Versatile Mounting: FB base allows for both screw-down onto deck and from-below mounting, providing a sleek and low-profile installation.
• High Visibility: Provides a clear red light with a 2 nautical mile visibility range, enhancing safety and compliance.
• Energy Efficient: Low power consumption ensures minimal impact on your vessel's power system.

Technical Specifications

Specification	Details
Approved To	COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting	Horizontal
EAN	5704438043862
Minimum Feed Wire Gauge	0.5mm² AWG22
Light Color	Red
Visibility	2NM
Included in Package	1 Navigation light, pre-cabled with 2.5 meters shielded marine-grade cable, and installation guide
Materials	Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP Rating	IP68
Connection	2.5m cable
Current Consumption @ 24VDC	50 mA
Current Consumption @ 12VDC	90 mA
Dimensions	Ø92.5mm x 36mm (Ø3.6" x 1.4")
Operating Temperature	-25°C to 55°C
Operating Voltage	10-32VDC
Power Draw	1.2W
Suitable for Vessel Sizes	Under 12 meters, 12-20 meters, and 20-50 meters
UPC	879343043995
Box Dimensions	4"H x 4"W x 4"L
Weight	1.4 lbs

Installation

The Red Port Light - 2NM is designed for straightforward installation on a variety of vessel sizes. The FB base ensures that wiring for antenna-type pole mountings is centrally located, providing a clean and organized setup. Whether you prefer a screw-down onto deck installation or a from-below mounting, this port light accommodates both methods, ensuring a secure and aesthetically pleasing fit.

Materials & Build Quality

Constructed from high-quality black anodized aluminum 25µ, the Red Port Light is built to withstand the rigors of marine environments. The PMMA lens ensures clear light output, while A4 stainless steel screws provide strong and corrosion-resistant fastening. Epoxy and polyurethane coatings further enhance durability, ensuring long-term performance and reliability.

Additional Resources

Download the Quick Guide (PDF) for detailed installation instructions and product information.
