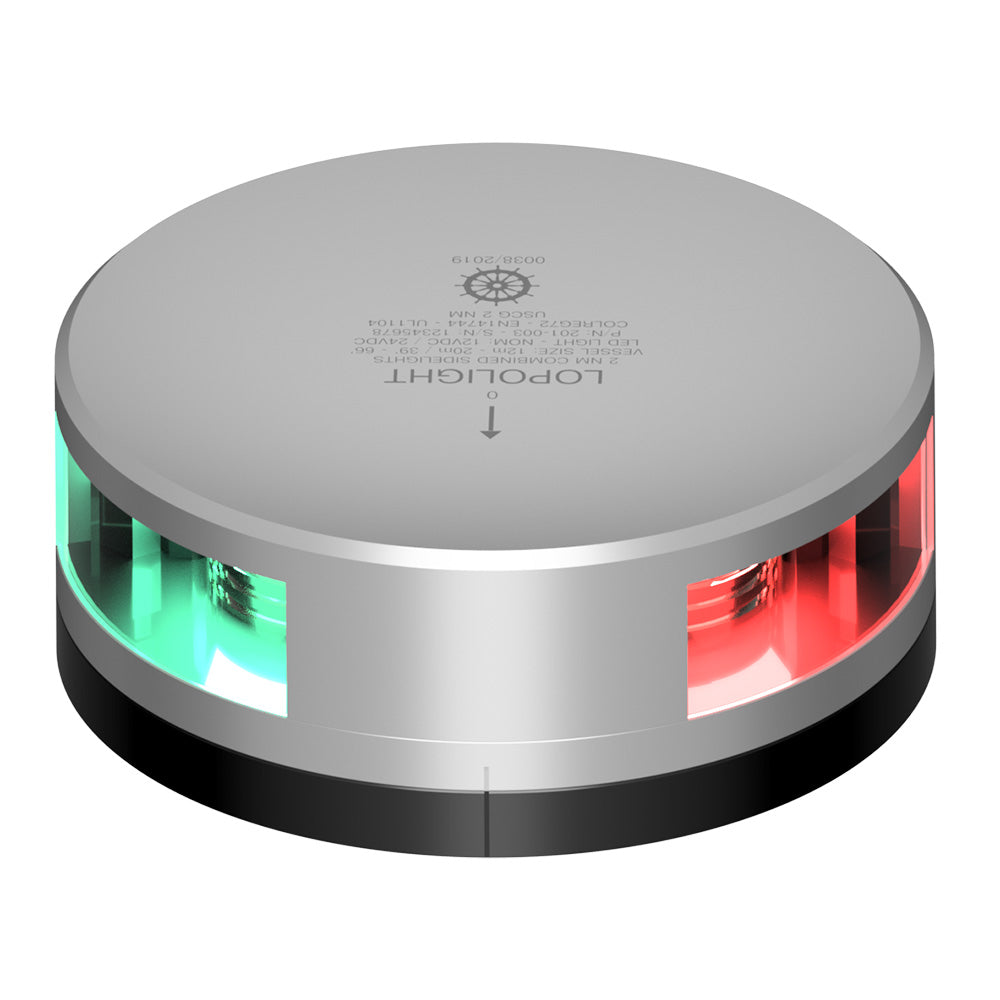

Lopolight Combined Sidelight - 2NM - Silver Housing w/FB Base

Enhance the safety and visibility of your vessel with our Combined Sidelight - 2NM - Silver Housing with FB Base. Engineered for marine enthusiasts, this sidelight delivers a reliable two-nautical-mile range, ensuring optimal visibility in various maritime conditions. The horizontally mounted design, paired with the advanced FB base, centralizes wiring for antenna-type pole mountings, offering a sleek and streamlined profile that seamlessly integrates with your boat's deck.

Key Features

• Durable silver anodized aluminum housing ensures longevity and resistance to harsh marine environments.
• Includes a 0.75m shielded marine-grade cable for easy and secure installation.
• FB base allows for both screw-down deck mounting and from-below mounting options, providing versatile installation solutions.
• Pre-cabled with a 2.5-meter shielded marine-grade cable for immediate readiness.

Technical Specifications

Specification	Details
Visible Range	2 Nautical Miles (NM)
Light Colors	Red and Green
Housing Material	Silver Anodized Aluminum
Lens Material	PMMA
Mounting Orientation	Horizontal
Operating Voltage	10-32 VDC
Current Consumption @ 24VDC	90 mA
Current Consumption @ 12VDC	163 mA
Power Draw	2.2 Watts
Dimensions	Ø92.5mm x 36mm (Ø3.6" x 1.4")
Weight	1.4 lbs
Operating Temperature	-25°C to 55°C
IP Rating	IP68
Feed Wire Gauge	Min. 0.5mm² (AWG22)
Certifications	COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Vessel Size Compatibility	Under 12 meters
EAN	5704438043282
UPC	879343043414

Included in the Package

• 1 Navigation Light pre-cabled with 2.5 meters of shielded marine-grade cable
• 0.75m additional marine-grade cable
• Installation Guide for easy setup

Installation Options

The FB base offers flexible mounting solutions, allowing you to securely attach the sidelight to your deck using the screw-down method or mount it from below. This versatility ensures a clean and low-profile installation, maintaining the aesthetic integrity of your vessel.

Materials and Durability

Constructed from high-quality silver anodized aluminum, the sidelight is built to withstand the demanding marine environment. The PMMA lens ensures clear light emission, while A4 stainless steel screws provide robust fastening. Protective coatings like epoxy and polyurethane enhance resistance to corrosion and wear.

Additional Resources

Download the Quick Guide (PDF) for detailed installation instructions and product information.
