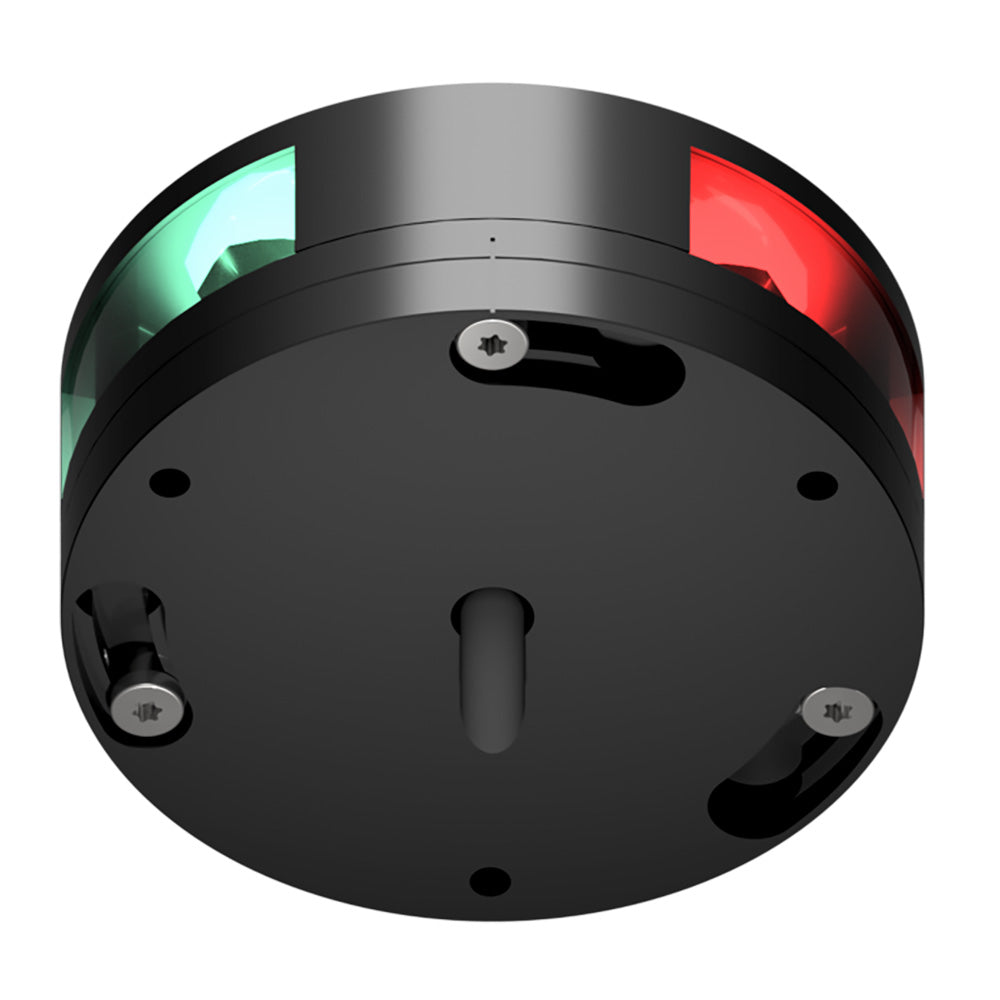

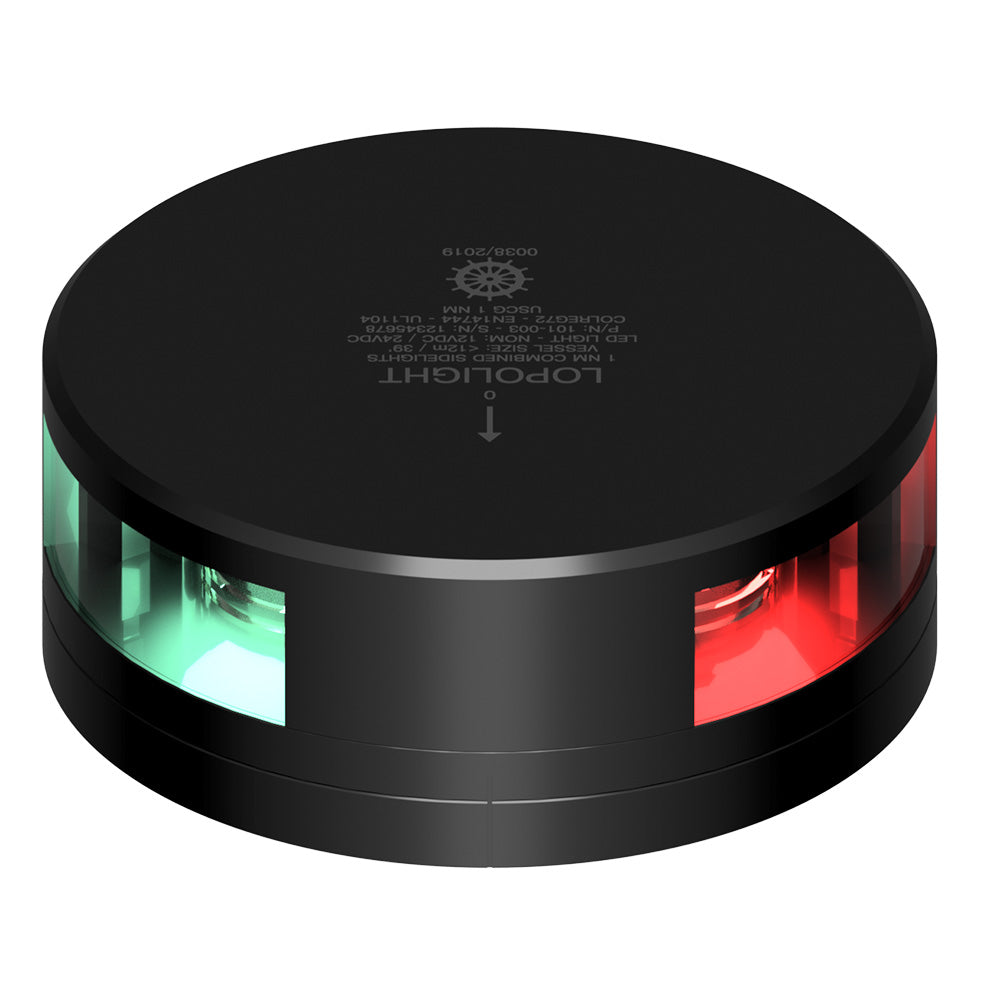

Lopolight Combined Sidelight - 1NM - Black Housing w/FB Base
Lopolight Combined Sidelight - 1NM - Black Housing w/FB Base is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance your vessel's safety and compliance with our Combined Sidelight - 1NM, featuring a sleek black anodized housing and a versatile FB base. Designed for horizontal mounting, this navigation light offers a reliable one-nautical mile visibility, ensuring your presence is clearly marked during navigation. The FB base allows for streamlined wiring with antenna-type pole mountings, providing both screw-down deck installation and from-below mounting options for a seamless, low-profile setup.
Key Features
- Durable black anodized aluminum housing
- Includes a 2.5m high-quality cable for easy installation
- FB base offers versatile mounting options for various deck configurations
- PMMA lens ensures clear and consistent light output
- IP68 rating for superior protection against water and dust
Technical Specifications
| Parameter | Details |
|---|---|
| Approved To | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Mounting Orientation | Horizontal |
| EAN | 5704438042605 |
| Minimum Feed Wire Gauge | 0.5mm2 AWG22 |
| Light Colors | Red, Green |
| Visibility Range | 1 Nautical Mile (1NM) |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane |
| IP Rating | IP68 |
| Connection Cable | 2.5m high-quality cable included |
| Current Consumption @ 24VDC | 48 mA |
| Current Consumption @ 12VDC | 87 mA |
| Dimensions (Metric) | Ø92.5mm x 58mm |
| Dimensions (Imperial) | Ø3.6" x 1.4" |
| Operating Temperature | -25°C to 55°C |
| Operating Voltage | 10-32VDC |
| Power Draw | 1.4W |
| Suitable for Vessel Size | Under 12 meters |
Installation & Mounting
The Combined Sidelight - 1NM is designed for ease of installation on vessels under 12 meters. The FB base allows for both screw-down deck mounting and from-below mounting options, providing flexibility to suit your boat’s layout. The included 2.5m cable ensures a straightforward connection to your vessel's electrical system, while the sleek design maintains a clean and professional appearance.
Compliance & Standards
Our navigation light meets stringent marine safety standards, including COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR certifications. This ensures reliable performance and adherence to international maritime regulations, providing peace of mind during your voyages.
Materials & Durability
Constructed from high-quality silver anodized aluminum, the Combined Sidelight - 1NM is built to withstand harsh marine environments. The PMMA lens offers excellent light clarity and longevity, while A4 stainless steel screws ensure secure mounting. The epoxy and polyurethane coatings provide additional protection against water ingress and corrosion, maintaining the light’s performance over time.
Performance
With a visibility range of 1 nautical mile, this sidelights ensure your vessel is visible to others, enhancing safety during navigation. The dual-color lights in red and green conform to maritime signaling requirements, clearly indicating your vessel's port and starboard sides.
Quick Guide
Download the Quick Guide (PDF) for detailed installation instructions and operational information.
