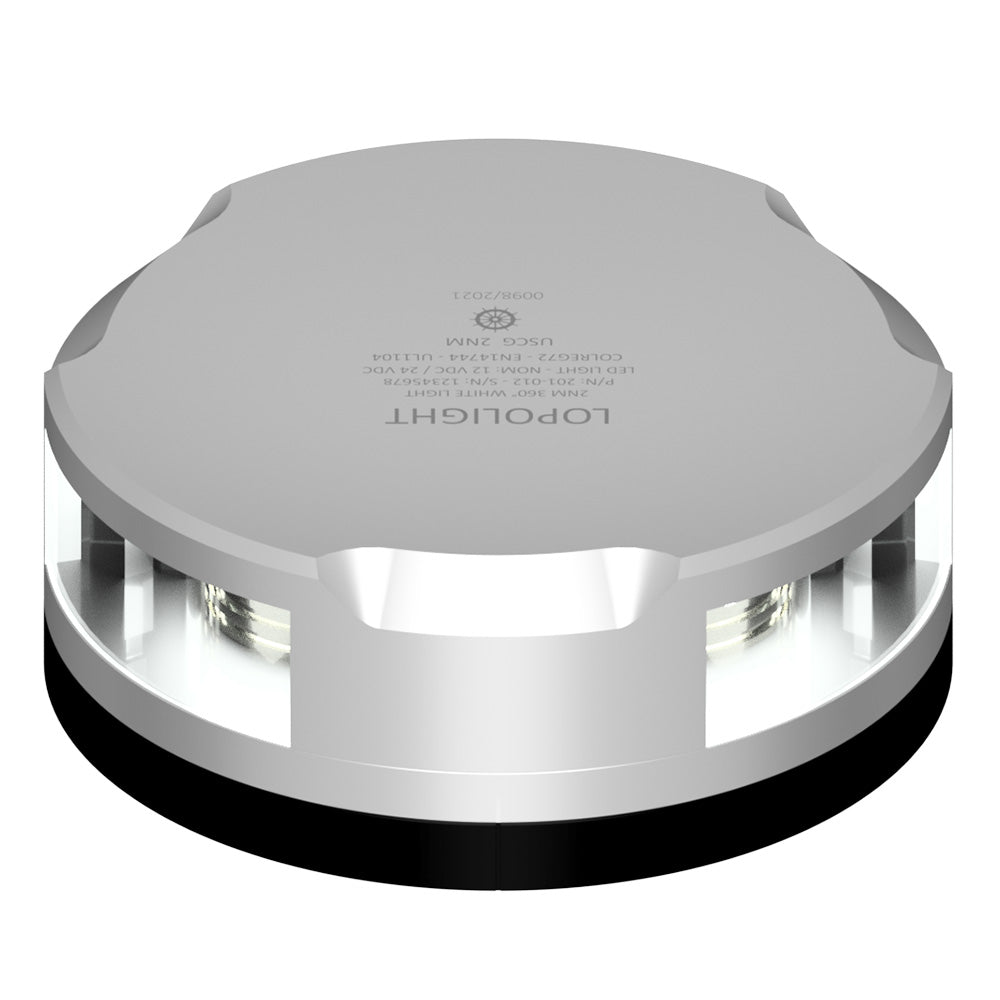

Lopolight 360-Degree Anchor Light - 2NM - Silver Housing w/FB Base

The 360-Degree Anchor Light is a vital navigation accessory for vessels up to 50 meters, ensuring maximum visibility and compliance with international maritime regulations. Crafted from durable silver anodized aluminum, this horizontally mounted navigation light delivers a bright white beam visible up to two nautical miles, enhancing safety during nighttime and low-visibility conditions. The innovative FB base design allows for seamless wiring integration and offers both deck and below-deck mounting options, providing a sleek and unobtrusive profile on your vessel.

Key Features

• Robust silver anodized aluminum housing for enhanced durability
• Horizontally mounted design for optimal 360-degree visibility
• Two-nautical-mile visible range ensures clear signaling
• FB base facilitates centralized wiring and antenna-style pole mounting
• Sleek, low-profile installation with screw-down deck and from-below mounting options
• Pre-cabled with a 0.75-meter shielded marine-grade cable for easy installation

Specifications

Attribute	Details
Approval Standards	COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting Type	Horizontal
EAN	5704438042735
Minimum Feed Wire Gauge	0.5mm² AWG22
Light Color	White
Visibility	2 NM
Included in Package	1 Navigation light, pre-cabled with 0.75m shielded marine-grade cable, installation guide
Materials	Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP Rating	IP68
Connection	0.75m cable
Current Consumption @ 24VDC	110 mA
Current Consumption @ 12VDC	167 mA
Dimensions (Metric)	Ø92.5mm x 36mm
Dimensions (Imperial)	Ø3.6" x 1.4"
Operating Temperature	-25°C to 55°C
Operating Voltage	10-32 VDC
Power Draw	2 W
Suitable for Vessel Sizes	Under 12 meters, 12-20 meters, and 20-50 meters
Box Dimensions	3"H x 3"W x 3"L
Weight	1.15 lbs
UPC	879343042868

Installation Guide

The 360-Degree Anchor Light comes with a user-friendly installation guide to ensure a hassle-free setup. Whether you prefer a screw-down deck mounting or a from-below installation, the FB base provides flexibility to accommodate your vessel's specific needs. The pre-cabled 0.75-meter marine-grade cable simplifies the wiring process, allowing for a secure and reliable connection.

Materials and Durability

Constructed with high-quality materials, including silver anodized aluminum, PMMA lens, A4 stainless steel screws, epoxy, and polyurethane, this anchor light is built to withstand harsh marine environments. The IP68 rating guarantees complete protection against dust and continuous immersion in water, ensuring long-lasting performance and reliability.

Energy Efficiency

With a power draw of only 2 watts, the 360-Degree Anchor Light is energy-efficient, minimizing the impact on your vessel's power system. It operates effectively within a wide voltage range of 10-32 VDC, making it compatible with various marine electrical setups.

Additional Resources

For detailed instructions and maintenance tips, please refer to the Quick Guide (PDF).
