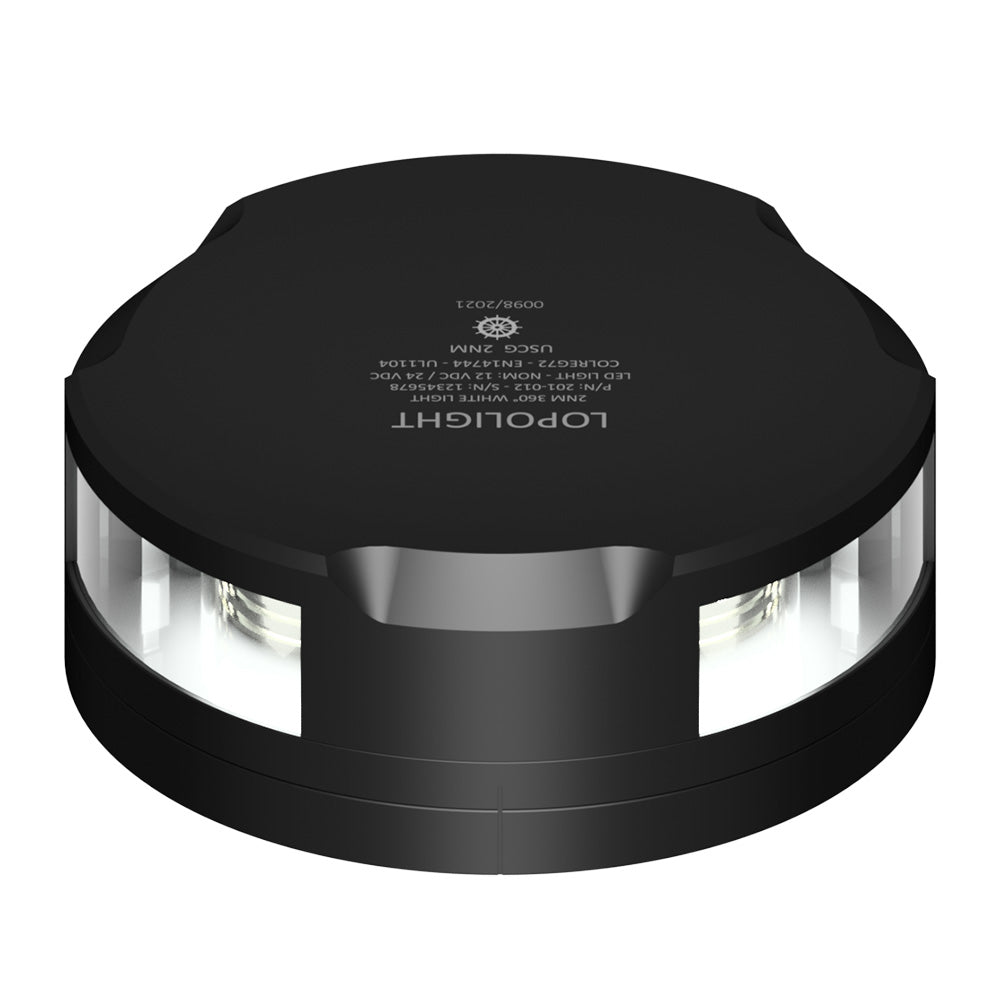

Lopolight 360-Degree Anchor Light - 2NM - Black Housing w/FB Base

The 360-Degree Anchor Light - 2NM in sleek black housing with FB base is an essential navigation tool for marine enthusiasts. Engineered for optimal visibility and durability, this anchor light ensures your vessel remains visible during nighttime operations, enhancing safety on the water.

Key Features

• Constructed from black anodized aluminum housing for corrosion resistance
• Includes a durable 0.75m marine-grade shielded cable for easy installation
• 360-degree visibility with a two-nautical-mile range ensures maximum visibility
• FB base design centers wiring for antenna-type pole mountings, providing a sleek and reduced profile
• Versatile mounting options: screw-down onto deck or from-below mounting
• IP68 rating guarantees protection against dust and water ingress, suitable for harsh marine environments

Technical Specifications

Feature	Details
Compliance	COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting Orientation	Horizontal
EAN	5704438042797
Minimum Feed Wire Gauge	0.5mm² AWG22
Light Color	White
Visibility Range	2 Nautical Miles (2NM)
Package Includes	1 Navigation Light, pre-cabled with 0.75-meter shielded marine-grade cable, Installation Guide
Materials	Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP Rating	IP68
Connection Cable Length	0.75 meters
Current Consumption @ 24VDC	110 mA
Current Consumption @ 12VDC	167 mA
Dimensions (Metric)	Ø92.5mm x 36mm
Dimensions (Imperial)	Ø3.6" x 1.4"
Operating Temperature	-25°C to 55°C
Operating Voltage	10-32VDC
Power Draw	2W
Suitable for Vessel Sizes	Under 12 meters, 12-20 meters, and 20-50 meters
Box Dimensions	4"H x 4"W x 4"L
Weight	1.2 lbs
UPC	879343042929

Installation and Usage

Installing the 360-Degree Anchor Light is straightforward with its pre-cabled 0.75-meter shielded marine-grade cable. Follow the included installation guide to securely mount the light either by screwing it down directly onto your deck or using the from-below mounting option provided by the FB base. The sleek design ensures a minimal profile without compromising visibility.

Additional Resources

For detailed installation instructions, refer to our Quick Guide (PDF).
