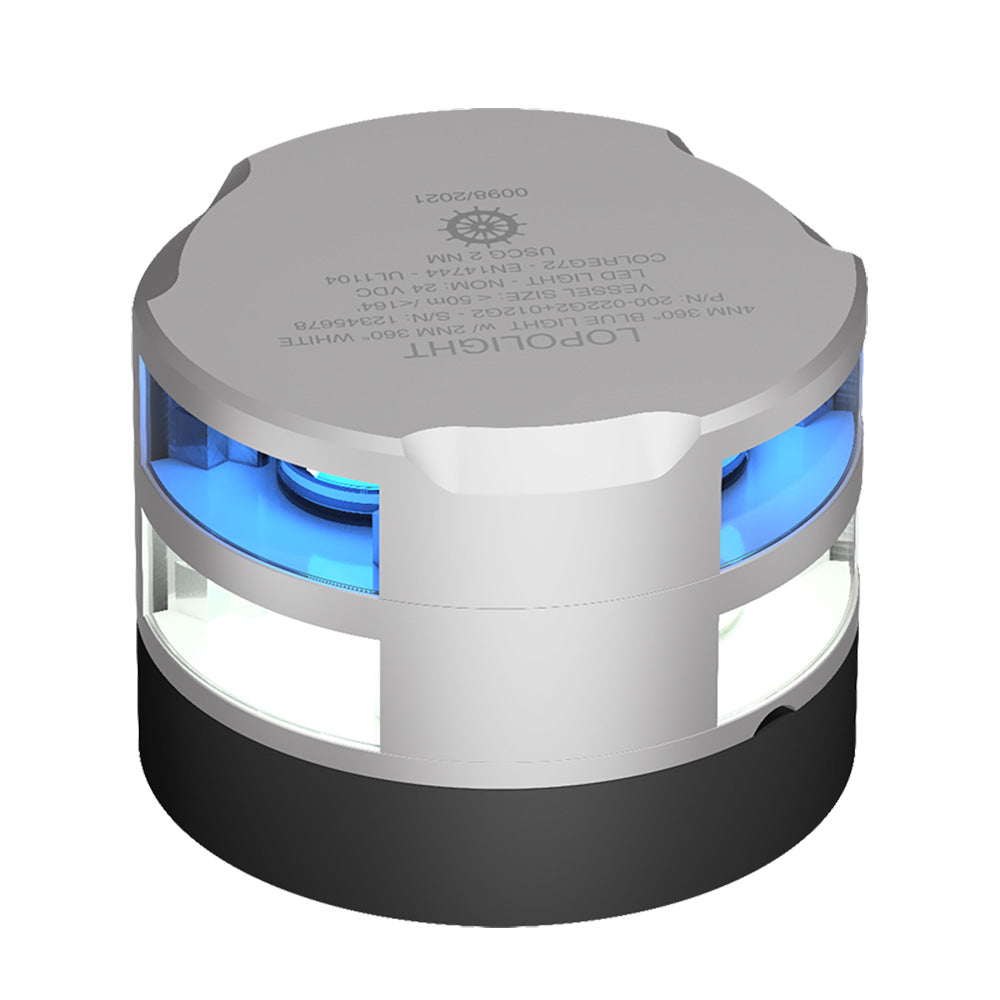

Lopolight 2nm 360 Degree Blue Dinner Light + 2nm 360 Degree White Light

Enhance your vessel's navigation system with the 2nm 360 Degree Blue Dinner Light and the 2nm 360 Degree White Light. Engineered for optimal performance and durability, these navigation lights ensure maximum visibility and compliance with international maritime standards, making them an essential addition to any boat.

Features

• Mounted horizontally on a robust black HDPE base for secure installation
• 360-degree illumination ensures visibility from all angles
• Pre-cabled with a 0.75-meter shielded marine-grade cable for easy setup

Specifications

Specification	Details
Light Color	White
Dimensions (Metric)	Ø92.5mm x 68mm
Dimensions (Imperial)	Ø3.6" x 2.6"
Intensity	>5.4cd
Visibility	2 nautical miles
Operating Voltage	10-32VDC
Current Consumption @ 12VDC	167 mA
Current Consumption @ 24VDC	110 mA
Operating Temperature	-25°C to 55°C
IP Rating	IP68
Connection Cable Length	0.7 meters
Weight	0.82 kg (28.92 oz)
Materials	Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Certification	Certified by DNV, complies with COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., LR
Vessel Size Compatibility	Under 12M, 12-20M, 20-50M
EAN	5704438020566

What's Included

• 1 Navigation Light
• Pre-cabled with 0.75-meter shielded marine-grade cable
• Installation Guide

Installation

The navigation lights are designed for straightforward installation on vessels ranging from under 12 meters to 50 meters. Mount the lights horizontally on the provided black HDPE base using the included A4 stainless steel screws. Ensure secure fastening to withstand marine conditions. The pre-cabled 0.75-meter shielded cable allows for flexible positioning and easy connection to your vessel's power supply.

Compliance and Certification

Our navigation lights are certified by DNV and come with a Declaration of Conformity. Additional certificates are available on www.lopolight.com/support. These lights are approved to meet international standards including COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR, ensuring reliable performance and safety on the water.

Durability and Performance

Constructed from high-quality materials such as black anodized aluminum, PMMA lens, and polyurethane, these navigation lights are built to endure harsh marine environments. With an IP68 rating, they offer excellent protection against water and dust ingress, ensuring longevity and consistent performance even in extreme conditions. The operating temperature range of -25°C to 55°C makes them suitable for various climates and maritime settings.

Technical Specifications

Parameter	Value
Operating Voltage	10-32VDC
Current Consumption	167 mA @ 12VDC, 110 mA @ 24VDC
Visibility Range	2 nautical miles
Intensity	More than 5.4 candela
Weight	0.82 Kg (28.92 Oz)
Dimensions	Ø92.5mm x 68mm / Ø3.6" x 2.6"
Materials	Black anodized aluminum, PMMA lens, stainless steel screws, epoxy, polyurethane
IP Rating	IP68
Operating Temperature	-25°C to 55°C

Suitable for Various Vessel Sizes

These navigation lights are versatile and compatible with a wide range of vessel sizes, including:

• Under 12 meters
• 12-20 meters
• 20-50 meters
