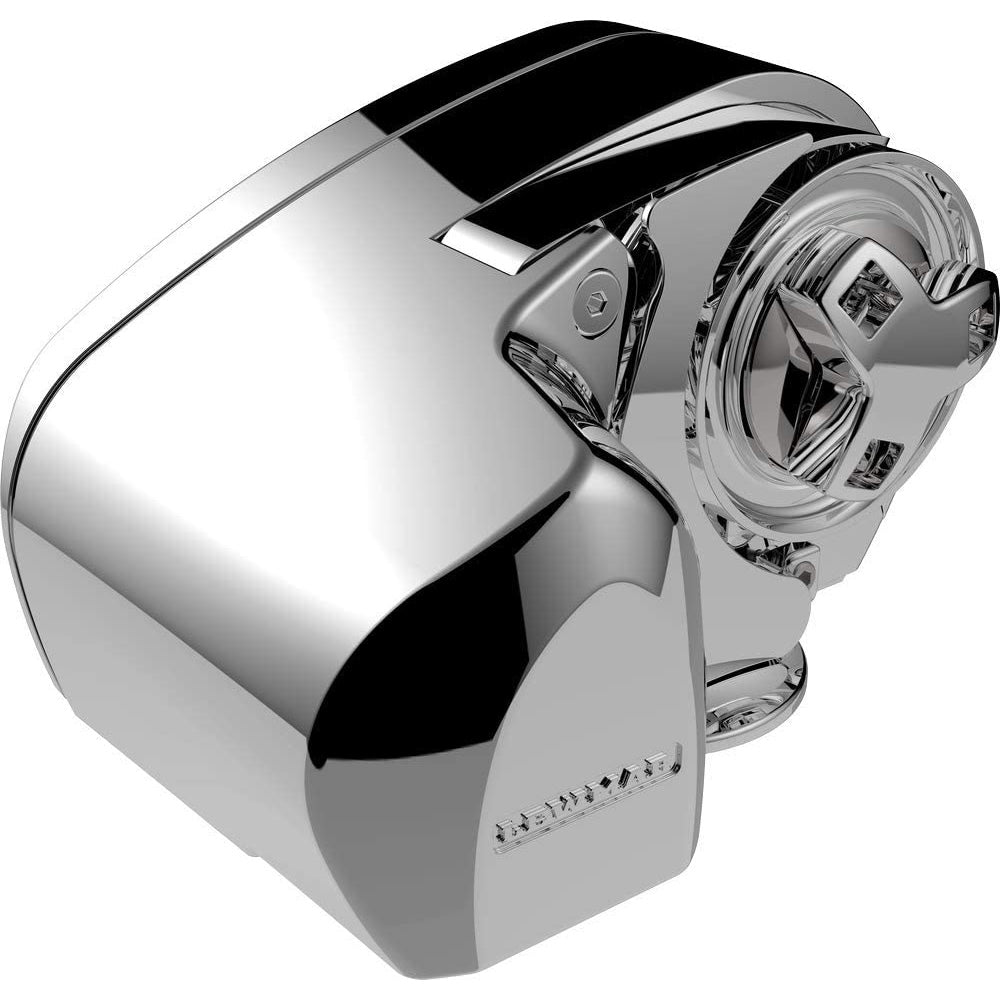

Lewmar Pro-Series Horizontal 1000H Windlass Kit - 12V

The Pro-Series Horizontal 1000H Windlass Kit - 12V is engineered for marine enthusiasts seeking reliability and performance. Crafted from 100% 316 stainless steel, this windlass ensures durability and protection in harsh marine environments. Designed for easy DIY installation above deck, it features a powerful motor for swift line handling and incorporates push-button controls alongside a built-in manual emergency recovery system, making anchoring seamless and stress-free.

Features

• Powerful motor for rapid line speed
• Integrated manual emergency recovery system
• Convenient above-deck horizontal installation

Technical Specifications

Specification	Details
Material	Stainless Steel
Maximum Pull	1,000 lbs
Maximum Line Speed	88 ft/min
Maximum Chain Size	5/16"
Maximum Rope Size	5/8"
Power	12 V
Maximum Boat Length	38 ft
Mounting Position	Horizontal

What's in the Box

• Windlass unit
• Control switch
• Circuit breaker
• Dual direction contactor/solenoid
• Instruction manual

*Sold as an Individual

Additional Specifications

Specification	Details
Chain Diameter	0.45"
Freefall	Yes
Rope Diameter	0.65"
Orientation	Horizontal
Box Dimensions	10" H x 10" W x 18" L
Weight	20 lbs
UPC	743683319891

Owner's Manual (PDF)
