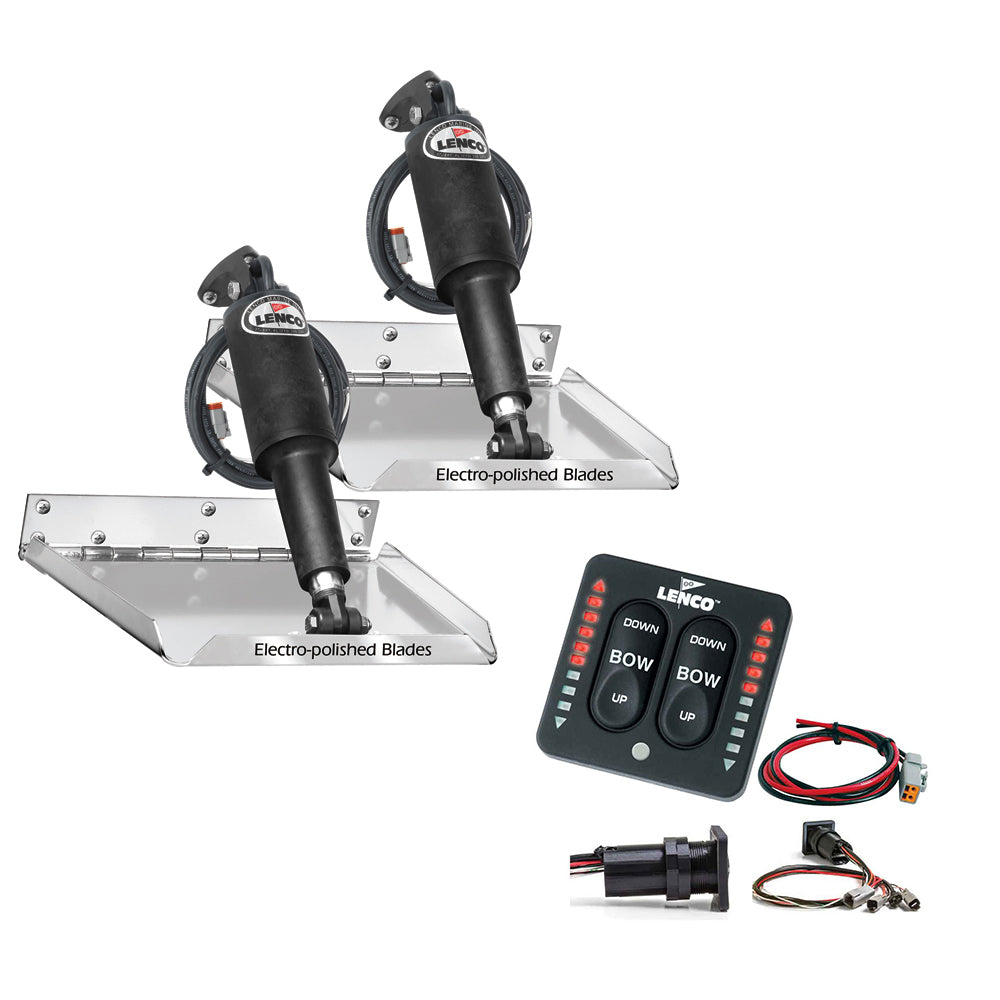

Lenco 16" x 12" Standard Performance Trim Tab Kit w/LED Indicator Switch Kit 12V

The Lenco Standard Performance Series Trim Tabs are engineered for the most demanding marine applications. Built with 12-gauge 304 stainless steel and electro-polished blades, these trim tabs deliver exceptional performance and reliability, whether you're navigating calm waters or tackling rough seas.

Durable Construction

Our Standard Performance Series Trim Tabs feature robust all-stainless steel construction, utilizing 5/16" stainless steel through bolts and 1" turned-up edges with a 2" taper on the inside. The electro-polished blades ensure long-lasting aesthetics and superior corrosion resistance, making them ideal for aggressive boating environments.

Precision Actuators

Experience smooth and reliable trim tab adjustments with our precision actuators. Key features include:

• Instant response for immediate trim tab movements
• Fully submersible, maintenance-free, and sealed for life
• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
• Precise and controllable actuator speed to prevent unexpected movements at high speeds

Advanced Control System

The tactile switch with indicator LED is designed for all single actuator trim tab systems, offering intuitive and reliable control:

• Self-contained, sealed keypad and control box module
• Fade and smudge-proof, laser-engraved graphics for durability
• Plug & play switch wiring harness connector for easy installation
• Includes a 36" power pigtail for the control box
• 2" hole cut-out size with an overall dimension of 2.75" x 2.75"
• Built-in retract feature automatically returns tabs to a fully retracted position when power is removed
• Dual high-intensity LED indicators display the exact position of the trim tabs at all times
• Photo eye sensor adjusts LED indicator brightness based on ambient light for optimal visibility in direct sunlight
• Compatible with both 12 & 24-volt systems
• Includes a self-check feature for system diagnostics

What's Included in Each Kit

• Tactile LED Indicator Switch Kit
• 2 actuators with 6' lead and Deutsch plugs
• 2 electro-polished 12-gauge stainless steel trim tab planes
• 2 20' actuator extension wiring harnesses
• 2 upper mounting brackets with gland seals
• 2 lower mounting brackets
• All necessary stainless steel mounting hardware

Why Choose Lenco?

At Lenco, we make the best boats better. Our Standard Performance Series Trim Tabs are built to handle the rigors of aggressive boating and harsh marine environments. Whether you're cruising at high speeds or navigating through rough seas, our trim tabs provide the performance and durability you need to keep your boat running smoothly.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

Download Brochure (PDF)
