Lenco 102XD Extreme Duty Actuator - 12V - 4-1/4" Stroke

The 102 XD Actuator is a high-performance electric actuator designed specifically for marine and boating applications. Engineered to provide reliable and instant response, this 12-volt actuator ensures smooth and efficient operation of your trolling tab systems and OEM components.

Product Overview

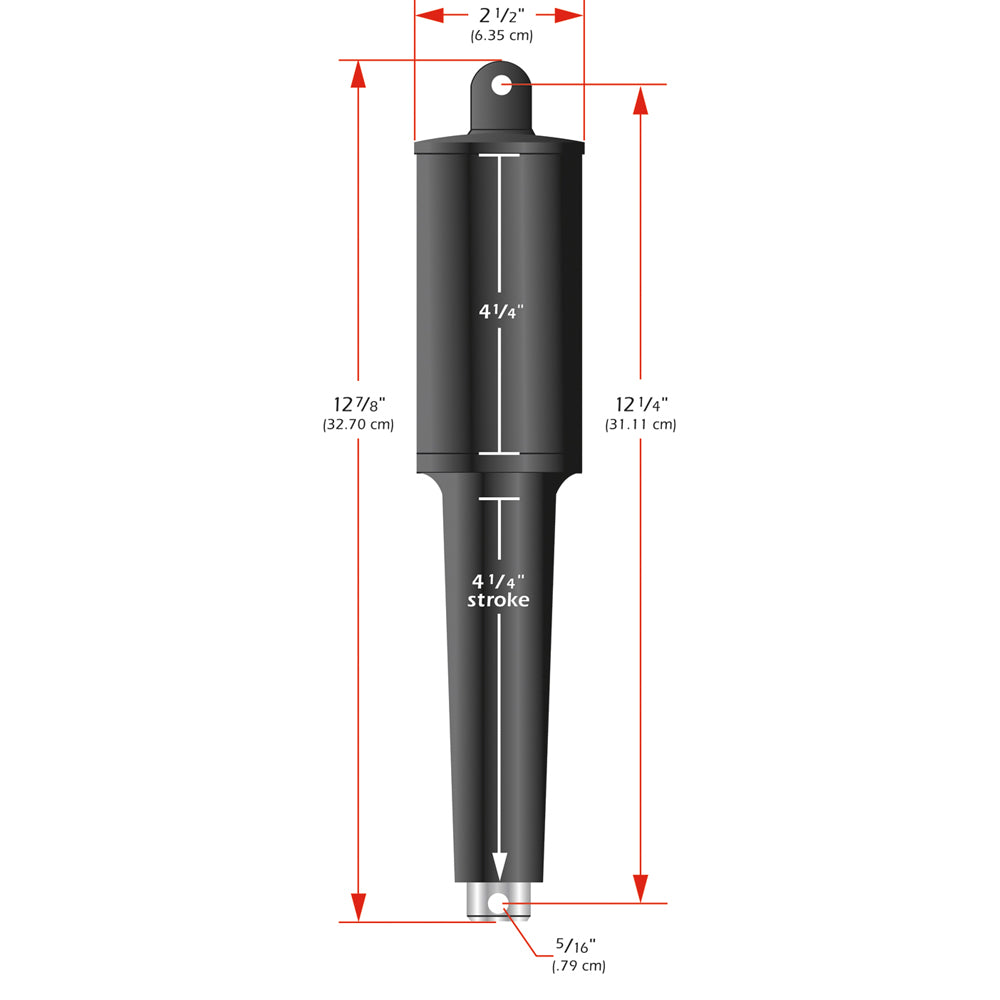

The 102 XD Actuator features a robust 4.25-inch stroke and boasts an overall length of 13 inches from tip to tip. Crafted from high-impact, UV-resistant glass fiber-filled nylon, this actuator is built to withstand the harsh marine environment. The structure is reinforced with 316 super buff stainless steel tubing, ensuring durability and longevity even in saltwater conditions.

Key Specifications

Specification	Details
Voltage	12 Volt
Stroke	4.25 inches
Overall Length	13 inches (tip to tip)
Material	High-impact glass fiber-filled, UV-resistant nylon with 316 stainless steel tubing
Mounting Hardware	Included (5/16" mounting hardware)
Cable Length	6 feet

Advanced Features

• Anti-Extrusion Ring (AXR) Seal Stabilization System: Newly implemented design ensures a more reliable seal.
• Enhanced Top Cap and Mounting Clevis Design: Provides increased strength and stability.
• Improved Pressure-Tight Torx Screws: Better resistance against pressure-related wear.
• Integrated Wiper Seal at Actuator Base: Prevents debris ingress and enhances longevity.
• Molded-In Brass Thrust Bearing: Supplies smooth operation under heavy loads.
• Thicker and Stronger Motor Housing Wall: Ensures durability in demanding marine environments.
• Enhanced O-Ring Design: Delivers a more consistent and leak-proof seal.
• Over-Molded Cable: Provides a stronger, tighter seal to prevent water intrusion.
• Upper Mounting Bracket with Gland Seal: Ensures secure and watertight mounting.

Performance Advantages

• Reliable Ballscrew Design: Lenco's ballscrew mechanism is twice as powerful and more reliable than typical hydraulic systems.
• High-Torque Actuator Motor: Capable of pushing up to 500 pounds with ease.
• Waterproof Connections: Utilizes "Plug & Play" Deutsch connectors to eliminate potential water intrusion.
• 12 Volt Operation: Compatible with standard marine electrical systems.
• Complete Mounting Hardware: Includes 5/16" mounting hardware for easy installation.
• Long-Length Cable: Comes with a 6-foot cable to accommodate various installations.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Returns Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

Download the Quick Guide (PDF)
