Lenco 102 Series Standard Actuator - 24V - 4-1/4" Stroke

The 102 Series Standard Actuator is a reliable and high-performance solution tailored for marine applications, especially compatible with Trolling Tab systems sold before 2000 and various OEM integrations. Engineered with durability and precision in mind, this 24V actuator delivers a robust 4-1/4" stroke within a compact 14-inch overall length, ensuring seamless operation for your boating needs.

Product Specifications

Specification	Details
Voltage	24 Volt
Stroke Length	4-1/4 inches

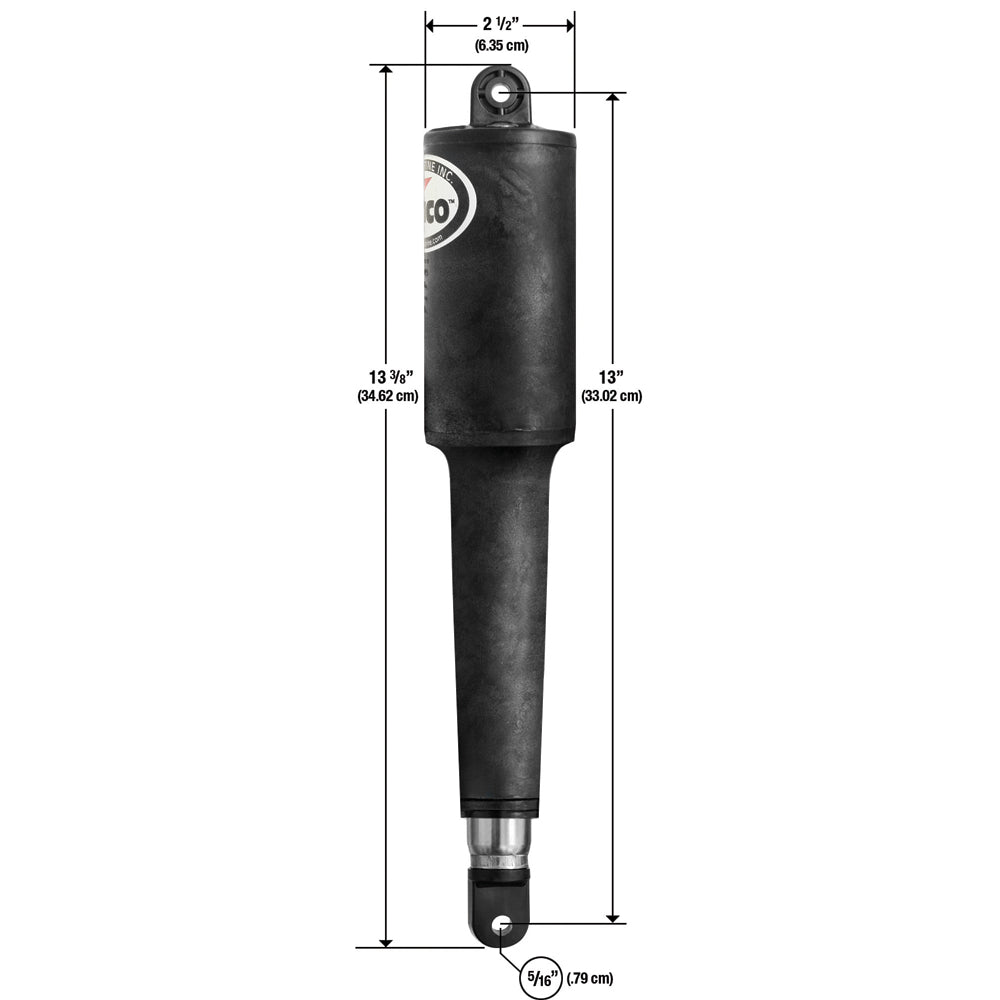

Overall Length	14 inches (tip to tip)
Mounting Hardware	5/16" included
Cable Length	6 feet
Material	High impact glass fiber filled, UV-resistant nylon with 316 super buff stainless steel tubing

Enhanced Features

• Advanced Sealing: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system ensures longevity and reliability.
• Robust Design: Features a stronger top cap and mounting clevis for enhanced durability under marine conditions.
• Secure Fastening: Improved pressure-tight Torx screws provide a secure and reliable assembly.
• Integrated Wiper Seal: Located at the actuator base to prevent water ingress and maintain performance.
• Molded-in Brass Thrust Bearing: Offers superior load handling and operational stability.
• Reinforced Motor Housing: Thicker and stronger walls protect the motor from harsh marine environments.
• Reliable Sealing: Enhanced O-Ring design ensures a more consistent and leak-proof seal.
• Durable Cable: Over-molded cable provides a stronger, tighter seal against water and debris.
• Secure Mounting: Upper mounting bracket equipped with a gland seal for added protection.

Performance Advantages

• Superior Ballscrew Design: Lenco's innovative ballscrew mechanism is more reliable and twice as powerful compared to standard hydraulic systems.
• High-Torque Motor: Capable of effortlessly pushing up to 500 pounds, ensuring smooth and efficient operation.
• Waterproof Connections: Utilizes "Plug & Play" Deutsch connectors to eliminate the risk of water intrusion, enhancing longevity.

Additional Information

• Voltage: 24 Volt
• Mounting Hardware: 5/16" included
• Cable Length: 6 feet

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Download the Quick Guide (PDF)
