Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware

The 101XDS Short Extreme Duty Actuator is the perfect solution for marine applications where space is limited without compromising on performance. Designed specifically for boating and marine use, this compact 12V actuator delivers a powerful 2-1/4" stroke within an exceptionally short overall length of 10^7/8 inches. Constructed from high-impact glass fiber-filled, UV-resistant nylon and featuring 316 super buff stainless steel tubing, the 101XDS ensures durability and reliability in harsh marine environments.

Key Features

• Compact Design: The shortest actuator available, ideal for tight spaces on boats and marine equipment.
• High-Torque Motor: Capable of pushing up to 500 pounds, offering superior performance compared to standard hydraulic systems.
• Reliable Connections: Equipped with waterproof "Plug & Play" Deutsch connectors to prevent water intrusion and ensure consistent operation.
• 12 Volt Operation: Compatible with standard marine electrical systems for easy integration.
• Durable Mounting Hardware: Includes 5/16" mounting hardware and a 6-foot cable for versatile installation options.
• Enhanced Longevity: Made from UV-resistant materials to withstand prolonged exposure to sunlight and saltwater.

Specifications

Stroke Length	2-1/4 inches

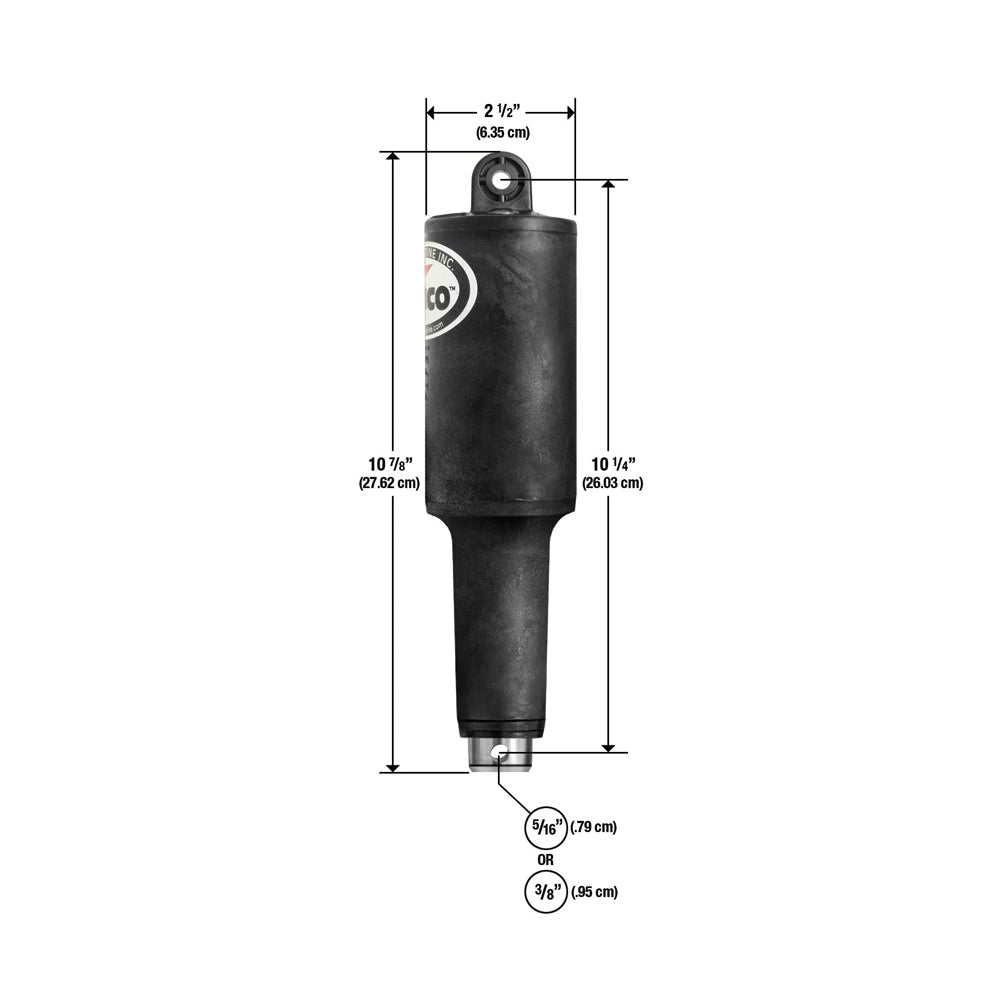

Overall Length	107/8 inches (tip to tip)
Voltage	12V
Mounting Hardware	5/16" included
Cable Length	6 feet
Material	High-impact glass fiber-filled, UV-resistant nylon with 316 super buff stainless steel tubing

Advanced Features

• Anti Extrusion Ring (AXR) Seal Stabilization System: Newly implemented for enhanced seal integrity.
• Reinforced Construction: Stronger top cap and mounting clevis design provide added durability.
• Pressure-Tight Torx Screws: Improved screws to maintain pressure-tight seals.
• Integrated Wiper Seal: Prevents contaminants from entering at the actuator base.
• Brass Thrust Bearing: Molded-in for reliable performance under heavy loads.
• Enhanced O-Rings: Improved design ensures a more consistent and reliable seal.
• Over-Molded Cable: Provides a stronger and tighter seal to prevent water ingress.
• Upper Mounting Bracket with Gland Seal: Ensures secure and waterproof mounting.
• Thicker Motor Housing: Stronger walls enhance durability and longevity.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Download the Quick Guide (PDF)
