Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/3/8" Hardware

The 101XDS Short Extreme Duty Actuator is engineered for marine and boating applications, providing reliable and powerful performance in limited space environments. Crafted from high-impact glass fiber filled, ultraviolet-resistant nylon, this 12V electric actuator ensures durability and longevity even in harsh marine conditions.

Product Overview

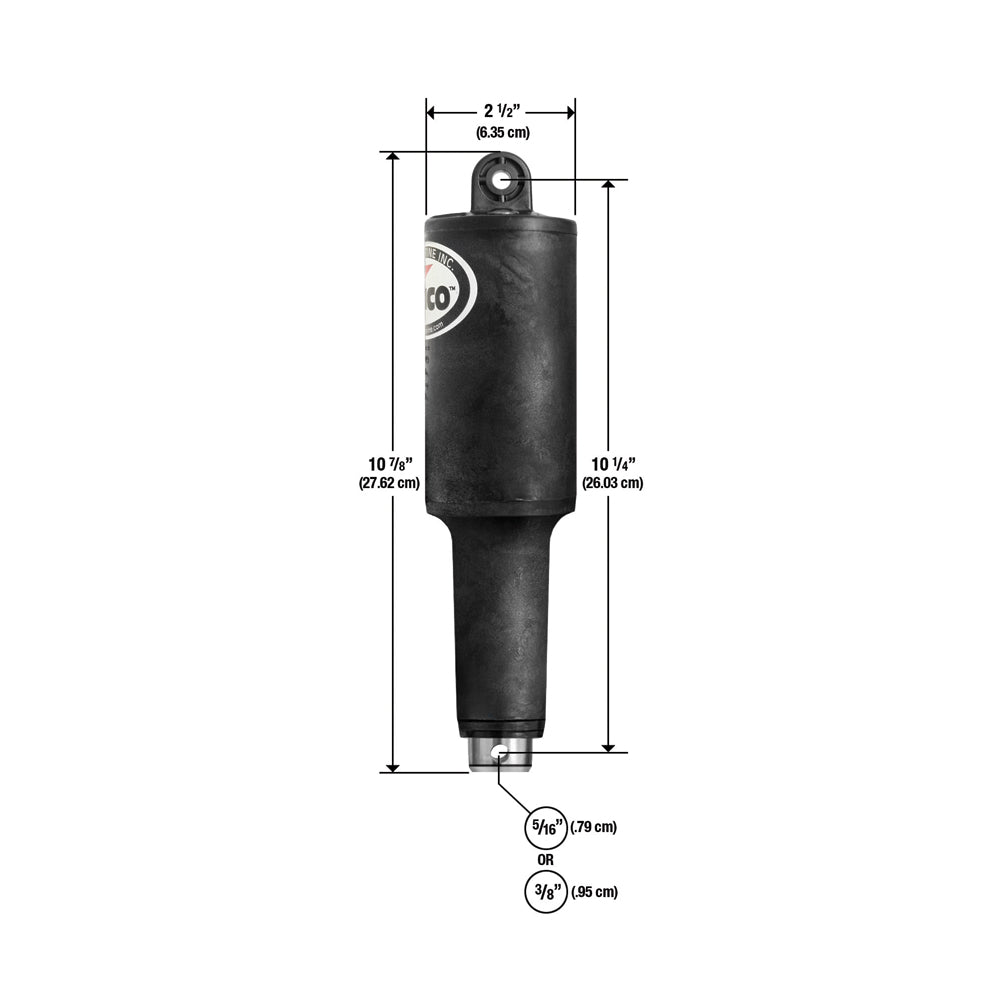

The 101XDS Actuator stands out as the shortest actuator available on the market, featuring a 2.25-inch stroke and an overall length of 10^7/8 inches. Its instant response mechanism makes it ideal for OEM-specific kits and applications where space is at a premium. Constructed with 316 super buff stainless steel tubing, this actuator is built to withstand the demanding environments of marine and boating uses.

Specifications

Feature	Description
Stroke Length	2-1/4 inches
Overall Length	107/8 inches
Voltage	12V
Mounting Hardware	Included, 3/8" mounting hardware
Cable Length	6 feet
Material	High-impact glass fiber filled, UV-resistant nylon
Stainless Steel Tubing	316 Super Buff

Enhanced Features

• Anti Extrusion Ring (AXR): Newly implemented seal stabilization system for enhanced durability.
• Top Cap & Mounting Clevis: Stronger design for improved stability and performance.
• Pressure-Tight Torx Screws: Improved screws to ensure a secure and leak-free installation.
• Integrated Wiper Seal: Positioned at the actuator base to prevent water ingress.
• Brass Thrust Bearing: Molded-in design for reliable operation under pressure.
• Motor Housing: Thicker and stronger walls to withstand harsh marine environments.
• O-Ring Design: Enhanced for more consistent and reliable sealing.
• Over-Molded Cable: Provides a stronger, tighter seal against water and corrosive elements.
• Upper Mounting Bracket: Equipped with a gland seal for added protection.

Performance Advantages

• Reliable Ballscrew Design: Lenco's innovative design is more reliable and twice as powerful as typical hydraulic systems.
• High-Torque Motor: Capable of pushing up to 500 pounds, ensuring robust performance for demanding applications.
• Waterproof Connections: Features "Plug & Play" Deutsch connectors to eliminate the possibility of water intrusion.
• 12 Volt Operation: Suitable for standard marine electrical systems.
• Included Mounting Hardware: 3/8" hardware ensures easy and secure installation.
• Extended Cable: 6-foot cable provides flexibility in installation.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Returns & Warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

Quick Guide (PDF)
