Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke w/Hardware

The 101 XD Actuator is a robust and reliable solution designed specifically for marine and boating applications. Engineered to deliver instant response and exceptional performance, this 12-volt actuator ensures smooth and efficient operation of high-demand marine equipment, making it an essential component for any serious boater.

Product Details

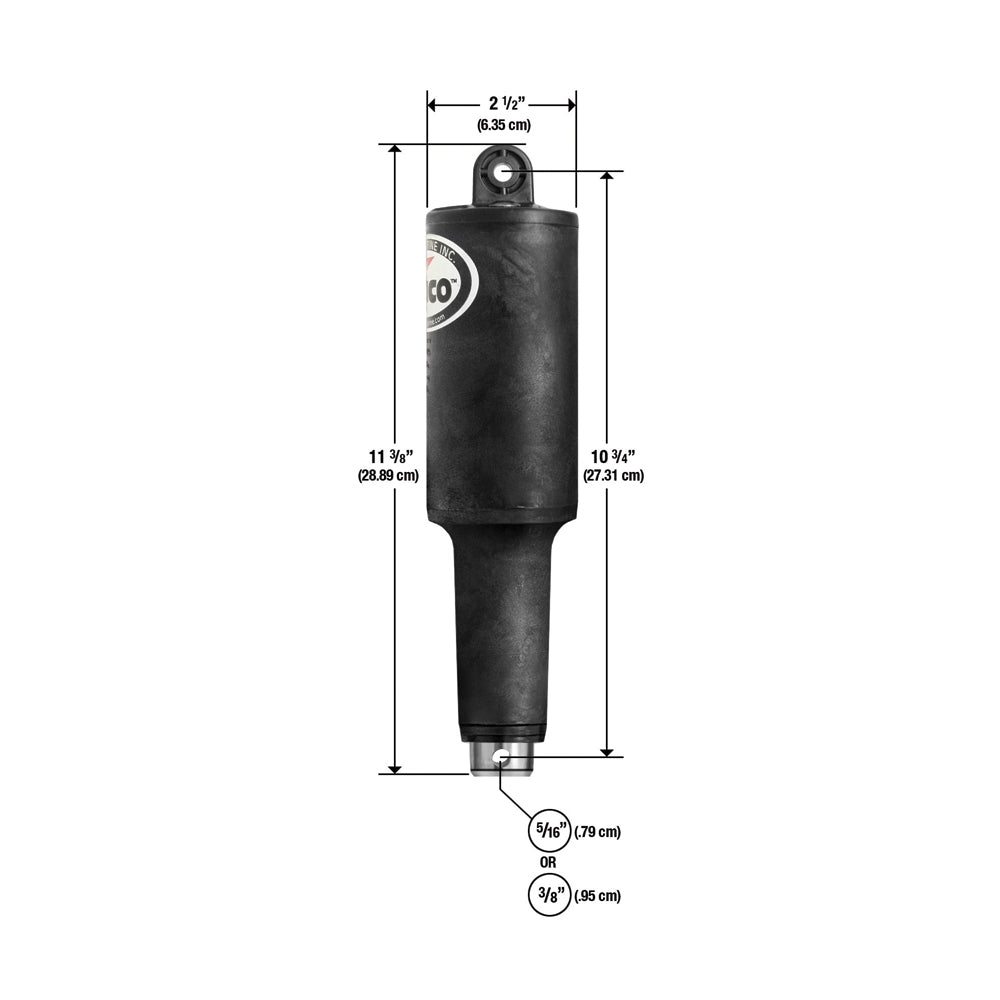

The 101 XD Actuator is optimized for use with HD, XD, High Performance, and Super Strong tabs, providing a versatile solution for various marine applications. With a stroke length of 2.25 inches and an overall length of 11^3/8 inches, this actuator is compact yet powerful. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon and featuring 316 super buff stainless steel tubing, it is built to withstand the harsh marine environment.

Specifications

Specification	Details
Voltage	12 Volt
Stroke Length	2-1/4 inches
Overall Length	113/8 inches
Material	High-impact glass fiber filled, UV-resistant nylon with 316 stainless steel tubing
Mounting Hardware	Included (5/16" upper and 3/8" lower)
Cable Length	6 feet

Enhanced Features

• Advanced Anti-Extrusion Ring (AXR) Seal: Newly implemented seal stabilization system ensures longevity and reliability.
• Durable Construction: Featuring a stronger top cap and mounting clevis design for enhanced durability in marine environments.
• Improved Fasteners: Pressure-tight Torx screws provide a secure and lasting assembly.
• Integrated Wiper Seal: Located at the actuator base to prevent water ingress and protect internal components.
• Brass Thrust Bearing: Molded-in design ensures smooth and consistent operation.
• Reinforced Motor Housing: Thicker walls offer increased protection against the harsh marine elements.
• Optimized O-Ring Design: Ensures a more consistent and reliable seal.
• Over-Molded Cable: Provides a stronger and tighter seal to prevent corrosion and wear.
• Secure Mounting Bracket: Equipped with a gland seal for additional protection against water intrusion.

Why Choose the 101 XD Actuator?

• Superior Ballscrew Design: Lenco's innovative ballscrew mechanism is twice as powerful and more reliable than typical hydraulic systems, ensuring smooth operation.
• High-Torque Motor: Capable of effortlessly pushing up to 500 pounds, making it ideal for demanding marine applications.
• Waterproof Connections: "Plug & Play" Deutsch connectors eliminate the risk of water intrusion, enhancing the longevity of the actuator.
• Versatile Mounting: Comes with both 5/16" upper and 3/8" lower mounting hardware to fit a variety of setups.
• Extended Cable Length: 6-foot cable provides flexibility in installation and positioning.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
