Lenco 101 Standard Actuator - 12V - 2-1/4" Stroke

The 101 Actuator is a reliable and high-performance 12-volt electric actuator designed specifically for marine and boating applications. With a robust 2-1/4 inch stroke and durable construction, it ensures smooth and efficient operation of various boat systems.

Product Overview

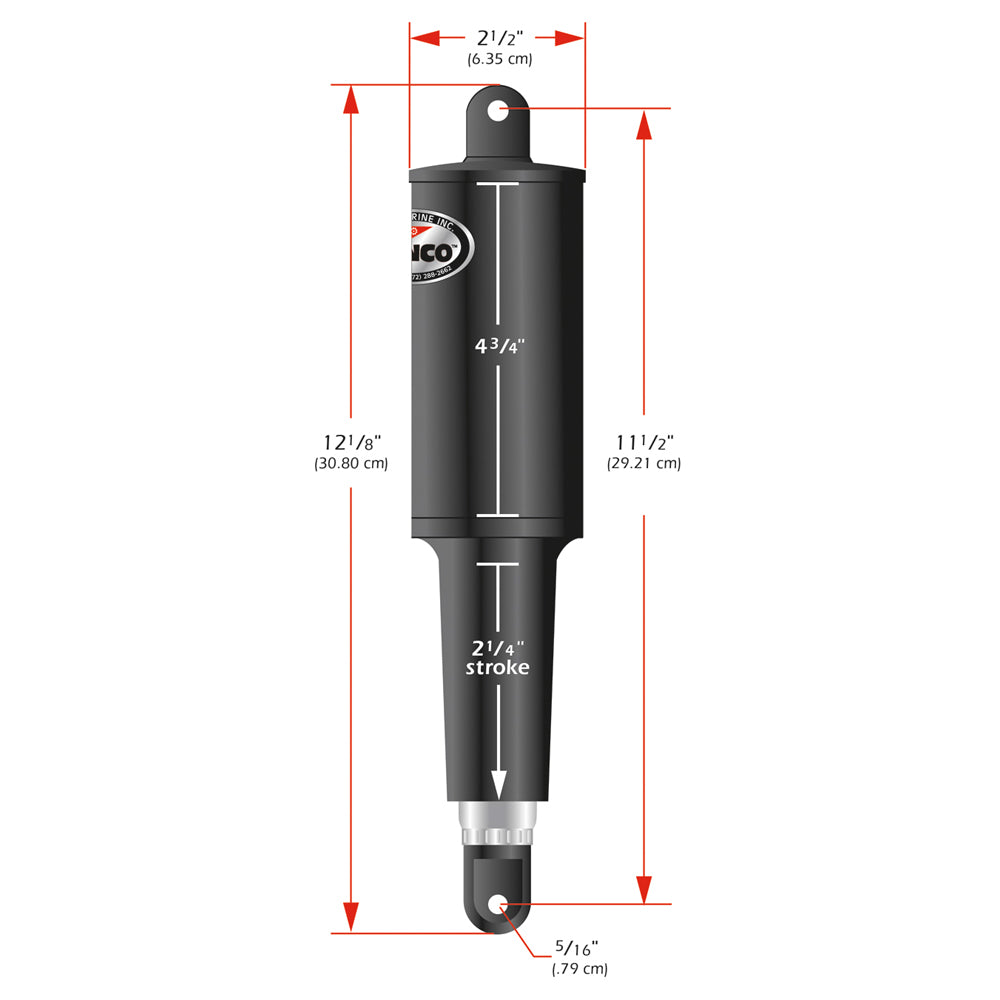

The 101 Actuator is integral to all Standard, Edge Mount, and Standard Performance kits. Measuring 12.5 inches from tip to top, this instant response actuator is crafted from high-impact, glass fiber-filled, ultraviolet-resistant nylon. It features 316 super buff stainless steel tubing, ensuring longevity and resistance to harsh marine environments.

Specifications

Feature	Description
Voltage	12 Volt
Stroke Length	2.25 inches
Overall Length	12.5 inches (tip to top)
Mounting Hardware	5/16" mounting hardware included
Cable Length	6 feet
Material	High impact glass fiber filled, UV-resistant nylon with 316 stainless steel tubing

Advanced Features

• Anti Extrusion Ring (AXR): Newly implemented AXR seal stabilization system for enhanced durability.
• Enhanced Design: Stronger top cap and mounting clevis design for reliable mounting.
• Secure Fastening: Improved pressure-tight Torx screws prevent leaks and ensure secure assembly.
• Integrated Wiper Seal: Located at the actuator base to keep contaminants out.
• Brass Thrust Bearing: Molded-in design for smooth and consistent operation.
• Robust Motor Housing: Thicker and stronger walls provide better protection against marine elements.
• Reliable Sealing: Improved O-Ring design for a more consistent and leak-proof seal.
• Durable Cable: Over-molded cable offers a stronger, tighter seal against water intrusion.
• Gland Seal: Upper mounting bracket includes a gland seal for added protection.

Key Benefits for Marine Applications

• Superior Performance: Lenco's ballscrew design delivers twice the power and reliability compared to typical hydraulic systems.
• High-Torque Motor: Capable of pushing up to 500 pounds with ease, ensuring smooth operation of heavy boat components.
• Waterproof Connections: "Plug & Play" Deutsch connectors eliminate the risk of water intrusion, enhancing durability in marine environments.
• Easy Installation: Comes with all necessary mounting hardware and a 6-foot cable for flexible installation options.
• Energy Efficient: Operates on a standard 12-volt marine electrical system.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
