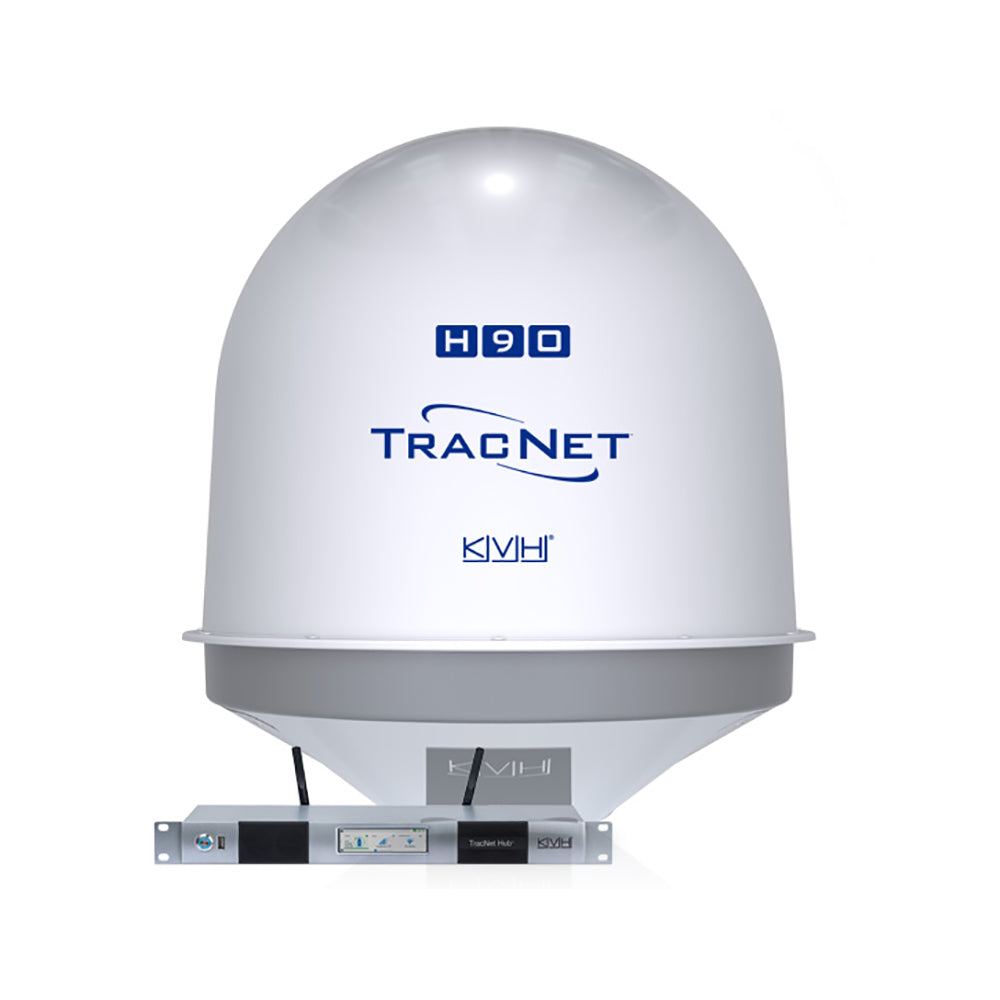

KVH TracNet H90 Ku-Band Antenna w/TracNet Hub

Enhance your marine connectivity with the TracNet™ H90 Ku-Band Antenna paired with the TracNet Hub. Designed specifically for vessels 90+ feet in length, this state-of-the-art antenna system ensures you stay connected no matter where your journey takes you.

Unmatched Performance with KVH ONE™ Hybrid Network

The TracNet™ H90 leverages the powerful KVH ONE™ hybrid network to deliver seamless and reliable connectivity. Experience extensive global coverage with:

• Satellite Connectivity: Access to Intelsat’s HTS Ku-band satellite network, covering over 276 million square kilometers (106+ million square miles).
• Cellular Coverage: Reliable cellular connections in more than 150 countries, maintaining connectivity up to 32+ kilometers (20+ miles) offshore.
• Shore-Based Wi-Fi Integration: Effortlessly connect with onshore Wi-Fi networks for enhanced internet access.

Key Features for Optimal Marine Connectivity

• Intelligent Network Switching: Automatically selects the most efficient connectivity option based on cost, data quality, and current conditions.
• Versatile Hybrid Connectivity: Combines VSAT, cellular, and Wi-Fi options for uninterrupted internet access.
• Advanced Stabilization: Three-axis stabilization with skew control ensures consistent signal reception even in rough seas.
• Easy Installation: Simplified setup with a single coaxial cable and AC-powered Below Deck Units (BDUs).
• Robust Cybersecurity: Built-in terminal and network security with options for enterprise-level protection to safeguard your data.
• Lightweight Design: Up to 32% lighter than competing 1-meter antenna systems, reducing installation and maintenance efforts.
• Precision Engineering: High-precision carbon fiber dish combined with KVH’s exclusive RingFire™ technology for exceptional signal reception.

Technical Specifications

Specification	Details
Dome Diameter	42.5" (1.1m)
Dome Weight	189 lbs (86 kg)
Maximum Download/Upload Speeds	20 Mbps / 3 Mbps
Elevation/Azimuth Range	23° to 119° with a commercial-grade rotary joint allowing unlimited azimuth rotation
Operating Temperature Range	-22°F to 131°F (-30°C to 55°C)
Power Supply	AC power provided by the TracNet Hub or Hub+
Connection	Single coaxial cable

*Subscription required

Why Choose TracNet™ H90?

The TracNet™ H90 Ku-Band Antenna offers a blend of cutting-edge technology and robust design tailored for the marine environment. Its lightweight carbon fiber construction not only enhances performance but also simplifies installation and maintenance. With intelligent network management and comprehensive coverage, you can trust the TracNet™ H90 to keep you connected reliably, whether navigating coastal waters or venturing into the open sea.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)

Watch Our Product in Action
