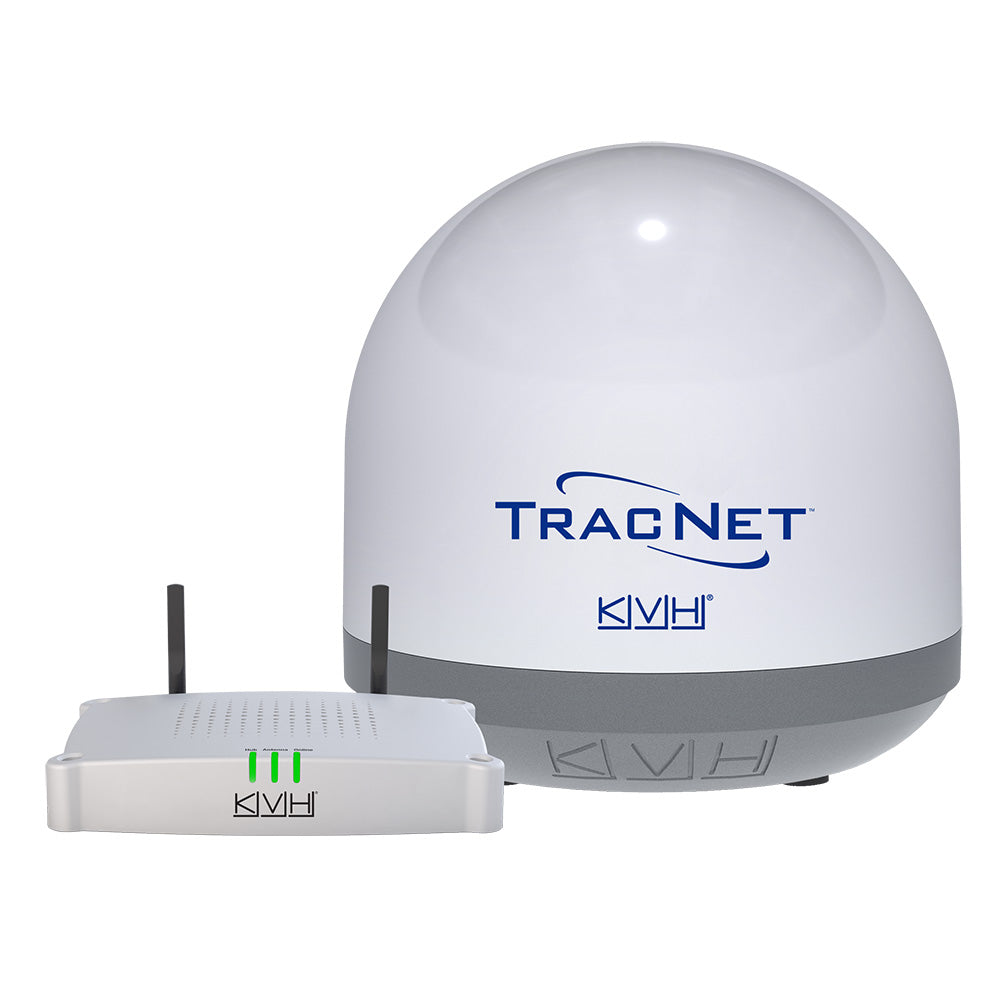

KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub

Enhance your marine connectivity with the TracNet Coastal Pro 5G/WiFi Compact Terminal and TracNet Hub. Designed for boaters seeking reliable and high-speed internet access, this marine-grade system ensures seamless streaming, communication, and navigation while on the water. Compatible with 5G and LTE services worldwide, the Coastal Pro delivers a home-like internet experience wherever you sail.

Key Features

• Advanced Connectivity: Utilize 5G/LTE and WAN WiFi through a compact radome for robust and flexible internet access.
• Smart Hybrid Switching: Seamlessly switch between cellular and WiFi networks with an integrated intelligent system.
• Extended Coverage: High-gain 5G cellular antennas provide superior offshore coverage, ensuring you stay connected even far from shore.
• Easy Installation: Single-cable, DC-powered maritime design simplifies installation with the included TracNet Hub.
• High-Speed Data: Enjoy data speeds up to 300+ Mbps and strong WiFi reception in marinas and ports for uninterrupted connectivity.
• Affordable Plans: Data plans start as low as $1/GB (prices subject to change), offering cost-effective solutions for your connectivity needs.
• Global Reach: Stay connected in 135 countries via the KVH ONE network, leveraging exclusive KVH Fusion eSIM technology with flexible month-to-month data plans and the option to bring your own SIM.
• Integrated Router: Manage your connections with an onboard router that intelligently switches among 5G, LTE, and WiFi.
• Compatibility: Complements existing onboard communications systems like Starlink, VSAT, and OneWeb for a comprehensive connectivity setup.
• Marine-Grade Durability: Compact and rugged antenna designed to withstand harsh marine environments.
• Efficient Power Design: Single-cable antenna installation with an ultra-efficient DC power system ensures reliable performance.
• Hybrid Hub Functionality: Automatically switch between 5G, WiFi, and up to two additional third-party antennas (e.g., Starlink, OpenNet).
• Advanced Network Management: Compatible with the CommBox Edge Communications Gateway for enhanced bandwidth management, channel balancing, and advanced bonding.
• Dual WiFi Access: Belowdeck WiFi 5 Access Point supports simultaneous WAN and LAN connections for versatile network setups.
• Robust Routing Capabilities: Equipped with a 4-port ethernet router for multiple wired connections.
• Remote SIM Access: Supports up to two user-supplied SIM cards with easy below-deck access for added flexibility.

Technical Specifications

Specification	Details
Dome Dimensions	13.5" (Dia.) x 13.1" (H)
Dome Weight	8 lbs
Dome Operating Temperature	-25°C to +55°C (-13°F to +131°F)
Dome Survival Temperature	-30°C to +70°C (-22°F to +158°F)
Below Deck Unit (BDU) Ethernet Ports	4, configurable as Starlink WAN, Backup WAN, or User WAN
Power Input	10-30 Volts DC (direct wire), with optional AC Power Supply
Power Consumption	16W (Nominal) / 22W (Max)
BDU Operating Temperature	-15°C to +55°C (+5°F to +131°F)
BDU Survival Temperature	-25°C to +70°C (-13°F to +158°F)
Intelligent Connection Switching	Supports 4 WANs: 4 Cell/WAN, Wi-Fi, Starlink, Backup WAN

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
