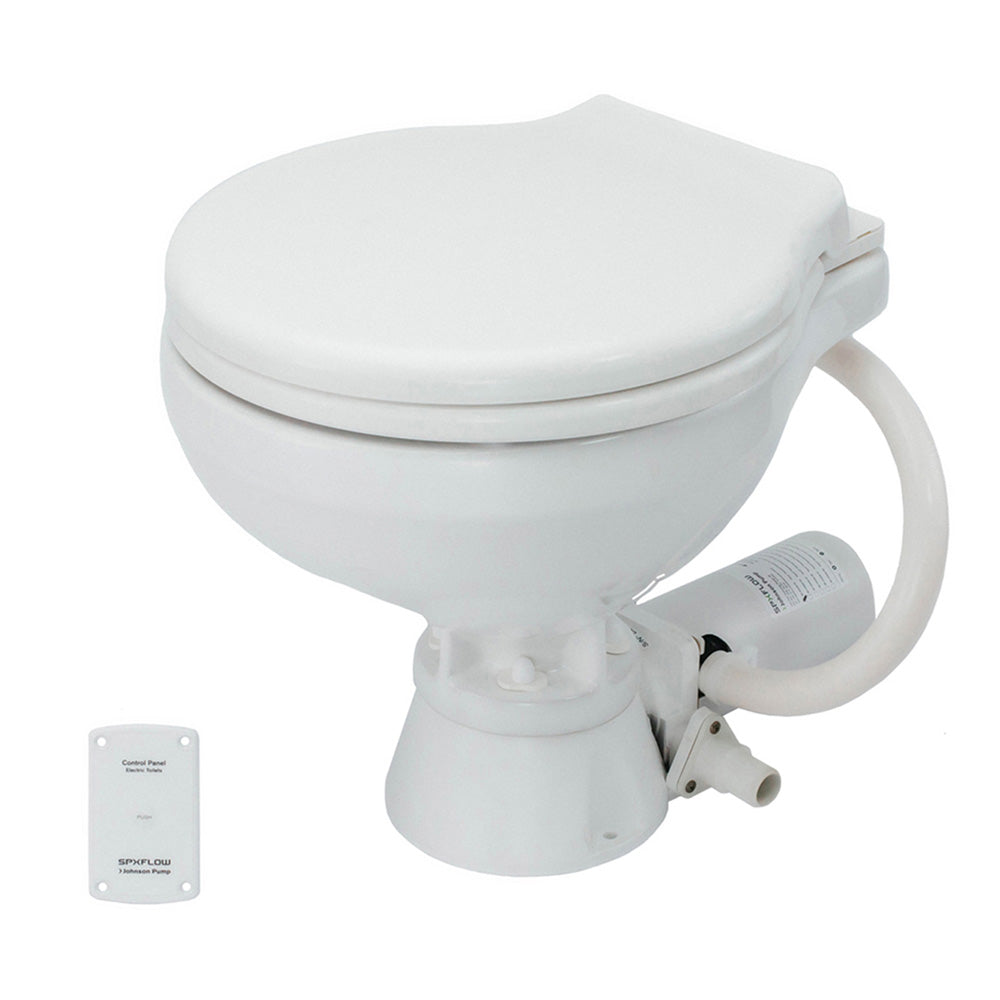

Johnson Pump Standard Electric Compact Macerator Style 12V

The Johnson Pump Aqua Marine Toilet is expertly engineered to cater to a wide range of marine and boating lavatory installations. Combining durability, efficiency, and elegant design, this 12V electric compact macerator-style toilet ensures a seamless and hygienic experience onboard.

Exceptional Design and Durability

Crafted from high-quality white vitreous porcelain, the Aqua Marine Toilet boasts a sleek and clean appearance that complements any marine interior. Its corrosion-resistant components ensure longevity, making it a reliable choice for both OEM and replacement installations. The robust wooden seat with a durable baked enamel finish adds to the toilet's aesthetic appeal and durability.

Advanced Flushing Mechanism

The Aqua Marine Toilet utilizes a two-step flushing process for optimal cleanliness and efficiency. Initially, the bowl is filled with clear water, followed by the waste flush. This method ensures that the bowl remains empty and clean, preventing any liquid from sloshing around. Additionally, the design incorporates automatic back-flow prevention, enhancing the toilet's reliability.

Quiet and Efficient Operation

Equipped with a self-priming 12V Aqua Jet diaphragm pump, the toilet operates whisper-quietly, ensuring a peaceful onboard environment. The low water consumption of 2-2.5 liters per flush maximizes the holding tank capacity, making it an economical and eco-friendly choice for marine applications.

Versatile Installation Options

The Johnson Pump Aqua Marine Toilet is designed for flexibility, accommodating almost any hull and bulkhead configuration. It is available in standard, bevelled, or low profiles, and can be installed above or below the waterline. Whether you need a compact or comfort-sized bowl, this toilet can be tailored to fit your specific layout and mounting position.

Key Features

• Whisper quiet operation
• Self-priming 12V Aqua Jet pump
• Single push-button control panel
• Elegant and clean lines
• Hygienic, easy-to-clean vitreous china bowl and exterior surfaces
• Robust wooden seat with baked enamel finish
• Low water consumption (2-2.5 l/flush)
• Versatile plumbing connection options
• Automatic back-flow prevention
• Available in comfort or compact bowl sizes
• Designed for various onboard mounting positions
• Suitable for installation above or below the waterline
• Compatible with OEM or replacement setups
• Corrosion-resistant materials throughout
• Long service life with minimal maintenance
• Quick-connect hose or threaded connectors
• Complies with ISO 8846, ignition protection, and EN 55014 EMC standards

Specifications

Attribute	Details
Color	White
Inlet Size	3/4"
Operation Method	Electric
Outlet Size	1-1/2"
Volts	12V
Type	Toilet
Size	Compact
Box Dimensions	16"H x 17"W x 19"L
Weight	29.3 lbs
UPC	7330717011475

Additional Resources

Owner's Manual (PDF)

Product Demonstrations
