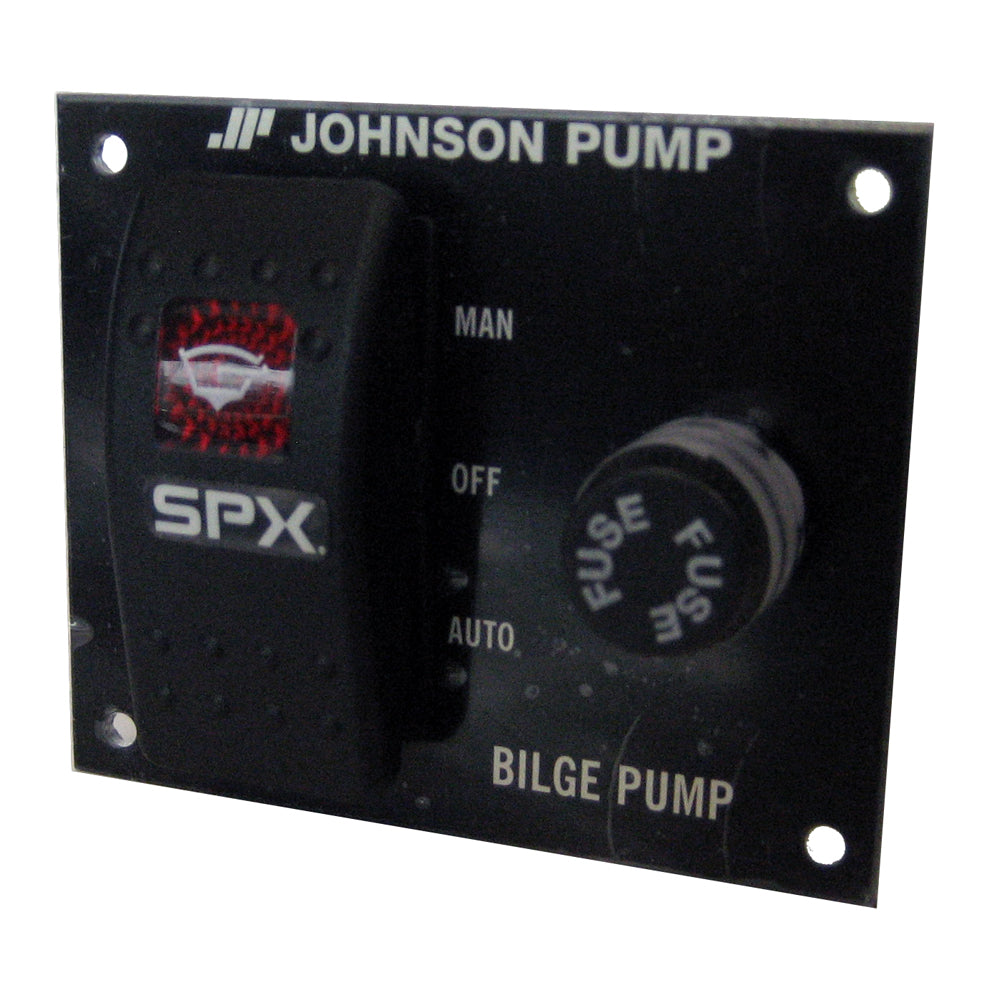

Johnson Pump 3 Way Bilge Control - 12V

The 3 Way Bilge Pump Control is a vital component for ensuring the safety and efficiency of your vessel. Designed specifically for marine applications, this switch panel offers seamless control over your bilge pumping system, allowing you to manage water removal both manually and automatically with ease.

Features

• Manual and Automatic Control: Effortlessly switch between manual operation and automatic bilge pumping to suit your boating needs.
• Integrated Automation: Works in tandem with automatic bilge switches or electronic float switches for reliable water management.
• Durable Matte Black Finish: Adds a sleek appearance to your switch panel while resisting corrosion and wear in marine environments.
• Built-In Protection: Features an integrated fuse holder and an operating light to enhance safety and provide visual indicators of pump activity.
• Compact Dimensions: Measures 73 mm (2.99") x 60 mm (2.17") with a depth of 40 mm (1.57"), making it easy to install without taking up excessive space.
• Included Fuses: Comes with fuses, simplifying the installation process and ensuring immediate readiness.

Specifications

Voltage	12V
Type	Three-Way Switches
Dimensions	73 mm (2.99") x 60 mm (2.17") x 40 mm (1.57")
Weight	0.2 lbs
UPC	729321820448

Installation Guide

Installing the 3 Way Bilge Pump Control is straightforward. Mount the switch panel in a convenient location on your vessel, connect it to your existing bilge pump system, and configure the automatic settings using your bilge switches or an electronic float switch. The integrated operating light provides a clear indication of pump status, ensuring you are always informed about your bilge system's operation.

Additional Resources

For detailed installation instructions and operational guidelines, please refer to the Owner's Manual (PDF).
