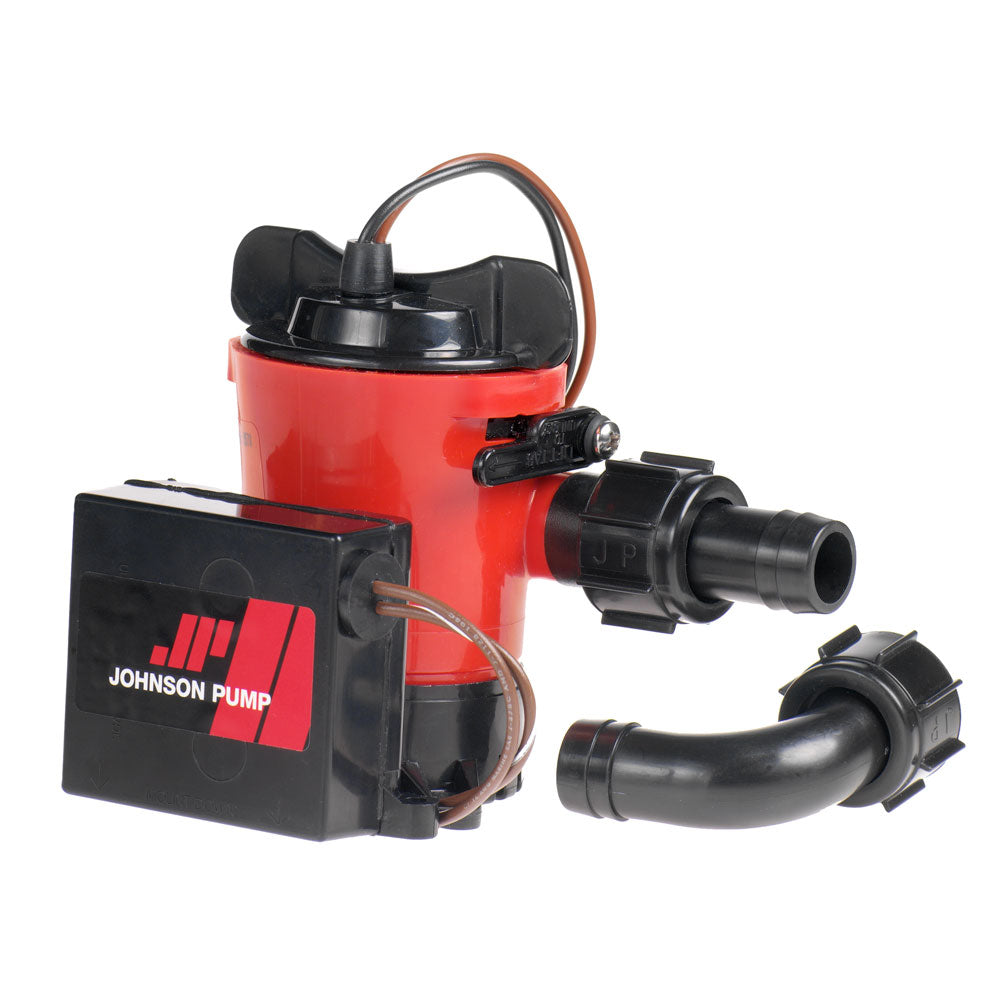

Johnson Pump 1000GPH Ultima Combo Pump 3/4" Hose Dura Port

Ensure your marine vessel stays dry and safe with the 1000 GPH Ultima Combo Automatic Submersible Bilge Pump 12V. Designed for reliability and efficiency, this bilge pump automatically detects and removes unwanted water, providing peace of mind during your boating adventures.

Key Features

• Equipped with the advanced Ultima Switch™ for seamless automatic operation
• Available in multiple capacities: 500 GPH, 750 GPH, 1000 GPH, and 1250 GPH
• Highly energy-efficient design reduces power consumption
• Water-cooled motor ensures extended service life
• Compact all-in-one motor and impeller unit with a durable stainless steel (SS2343) shaft
• Tool-free maintenance allows easy access without full disassembly
• Featuring Dura-Port discharge ports on 500 GPH, 750 GPH, and 1000 GPH models to prevent hose clamp stress cracking
• Includes both straight and 90° smooth elbow Dura-Port fittings along with a removable check valve for versatile installation
• Compliant with ISO 8849 marine standards for superior performance
• Constructed with a robust thermoplastic pump body and a reliable lip seal shaft

Technical Specifications

Specification	Details
Capacity	500 GPH, 750 GPH, 1000 GPH, 1250 GPH
Head	3ft (0.9m) at 13.6V/27.2V
Flow Rate	50 l/min - 800 GPH (3ft head)
Flow Rate	63 l/min - 1000 GPH (straight)
Amperage	3.2 A
Fuse Size	5 A
Voltage	12V
Wire Size	16GA
Hose Size	3/4"
Pump Body Material	Thermoplastic
Shaft Material	Stainless Steel (SS2343)
Shaft Seal	Lip Seal
Dimensions	4.41" (L) x 4.25" (W) x 3.35" (H)
Weight	14.4 oz.
Box Dimensions	4"H x 7"W x 8"L
Box Weight	1.1 lbs
UPC	729321079037

Installation and Maintenance

Installing the Ultima Combo Bilge Pump is straightforward with its user-friendly design. The Dura-Port connections allow for easy hose attachment without the risk of stress cracking, ensuring a secure and leak-free setup. Maintenance is hassle-free as the pump casing remains attached to the boat and hoses, eliminating the need for complete disassembly. Simply access the pump for any required upkeep without tools.

Included Accessories

• Straight Dura-Port discharge fitting
• 90° smooth elbow Dura-Port discharge fitting
• Removable check valve

Certifications

The Ultima Combo Bilge Pump is CE-Approved and meets the international ISO 8849 marine standards, ensuring top-notch quality and reliability for your marine applications.

Resources

Owner's Manual (PDF)
