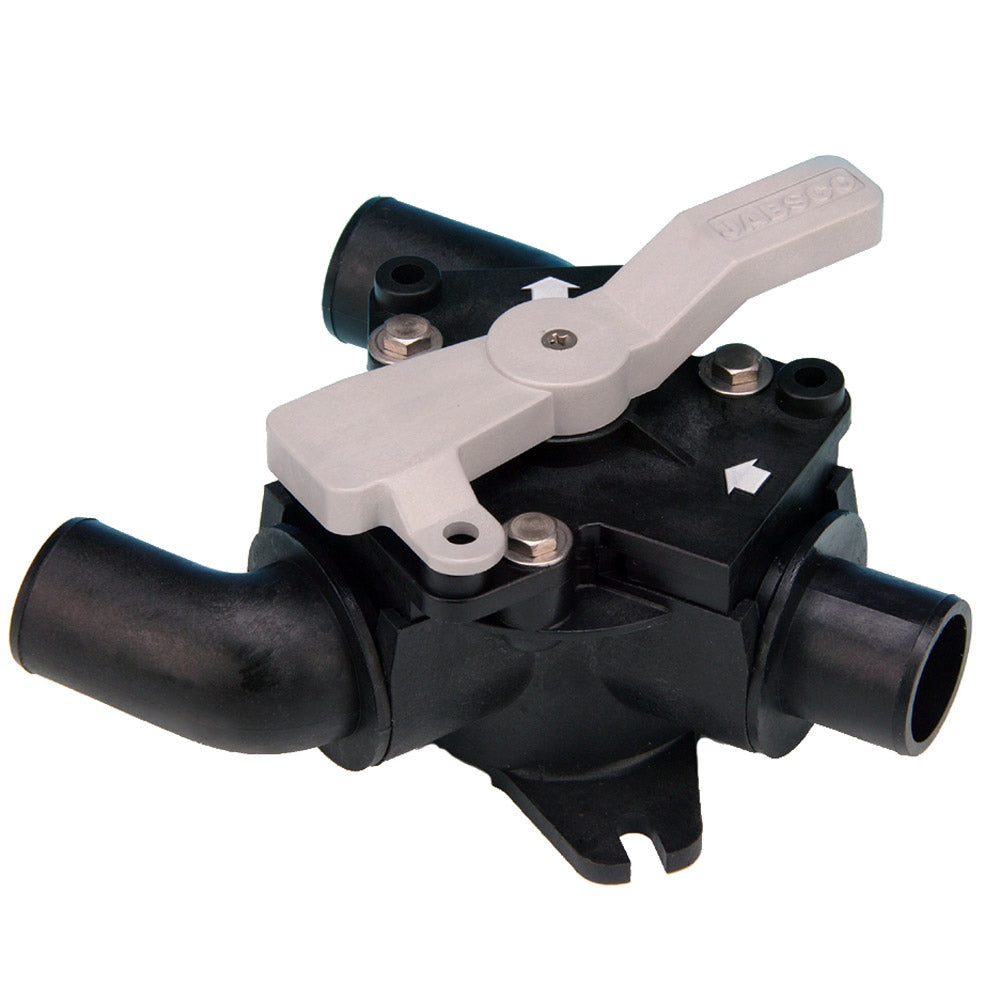

Jabsco Y-Valve

The Jabsco Y-Valve offers unparalleled flexibility for onboard waste management in marine and boating applications. Whether you need to divert waste to an onboard holding tank or discharge it directly overboard where regulations permit, the Y-Valve ensures efficient and compliant operations.

Key Features

• Constructed from chemical and corrosion-resistant polypropylene and stainless steel for durability
• Selector lever can be padlocked (lock not included) and sealed in either position for added security
• Rotatable ports allow discharge plumbing to be routed in parallel, at 90°, opposite directions, or adjusted up/down without disassembly
• Includes both 1-1/2" (38 mm) fitted ports and an extra 1" (25 mm) straight inlet port for versatile connections
• Optional shaft extension enables mounting through bulkheads up to 1-3/4" thick, exposing only the selector handle
• Self-cleaning design ensures trouble-free operation and minimal maintenance
• Molded flow direction indicator arrows for easy monitoring
• Equipped with three sturdy mounting feet for quick and simple installation
• Accessible valve design allows easy maintenance by removing three hex head machine screws, with the top cover and diverter assembly lifting away from the body

Applications

The Jabsco Y-Valve is versatile and can be integrated into various marine systems:

• Waste Management: Divert waste to either an onboard holding tank or directly overboard, adhering to local and Federal regulations.
• Bilge Pumping: Select between two separate bilge pickups from different bilge compartments, enabling the evacuation of two separate areas with a single bilge pump.
• Holding Tank Evacuation: Direct waste from a holding tank to an onboard waste discharge pump for evacuation or to a waste deck plate for removal via a shoreside pump-out facility.

Specifications

Type	Misc
Box Dimensions	5"H x 8"W x 8"L
Weight	1.7 lbs
UPC	671880536462

Compliance and Regulations

Ensure compliance with all local and Federal regulations regarding waste discharge:

• No direct overboard discharge of untreated waste is allowed within three miles of shore.
• Many near shore and inland areas are designated as "No-Discharge Zones," where the discharge of any onboard waste, even treated, is strictly prohibited.
• The Y-Valve accommodates these regulations by allowing the selector handle to be padlocked in the onboard retention mode, ensuring waste is directed to an onboard holding tank.

Installation and Maintenance

Installing the Jabsco Y-Valve is straightforward, thanks to its user-friendly design:

• Mounting is facilitated by three sturdy feet, allowing for quick and simple installation.
• The ability to rotate ports without disassembly simplifies the routing of discharge plumbing.
• Easy access to the valve is provided by removing just three hex head machine screws, enabling the top cover and diverter assembly to lift away from the body for maintenance.

Download the Owner's Manual (PDF)
