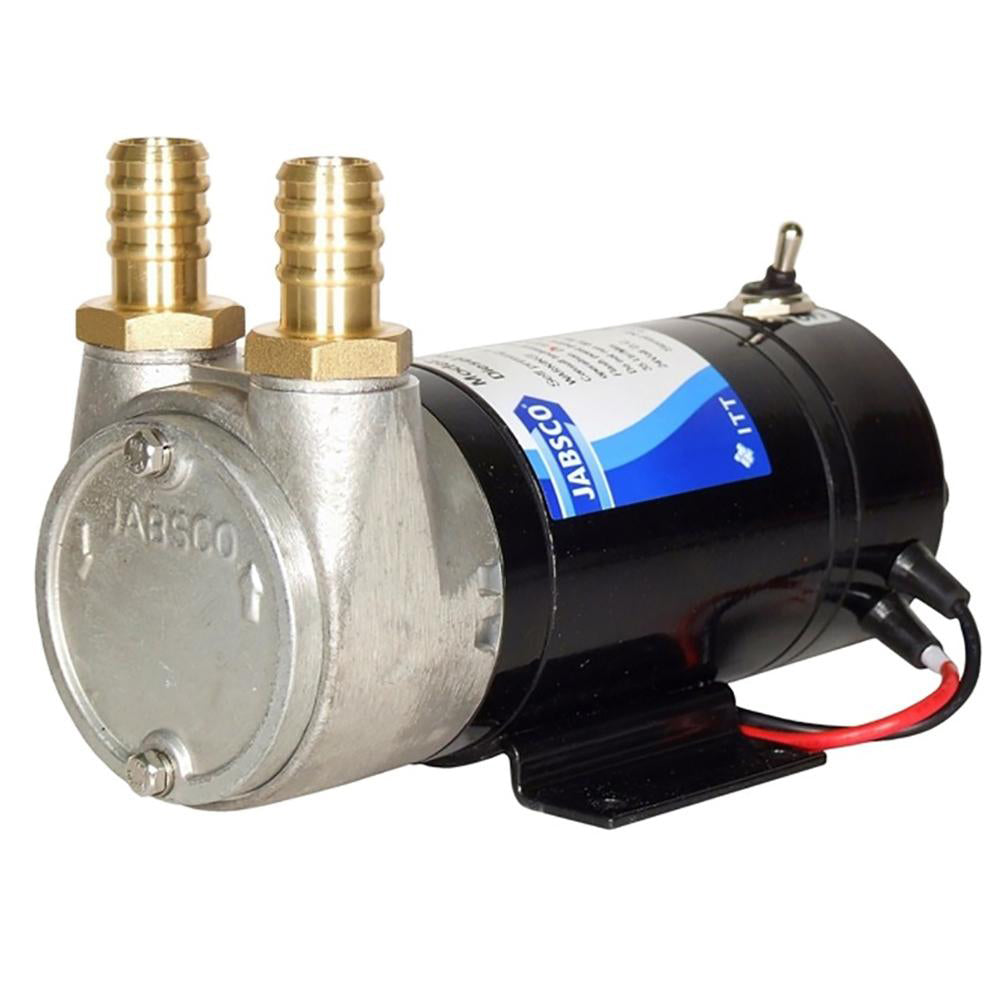

Jabsco Sliding Vane Diesel Transfer Pump - 9 GPM - 24V

Sliding Vane Self-Priming Diesel Transfer Pump - 9 GPM & 24v

Designed for refueling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums.

Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.

Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. .

Features:

• Faster refueling - 35 litres/minute (9.5 U.S.GPM).
• High head capability - 6 meters (19 feet).
• Self priming up to 2.8 meters (9 feet).
• Vibration tested. • IP55 protected motor

Specifications:

• Temperature Range : -30°C to +40°C (-22°F to +104°F)
• Pump Body : Aluminium
• Rotor : Vectra
• Vanes : PTFE Filled Ryton
• Shaft : Steel
• Seal : Nitrile
• Lip Seal Ports : Vertical ½¨ BSP or 19mm hose adaptors (¾¨)
• Motor : 24V permanent magnet, corrosion resistant IP55 protected
• Duty : 25 mins @ +40°C (104°F)
• Current Draw: 7 Amps @ 3m head
• Maximum Current: 10 Amps

Brochure (pdf)
