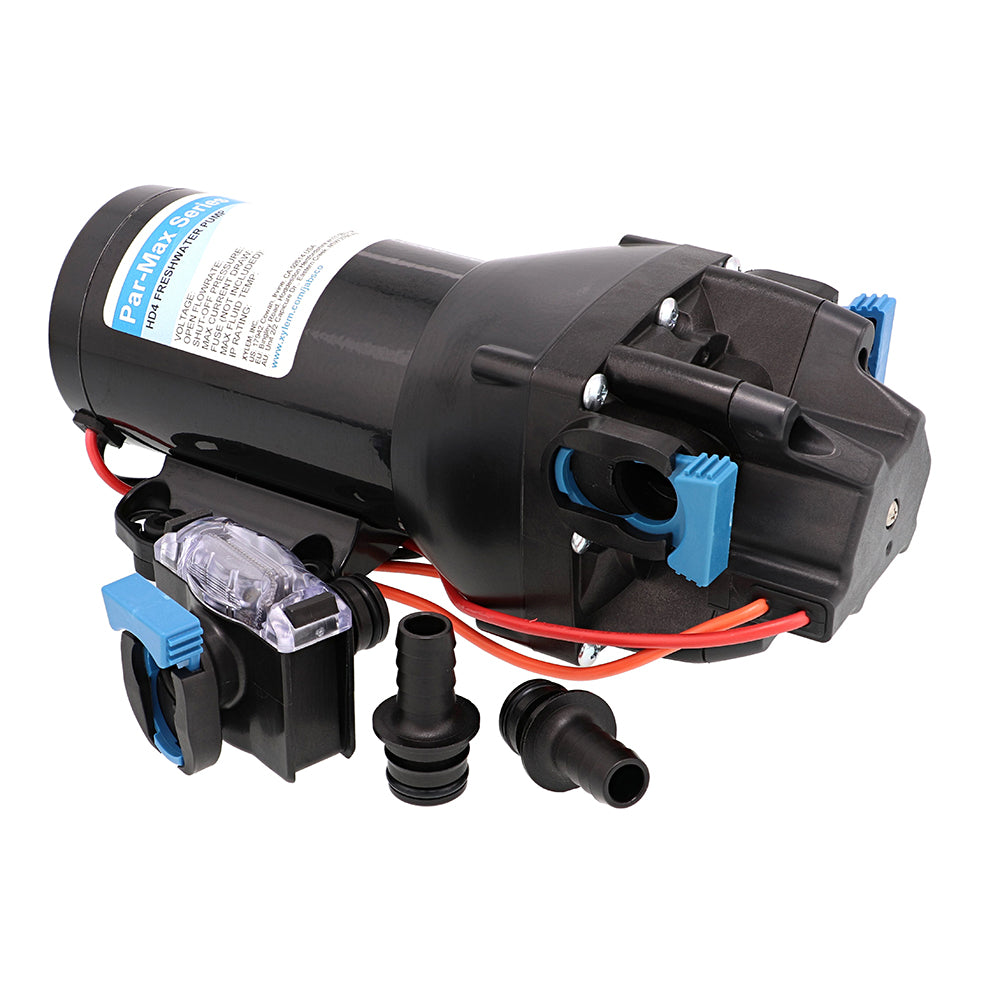

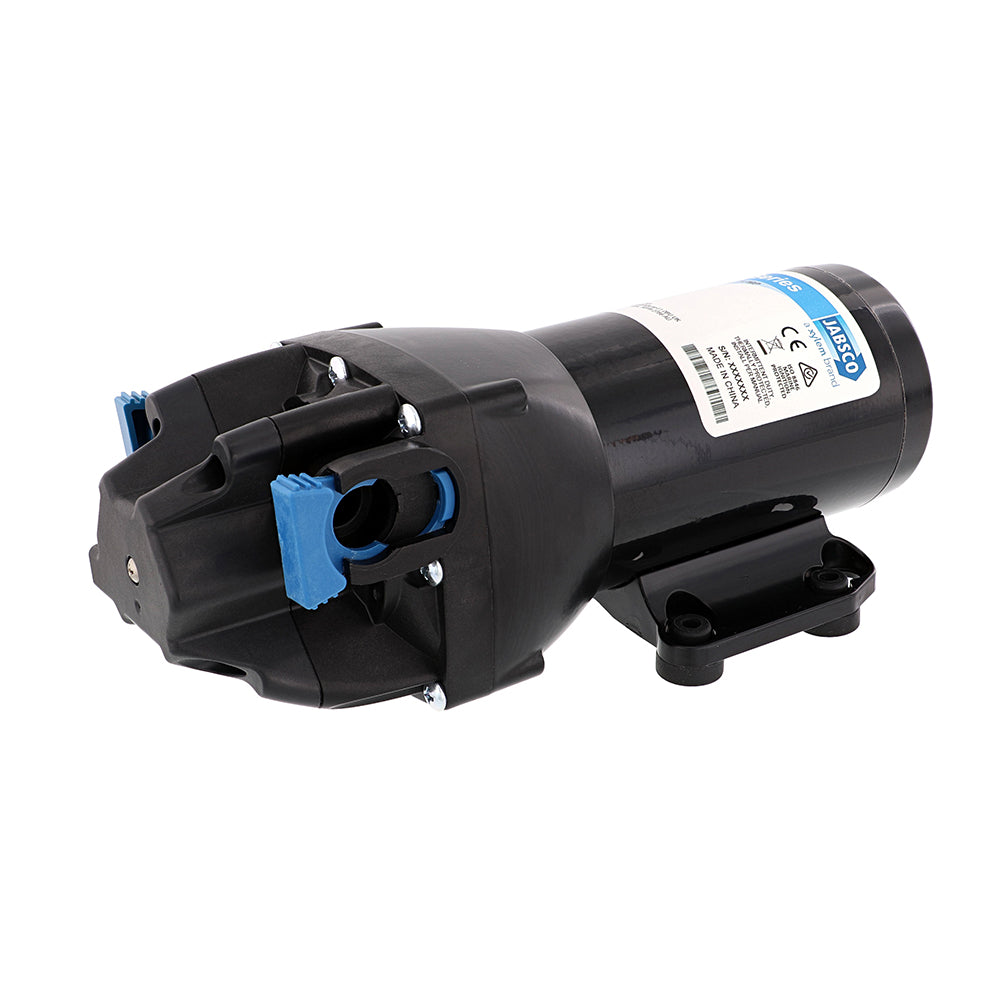

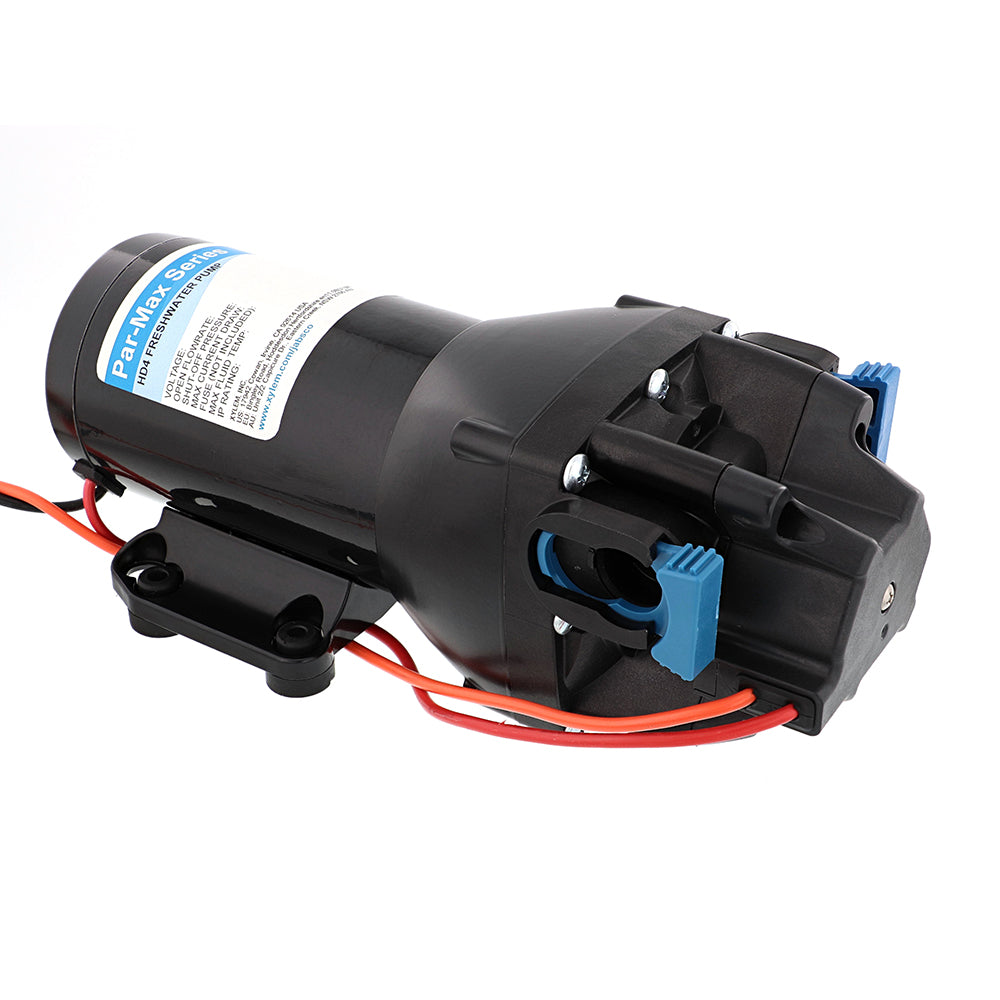

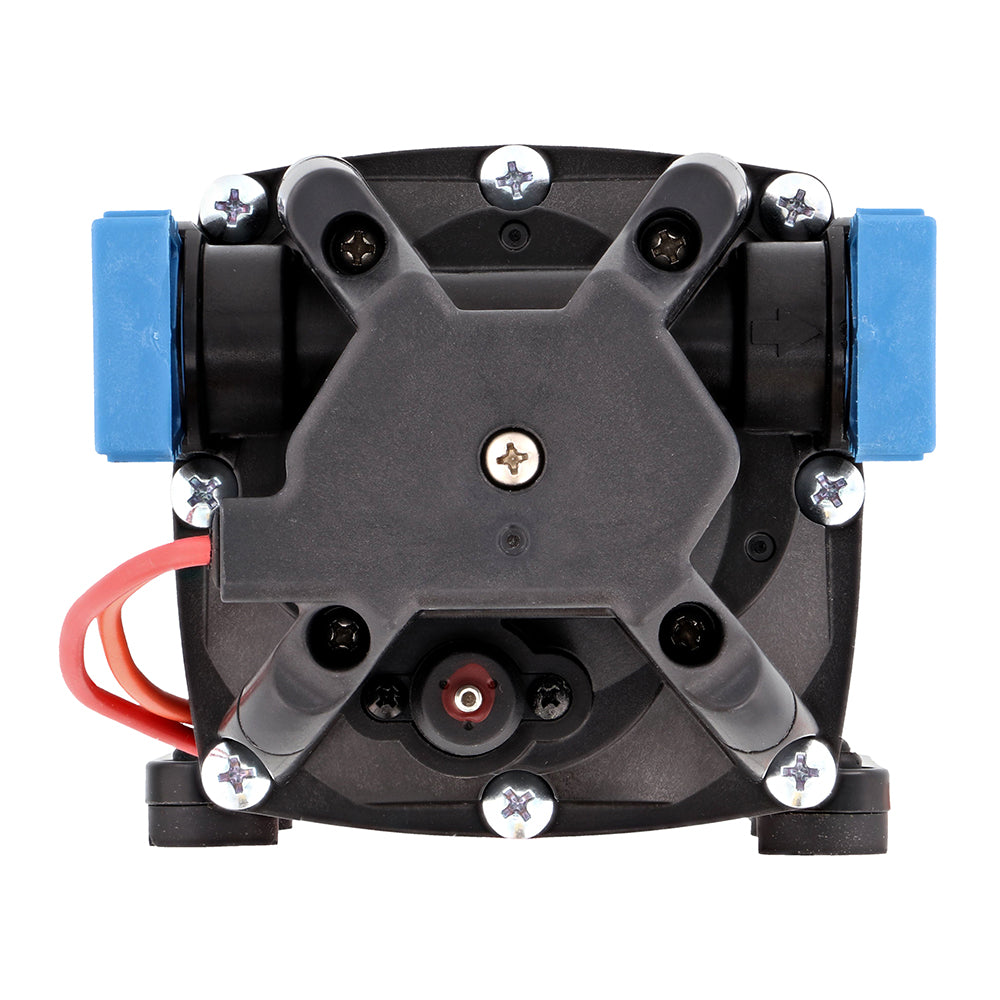

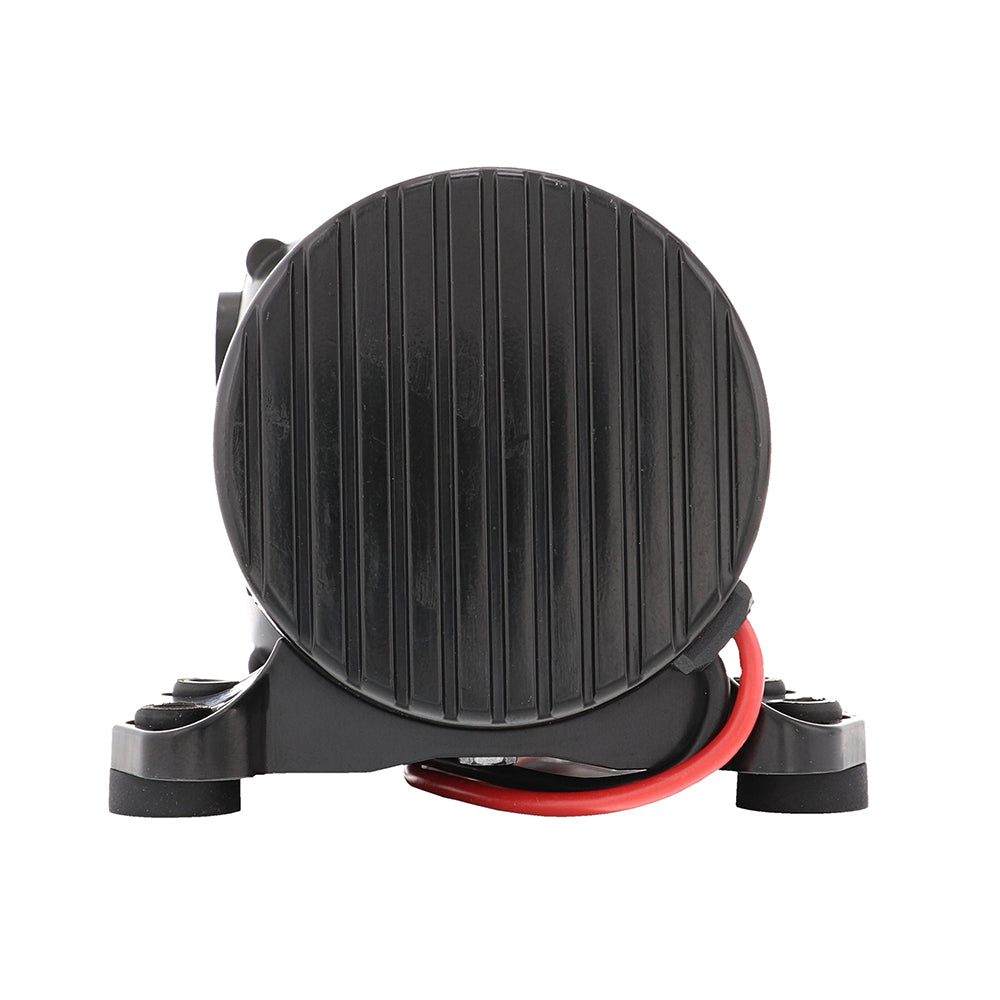

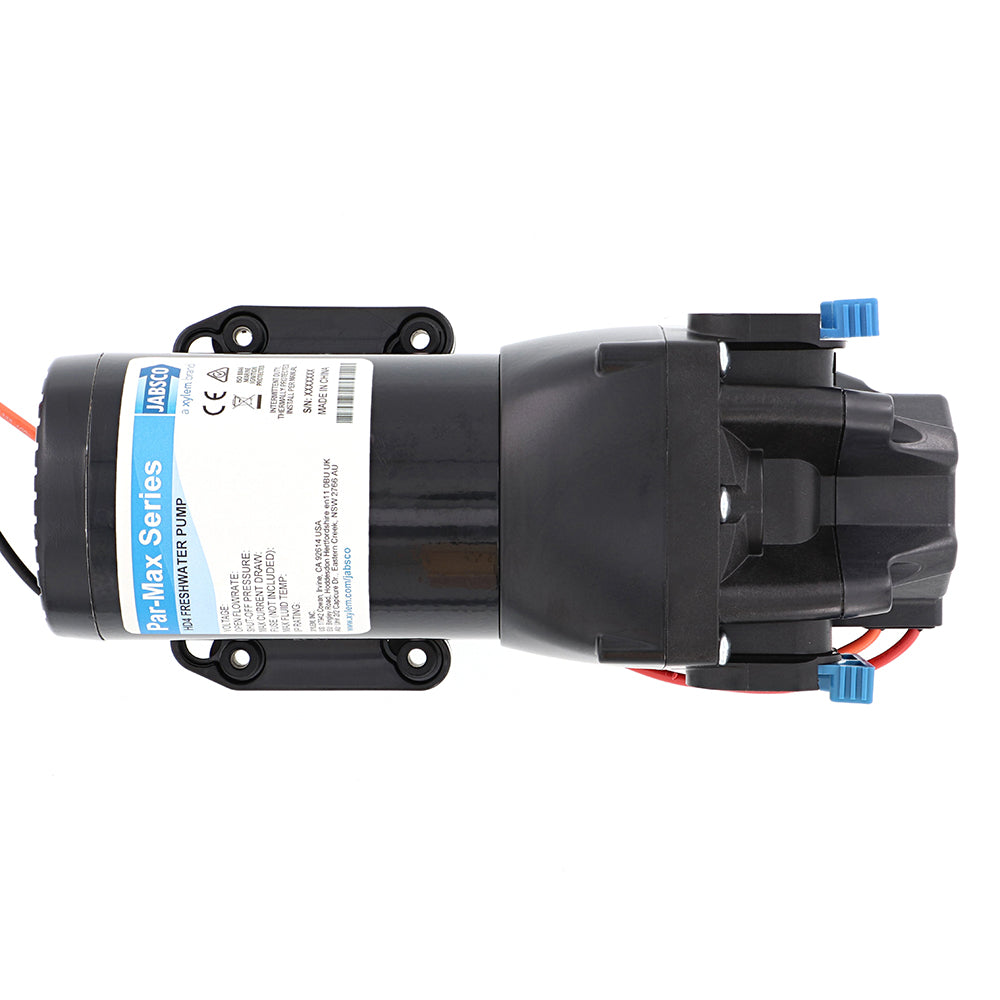

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Upgrade your marine vessel's water system with the Par-Max HD4 Heavy Duty Water Pressure Pump. Specifically designed for boating applications, this robust 12V pump delivers an impressive 4 GPM at 60 PSI, ensuring reliable and consistent water pressure for all your onboard needs.
Product Overview
The Par-Max HD4 Heavy Duty Water Pressure Pump is engineered for optimal performance in demanding marine environments. With a wider diameter motor and a powder-coated shell, this pump is built to withstand the rigors of marine use, providing enhanced pressure capability and extended lifespan. Available in configurations up to 6 GPM and 60 PSI, the HD4 model ensures your vessel maintains superior water pressure across multiple outlets.
Key Features
- Durable Construction: Features a co-molded diaphragm for long life and durability.
- Heavy Duty Design: Equipped with heavy-duty motors and cast aluminum lower housings for sustained performance at high pressures.
- Quiet Operation: Efficient and quiet, minimizing noise on your vessel.
- Integrated Pressure Switch: Sealed and built-in for on-demand operation without external components.
- Self-Priming Capability: Allows for versatile installation options, adapting to various marine setups.
- Dry Run Protection: Can run dry without sustaining damage, safeguarding the pump during low water conditions.
- Easy Installation: Quick connect ports simplify the installation, servicing, and maintenance processes.
- Vibration Dampening: Mounted with vibration dampening feet to reduce operational noise and movement.
- Enhanced Flow Control: Integrated bypass module decreases cycling and ensures smoother water flow.
Technical Specifications
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7ft min (2.13m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Voltage | 12V |
| Maximum PSI | 60 |
| Gallons Per Minute | 4 GPM |
| Box Dimensions | 6"H x 6"W x 15"L |
| Weight | 7.85 lbs |
| UPC | 671880841870 |
Installation and Maintenance
The Par-Max HD4 is designed for easy installation on various marine vessels. Its self-priming feature provides flexibility in positioning, while the quick connect ports facilitate straightforward setup and maintenance. Regular maintenance ensures optimal performance and longevity, making this pump a reliable choice for boat owners seeking dependable water pressure solutions.
Safety Information
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
