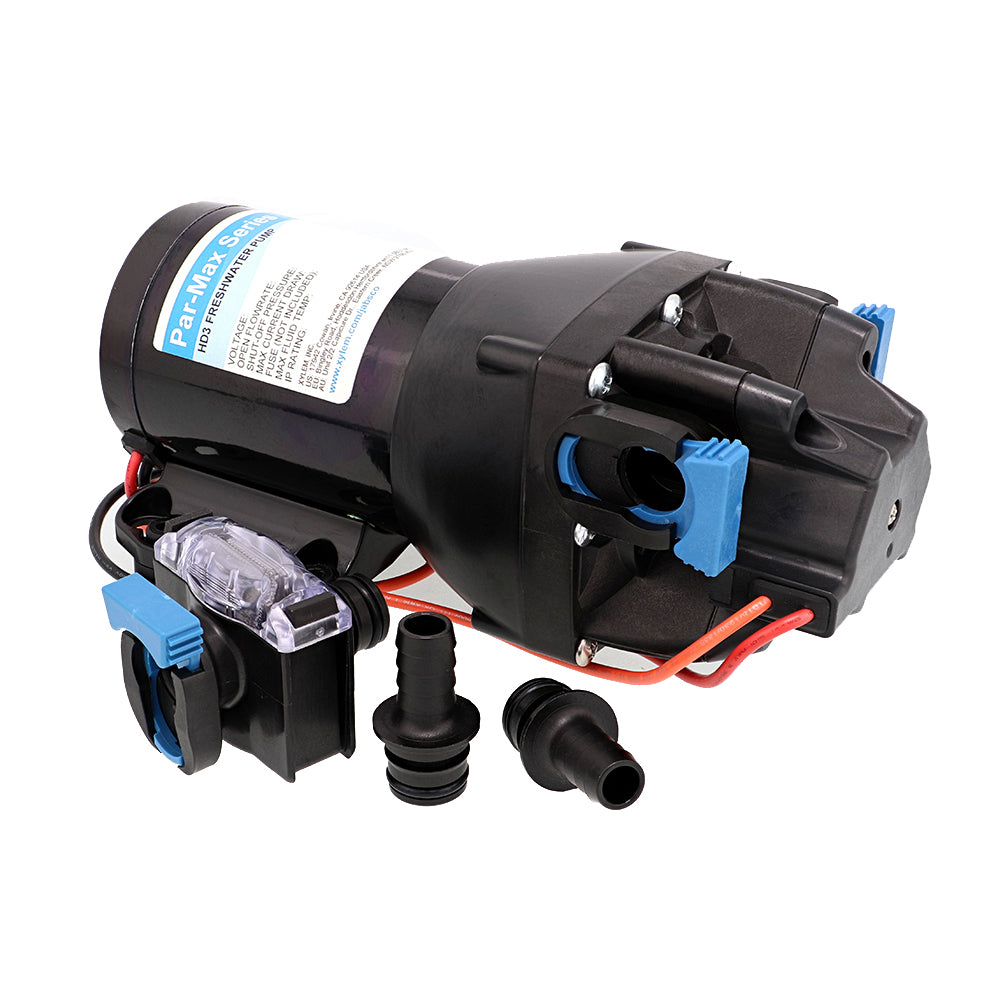

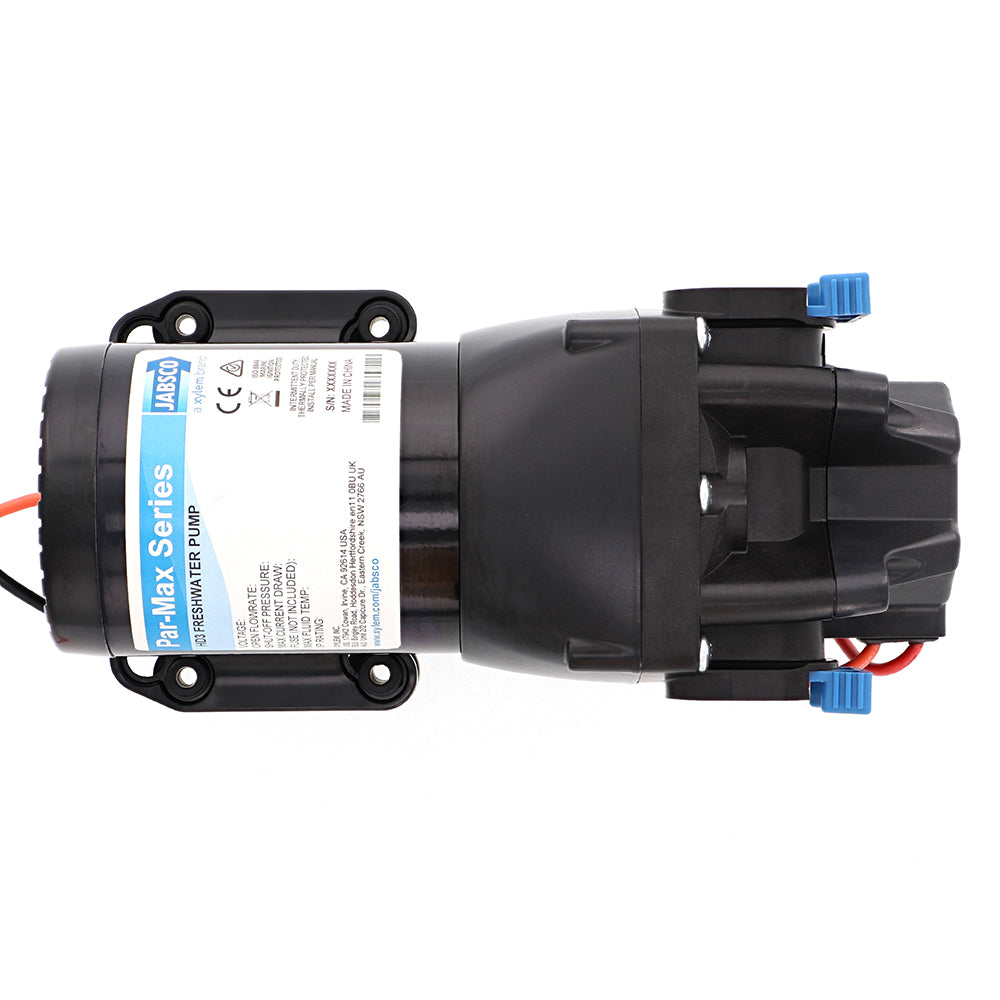

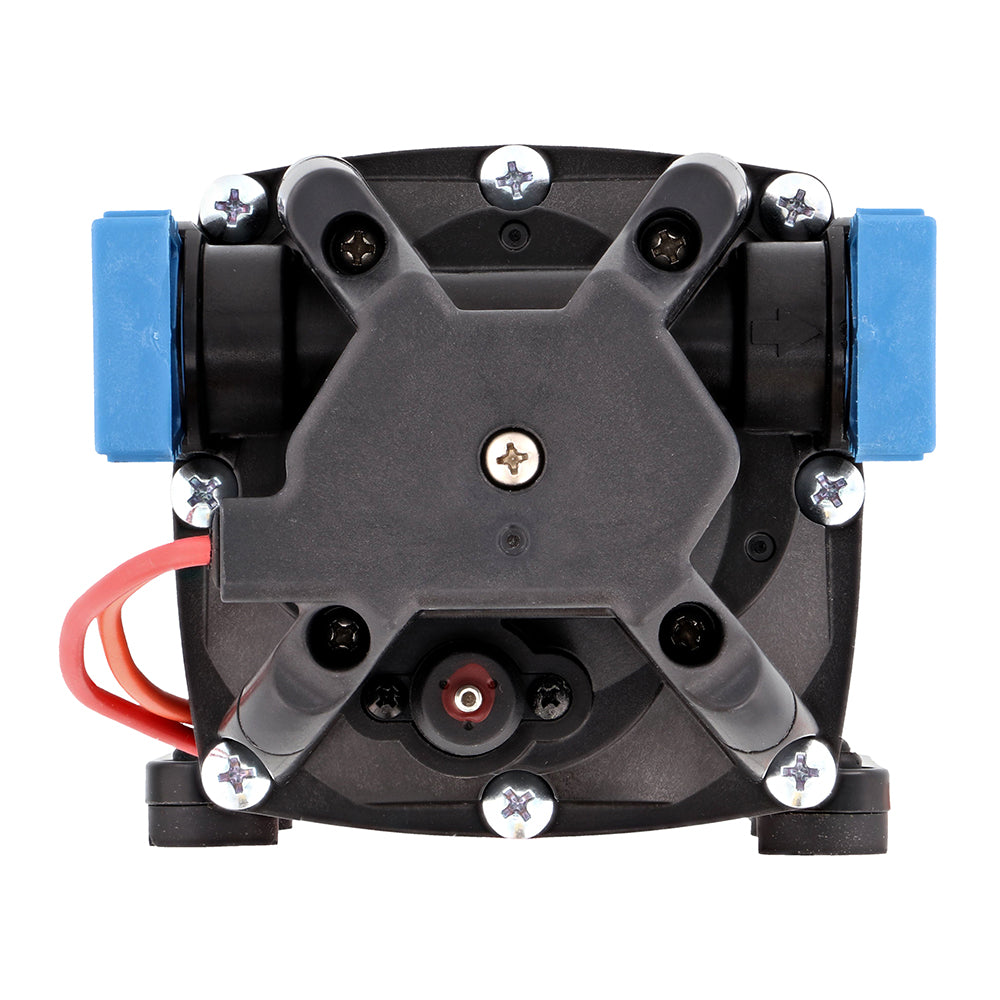

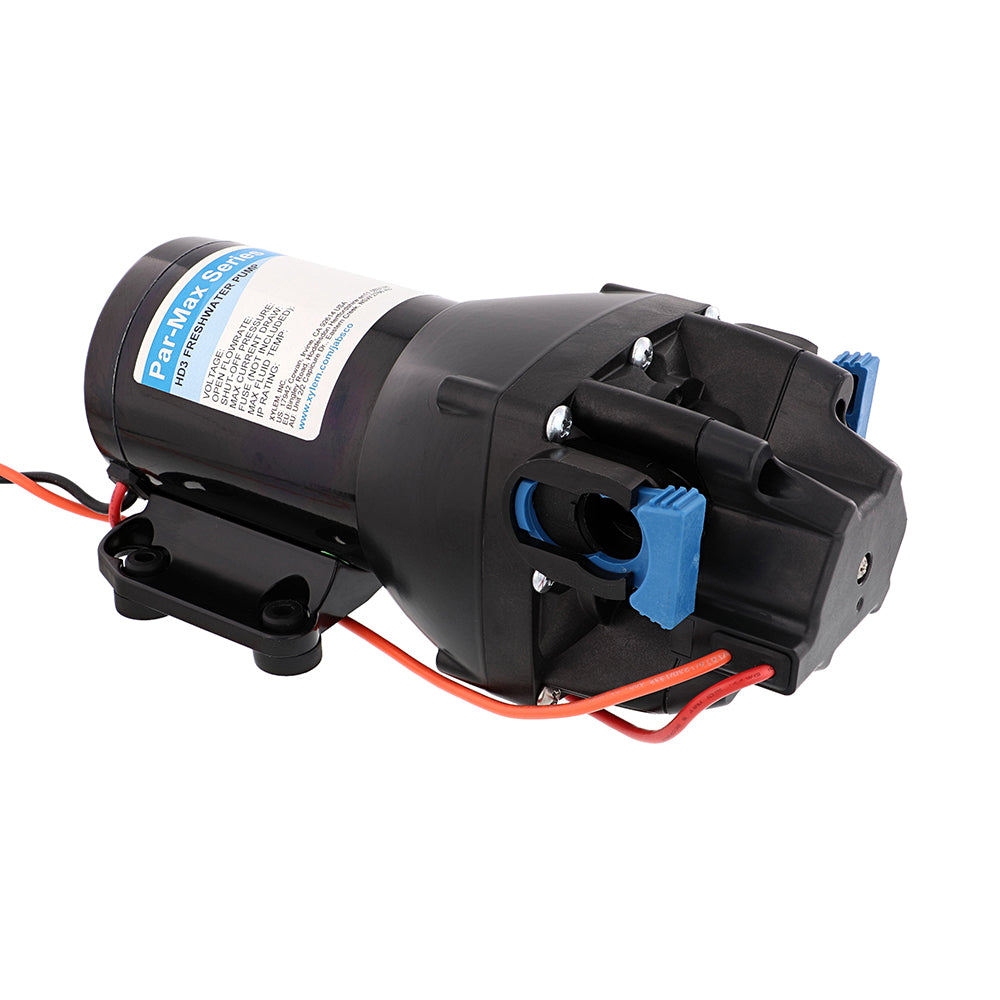

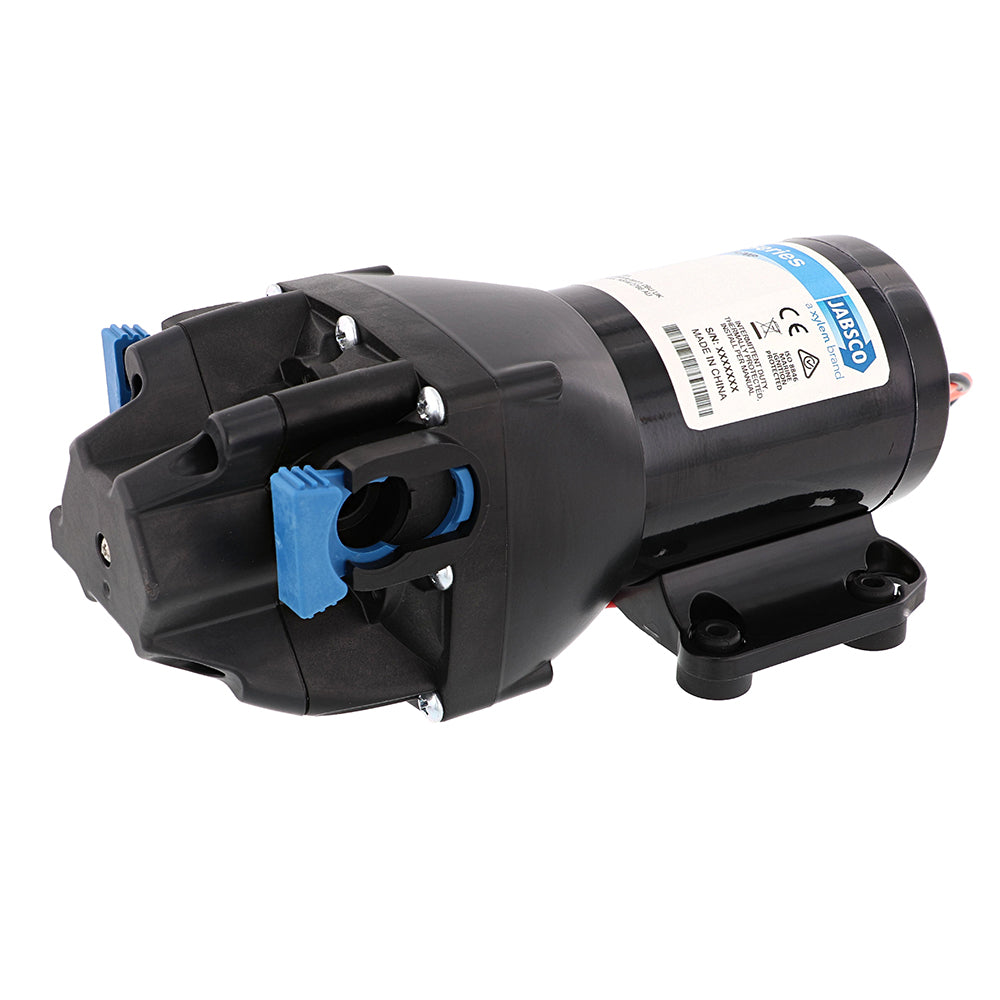

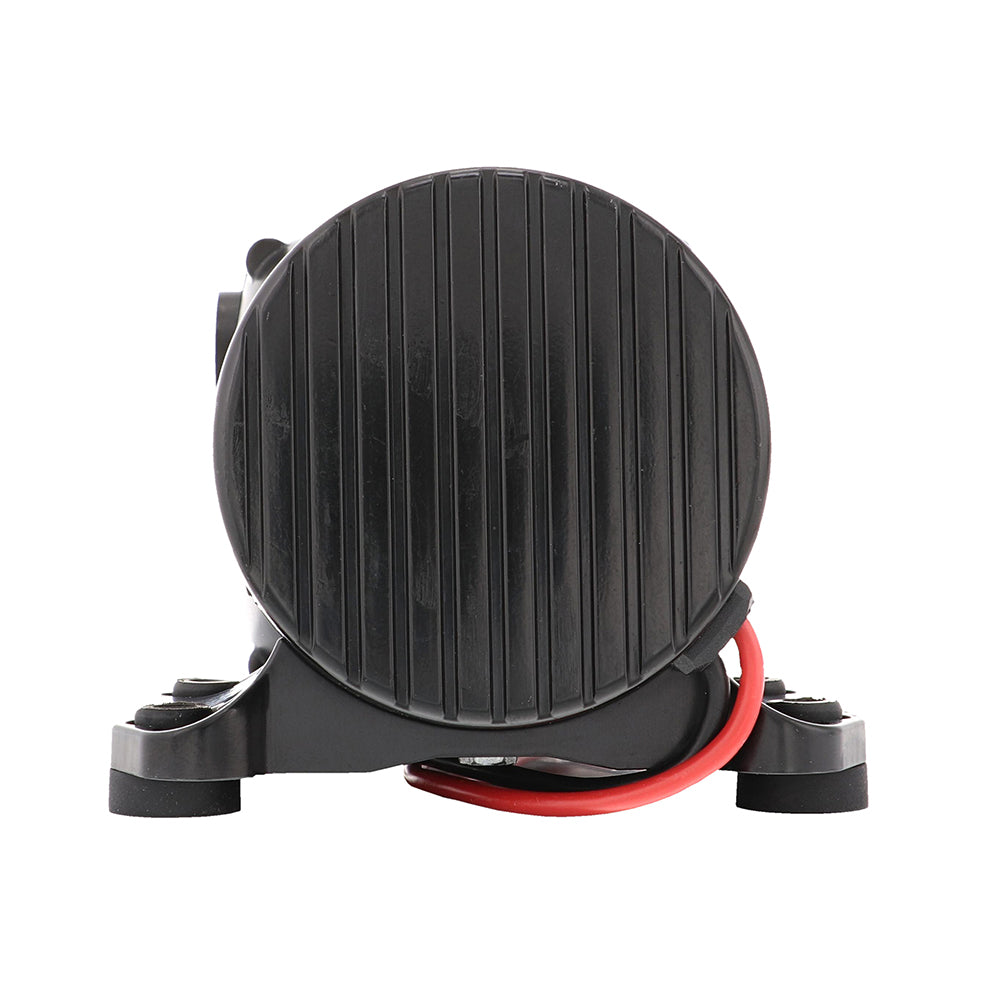

Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 60 PSI
Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 60 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Par-Max HD3 Heavy Duty Water Pressure Pump is engineered for marine and boating enthusiasts seeking reliable and powerful water pressure solutions. Operating at 12V, this pump delivers a robust 3 GPM and maintains up to 60 PSI, ensuring optimal performance for various onboard water systems.
Key Features
- Durable Construction: Equipped with a wider diameter brushed, permanent magnet TENV motor and a powder-coated shell, the HD3 is built to withstand the demanding marine environment.
- Enhanced Performance: Cast aluminum endbells and lower housing improve pressure capability and extend the pump's lifespan, even under high-pressure conditions.
- Quiet and Efficient: Designed for silent operation, minimizing noise on your vessel while maintaining high efficiency.
- Integrated Pressure Switch: Sealed pressure switch ensures on-demand operation, providing water only when needed to conserve energy.
- Self-Priming: Offers installation flexibility, allowing the pump to self-prime up to 7 feet, making it versatile for various marine setups.
- Protective Housing: Plastic housing safeguards the motor from corrosion, ensuring longevity in saltwater and harsh conditions.
- Easy Installation & Maintenance: Quick connect ports facilitate hassle-free installation, servicing, and maintenance.
- Vibration Dampening: Mounting feet reduce vibrations, enhancing the pump's stability and reducing wear over time.
- Integrated Bypass Module: Minimizes cycling and provides smoother water flow, enhancing overall system performance.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12V |
| Maximum PSI | 60 PSI (4.1 BAR) |
| Flow Rate | 3 GPM (11.4 LPM) |
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Maximum Inlet Pressure | 30 PSI (2.1 BAR) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.13 m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Box Dimensions | 6"H x 6"W x 15"L |
| Weight | 7 lbs |
| UPC | 671880841849 |
Safety Information
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Additional Resources
For a comprehensive overview of the Par-Max HD3 Heavy Duty Water Pressure Pump, download our brochure (PDF).
