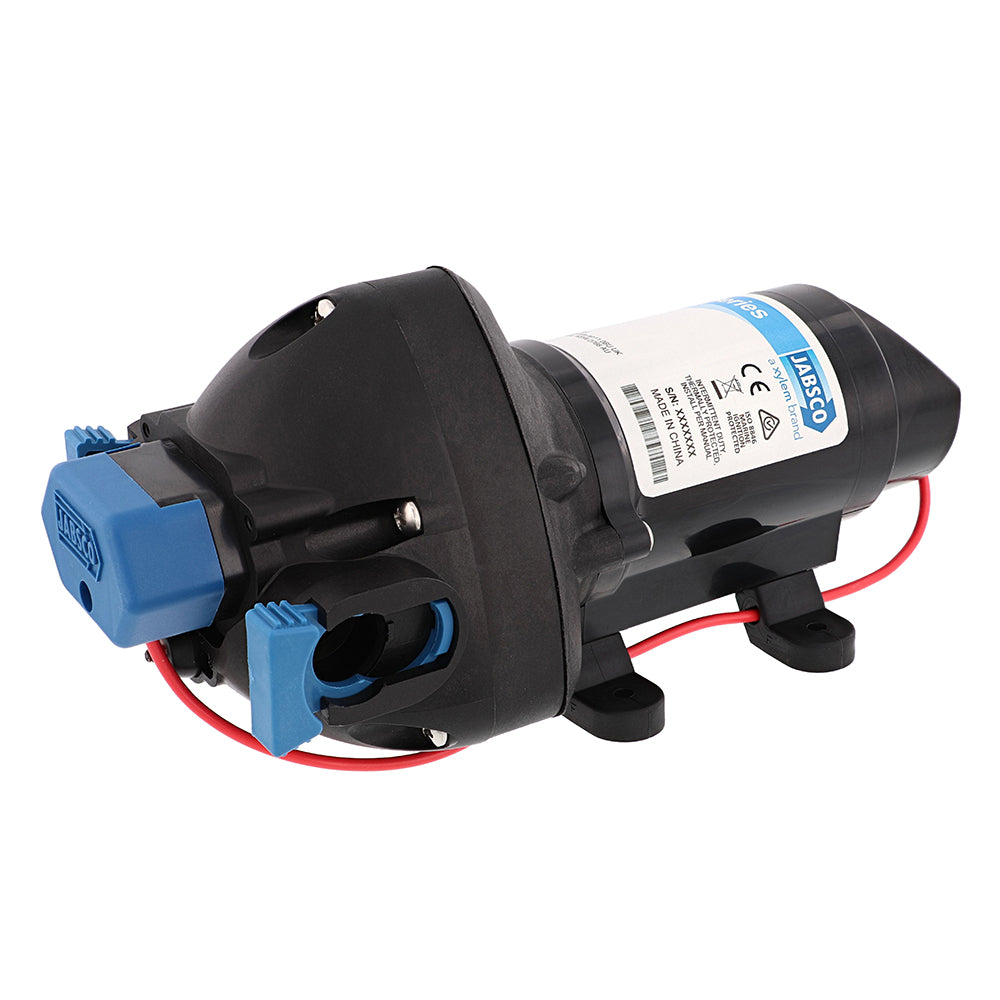

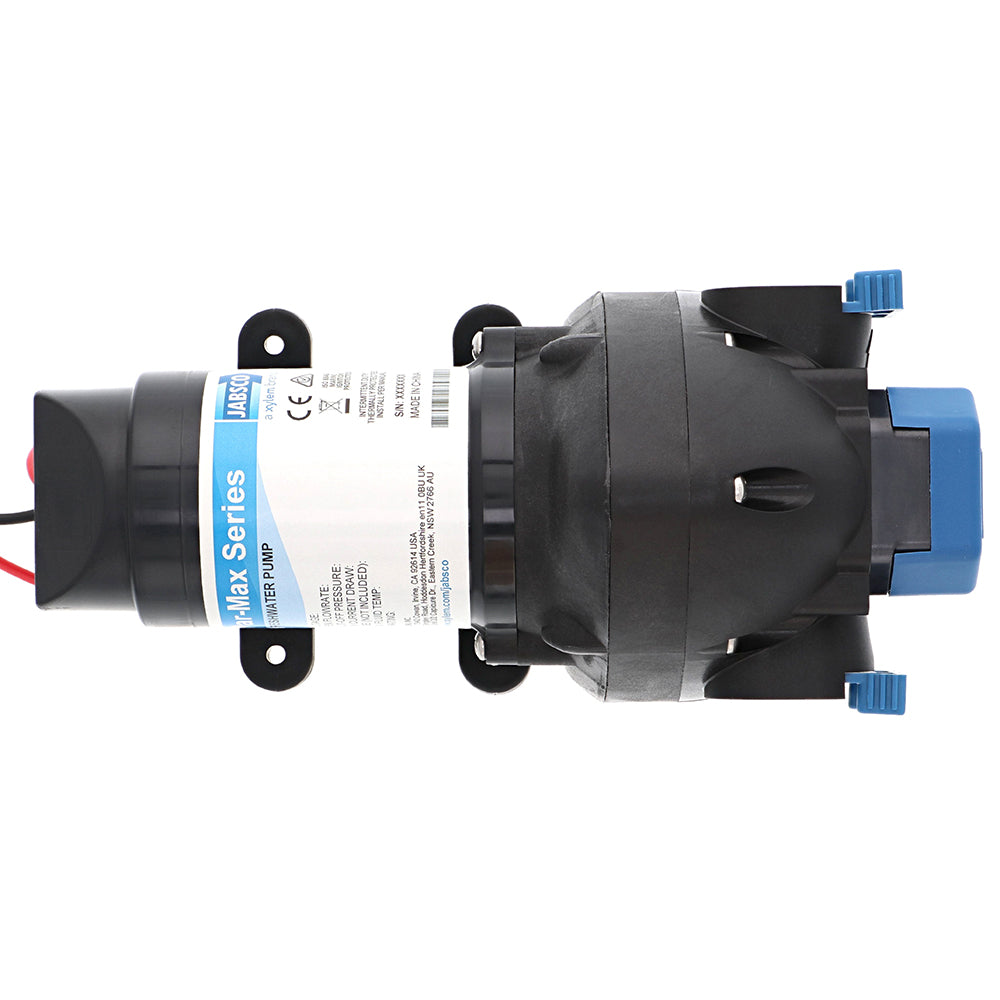

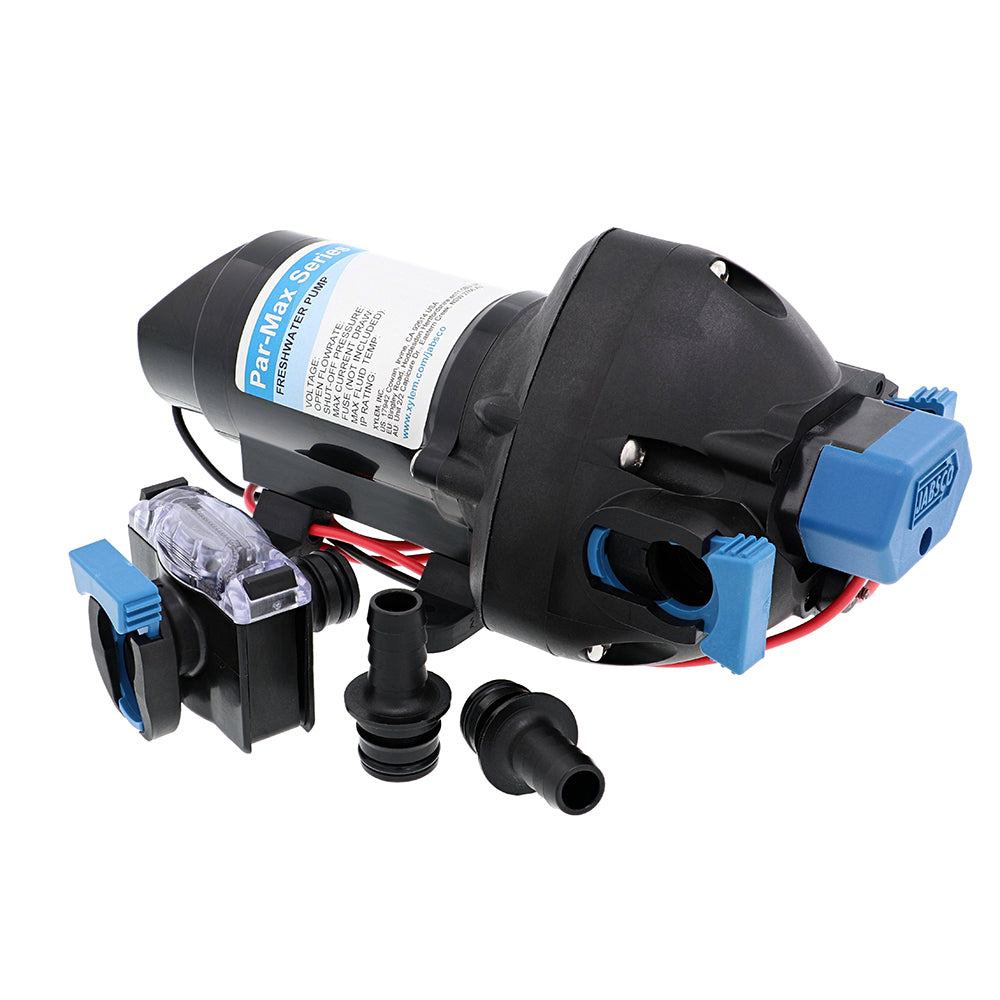

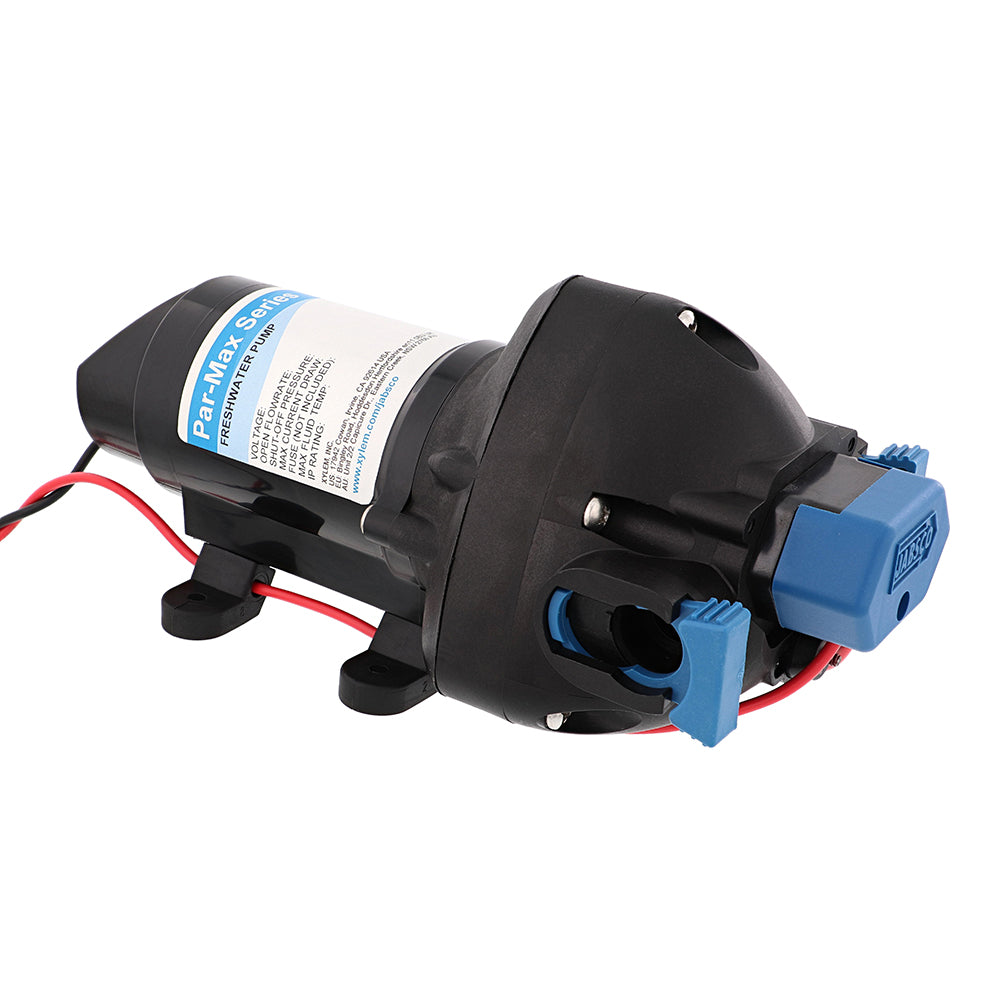

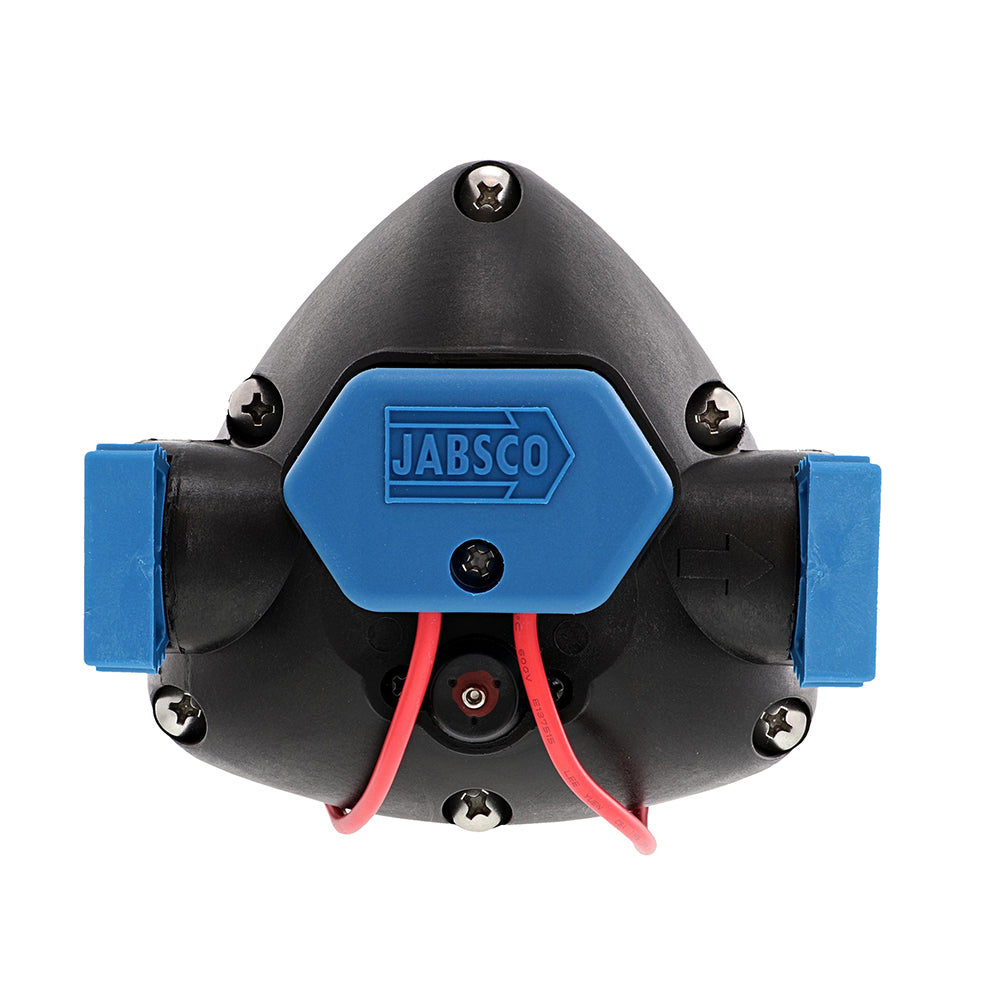

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI
Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Par-Max 3 Water Pressure Pump is a reliable and efficient solution tailored for marine and boating applications. Designed to deliver consistent water pressure, this 24V pump ensures your vessel's water systems operate smoothly, whether you're cruising on calm seas or navigating challenging waters.
Product Overview
The Par-Max 3 Water Pressure Pump is available in both Heavy Duty (HD) and Standard models, each engineered to meet specific marine needs. The HD models boast a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a reinforced lower housing, enhancing both pressure capability and longevity. Standard models offer excellent performance within a compact and economical footprint, making them ideal for boats with 1-3 water outlets. Both variants feature corrosion-resistant components, ensuring durability in harsh marine environments.
Key Features
- Co-molded diaphragm technology for extended lifespan and reliability
- Heavy Duty models equipped with robust motors and cast aluminum lower housings for sustained high-pressure operation
- Efficient and quiet performance, minimizing onboard noise
- Integrated, sealed pressure switch for smart on-demand operation
- Self-priming capability allows for flexible installation locations
- Dry run protection prevents damage when operating without water
- Quick connect ports simplify installation, servicing, and maintenance
- Vibration dampening mounting feet reduce engine-induced vibrations
- Integrated bypass module minimizes cycling and ensures smoother water flow
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 24V |
| Flow Rate | 3 GPM (Gallons Per Minute) |
| Maximum Pressure | 25 PSI (1.72 BAR) |
| Maximum Inlet Pressure | 30 PSI (2.1 BAR) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.13 m/min) |
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Material | Glass Fiber Reinforced Polypropylene |
| Diaphragm Material | Co-molded TPV |
| Check Valves | EPDM |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Box Dimensions | 5"H x 6"W x 15"L |
| Weight | 4.45 lbs |
| UPC | 671880841795 |
Why Choose Par-Max 3 for Your Boat?
Marine environments demand equipment that can withstand constant exposure to moisture, salt, and varying temperatures. The Par-Max 3 Water Pressure Pump is built with high-quality materials and advanced engineering to resist corrosion and wear, ensuring long-term reliability. Its self-priming feature offers installation versatility, allowing you to position the pump in the most convenient location on your vessel without worrying about complex setups.
Whether you're outfitting a small dinghy or a larger yacht, the Par-Max 3 provides the necessary performance to support multiple water outlets, enhancing your onboard water experience. From showers and sinks to deck hoses and other amenities, this pump ensures consistent water flow wherever you need it.
