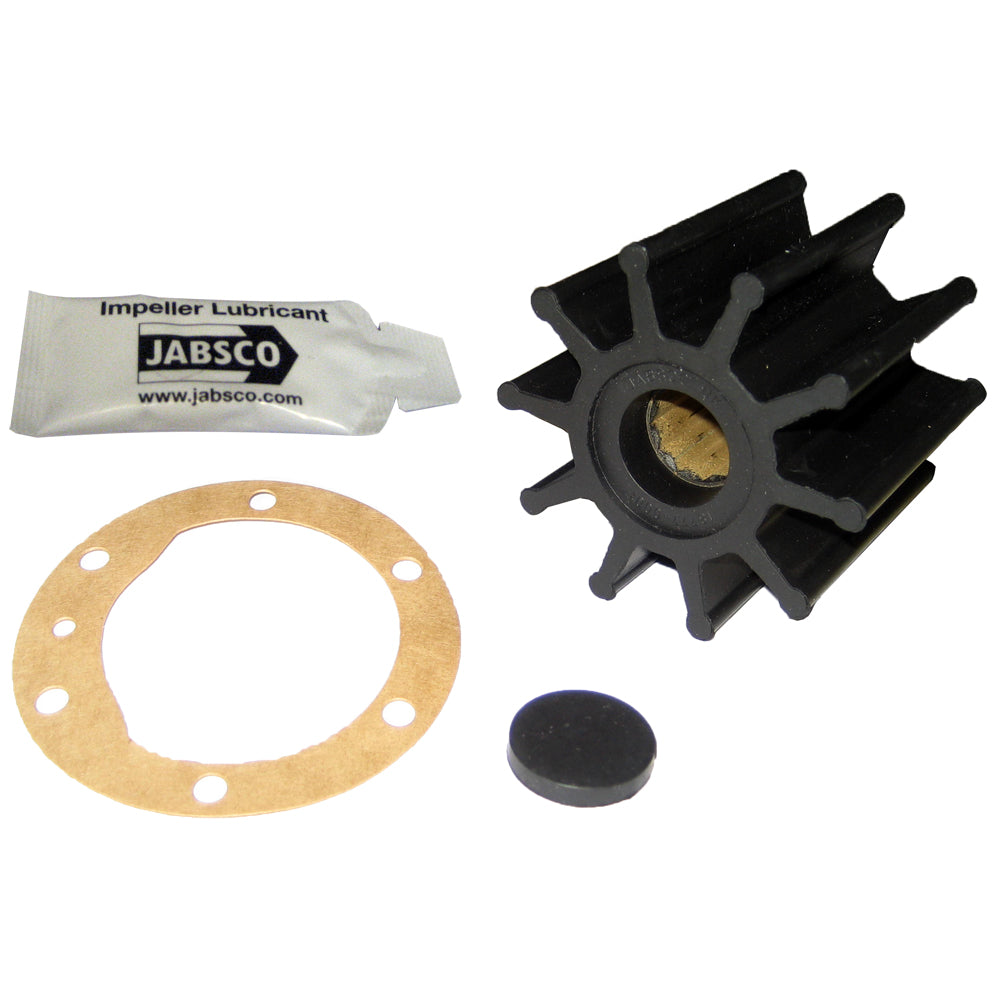

Jabsco Impeller Kit - 10 Blade - Neoprene - 2-1/4"

Enhance the reliability and performance of your marine engine with our premium Jabsco Impeller Kit, expertly engineered to deliver efficient cooling and optimal operation for a wide range of marine applications.

Product Specifications

Material	Neoprene
Drive Type	Spline Drive
Number of Blades	10
Dimensions	Diameter: 2-1/4" Shaft Width: 5/8" Shaft Diameter: 2"
Insert Material	Brass

Features & Benefits

• Compatible with most makes and models of bronze flexible impeller engine cooling, bilge, transfer, and general-purpose pumps.
• Constructed from high-quality neoprene for durability and long-lasting performance.
• Spline drive ensures a secure and efficient connection.
• Brass insert material enhances the impeller’s lifespan and resistance to wear.
• Designed to withstand rigorous marine environments with reliable performance.

Maintenance & Replacement

Regular maintenance of your impeller is crucial for ensuring the optimal performance of your engine. It is recommended to replace all impellers at least once every year or sooner, depending on the engine's duty cycle. Adhering to a preventative maintenance schedule can extend the lifespan of your impeller and prevent unexpected failures.

Installation Instructions

1. Remove the end cover screws of your pump.
2. Use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub of the impeller and remove it from the pump.
3. Important: Do not use screwdrivers as they may damage the pump body or cause leaks, and can be hazardous in confined spaces.
4. Grease new impellers before installation to facilitate easier fitting into the pump bore and provide added protection during the initial priming.
5. After replacing the gasket and end cover, the pump is ready for use.

Always carry spare impellers on board to address emergencies promptly. The impeller is a vital component of the engine cooling system and should always be maintained with care.

Safety Information

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
