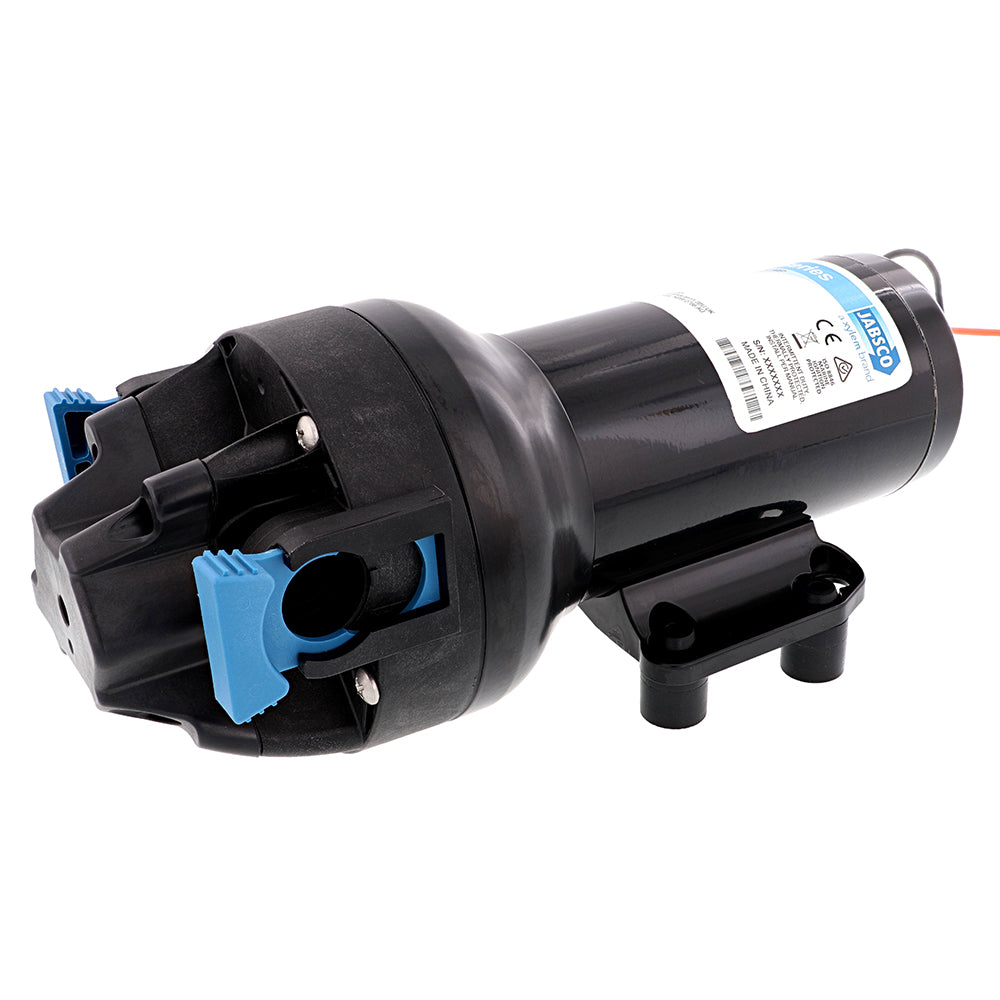

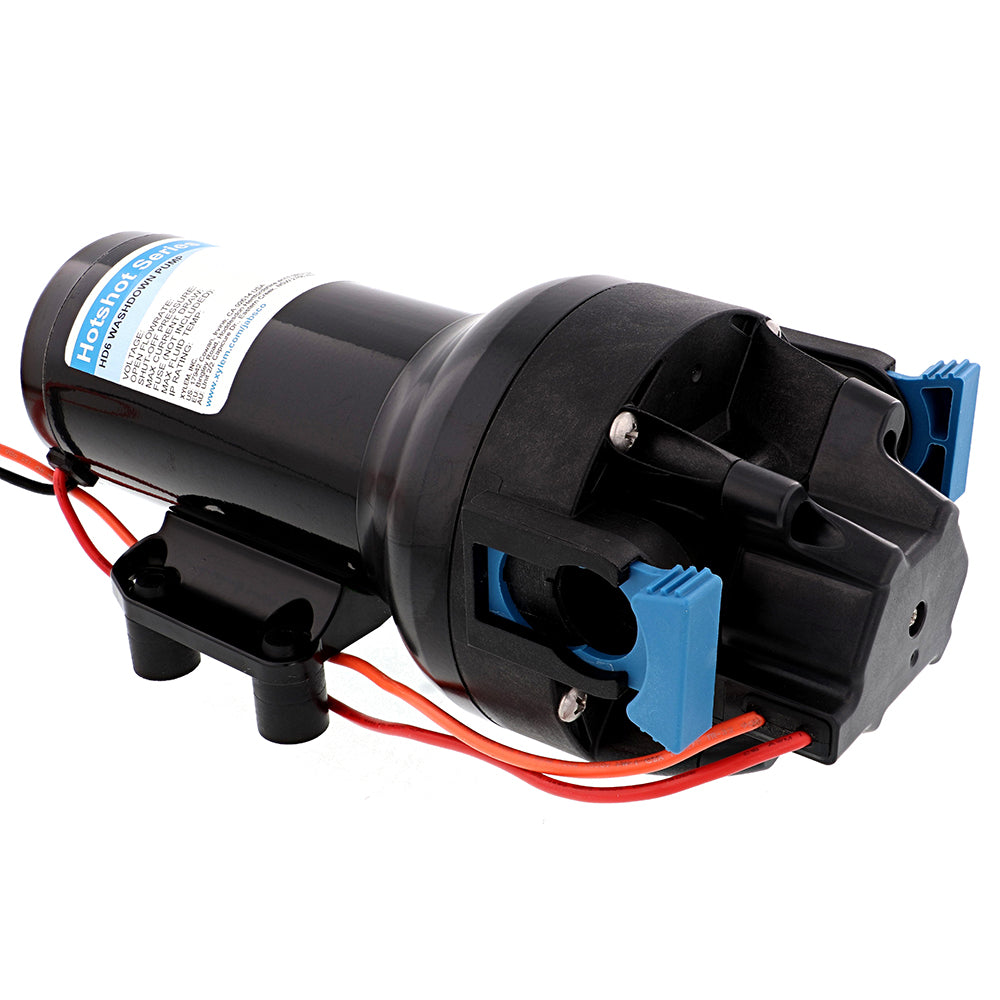

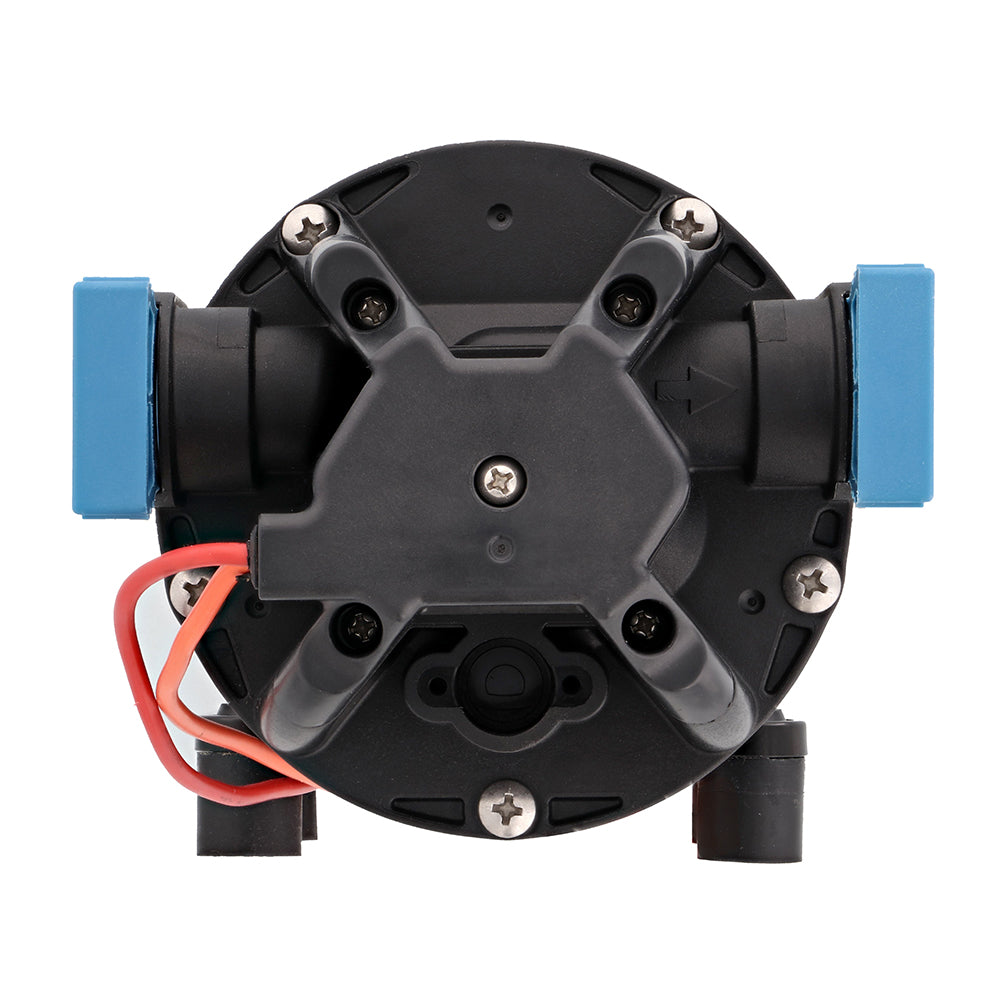

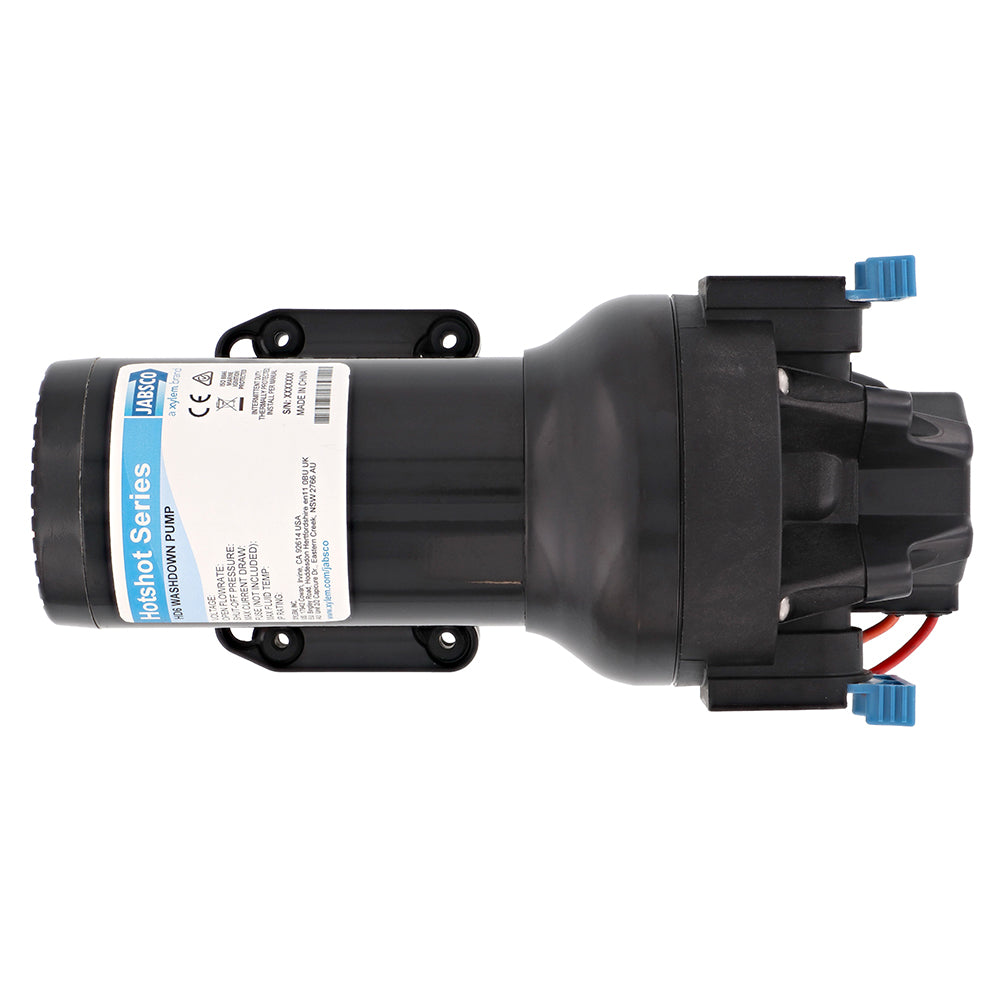

Jabsco HotShot HD6 Heavy Duty Washdown Pump - 24V - 6 GPM - 70 PSI
Jabsco HotShot HD6 Heavy Duty Washdown Pump - 24V - 6 GPM - 70 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HotShot HD6 Heavy Duty Washdown Pump is the ideal solution for marine and boating enthusiasts seeking a dependable and high-performance pump to maintain pristine cleanliness on deck. Designed for durability and efficiency, this 24V pump delivers impressive flow and pressure, ensuring your vessel remains spotless in any conditions.
Outstanding Features for Marine Applications
- Advanced Diaphragm Technology: Co-molded TPV diaphragms provide long-lasting durability and reliable performance.
- Heavy Duty Construction: HD models feature robust motors with a wider diameter, powder-coated shells, cast aluminum endbells, and lower housings to enhance pressure capability and extend pump life.
- Quiet and Efficient Operation: Designed to operate smoothly, reducing noise levels while maximizing efficiency.
- Integrated Sealed Pressure Switch: Enables on-demand operation, optimizing performance based on your needs.
- Self-Priming Capability: Offers installation flexibility, allowing the pump to self-prime up to 7 feet even in dry conditions.
- Dry Run Protection: Can run dry without sustaining damage, ensuring reliability during unexpected situations.
- Easy Installation and Maintenance: Quick connect ports simplify setup and servicing, while vibration dampening mounting feet minimize movement and noise.
- Comprehensive Kit Options: Full kit versions come complete with a 25' deluxe HoseCoil, providing everything you need for immediate use.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 24V |
| Maximum Pressure | 70 PSI |
| Flow Rate | 6 GPM |
| Motor Design | Brushed, Permanent Magnet TENV |
| Pumphead Housing Material | Glass Fiber Reinforced Polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Maximum Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | Minimum 7 ft (2.1 m) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Box Dimensions | 6"H x 8"W x 17"L |
| Weight | 9.9 lbs |
| UPC | 671880842020 |

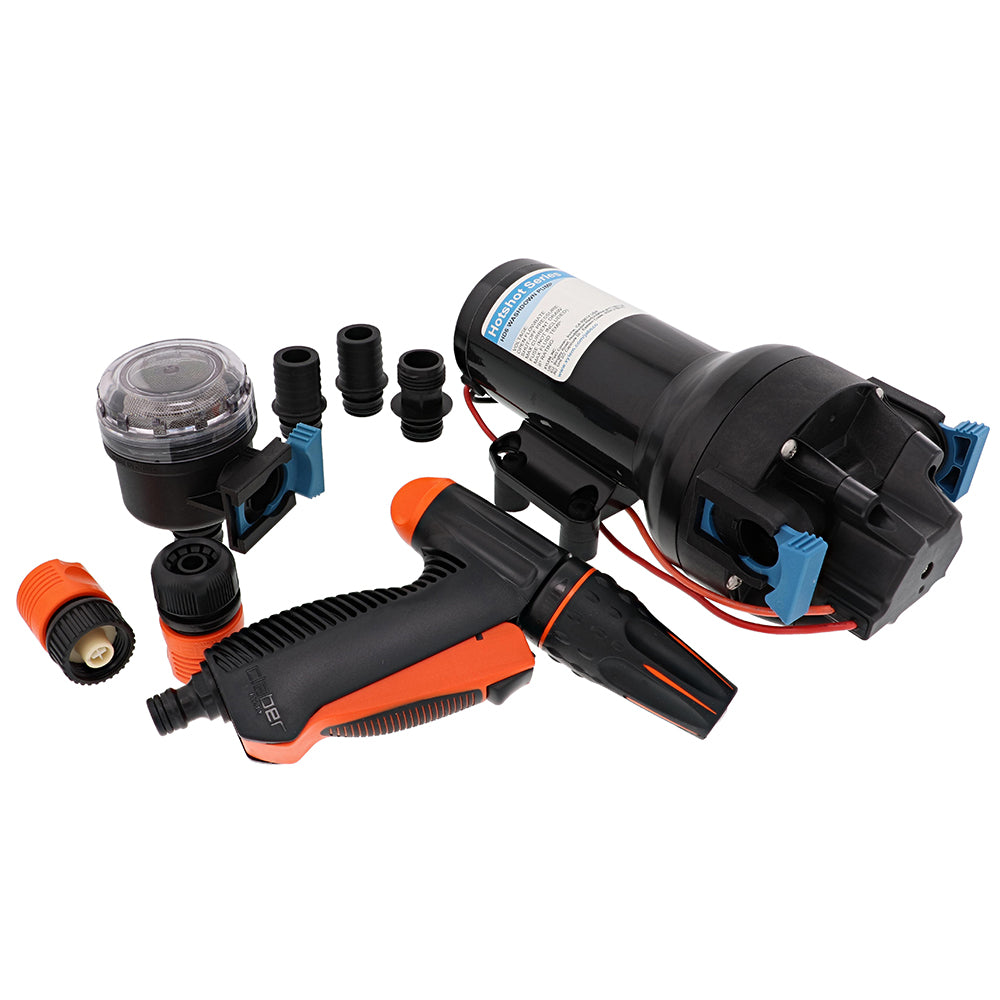

Included Fittings & Accessories
- Quick Connect Straight Hosebarb and GHT Fittings (size varies by model)
- 90° 20 Mesh Quick Connect Strainer
- Trigger Nozzle & Quick Connect Hose Adapters
- 25' Deluxe HoseCoil (included in kit versions)
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
