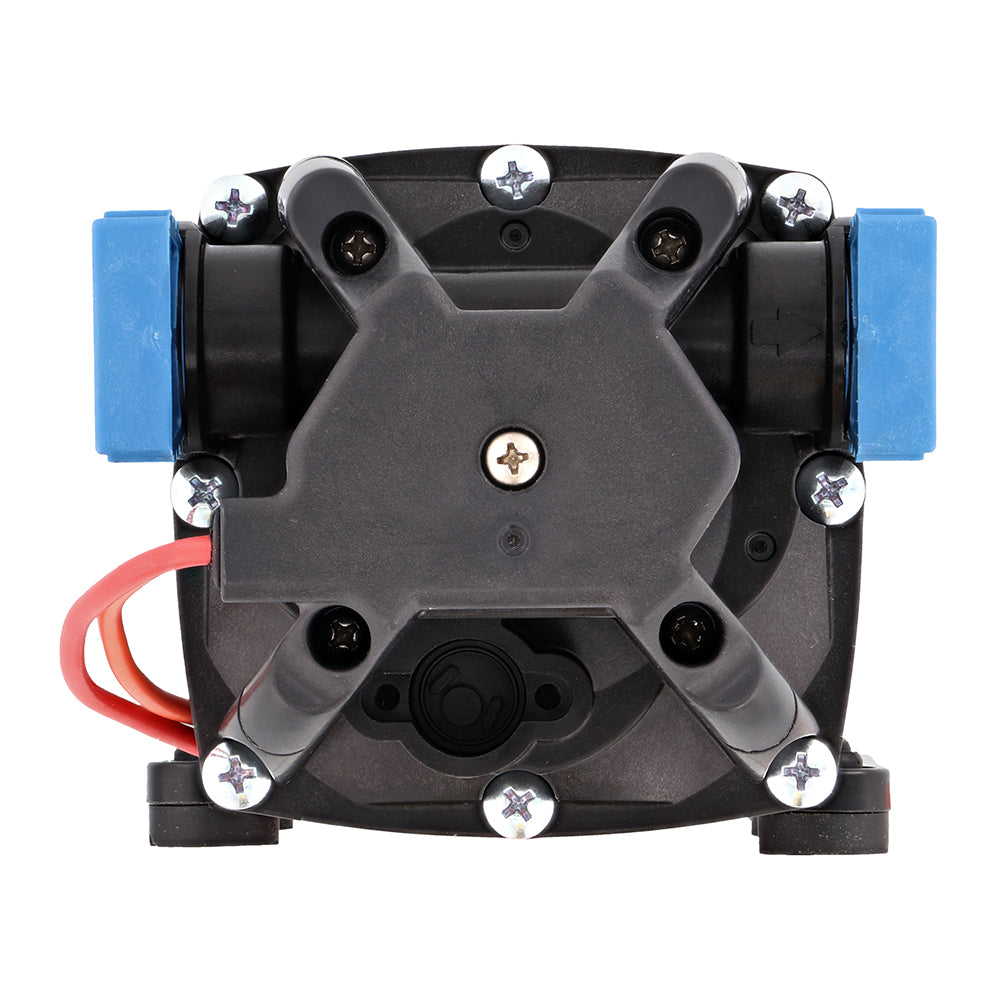

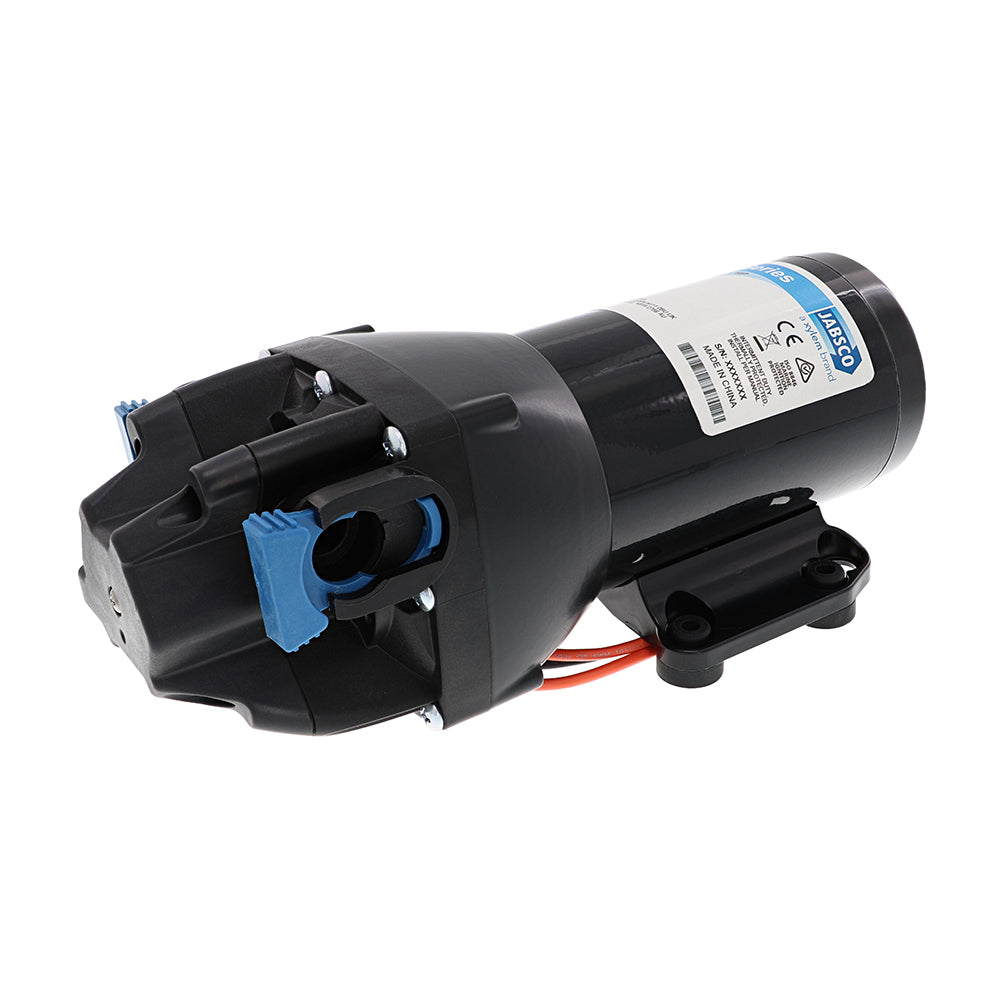

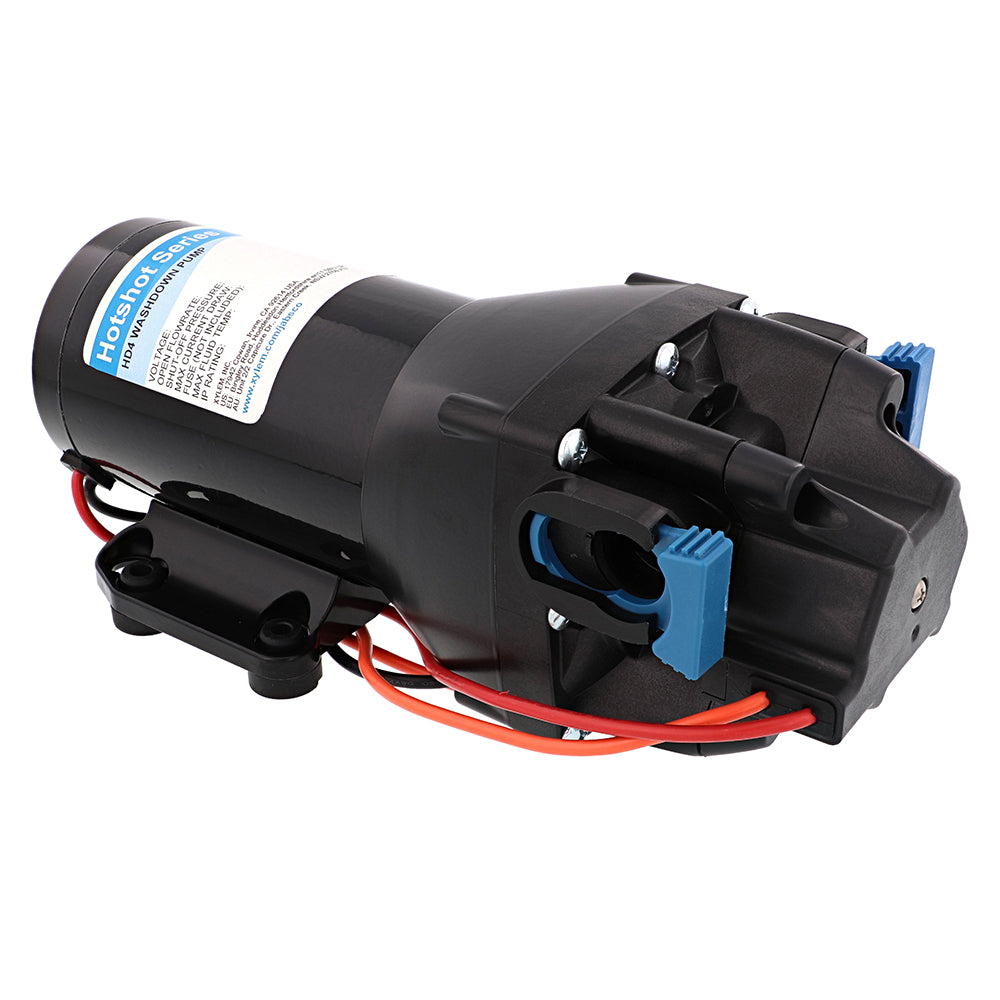

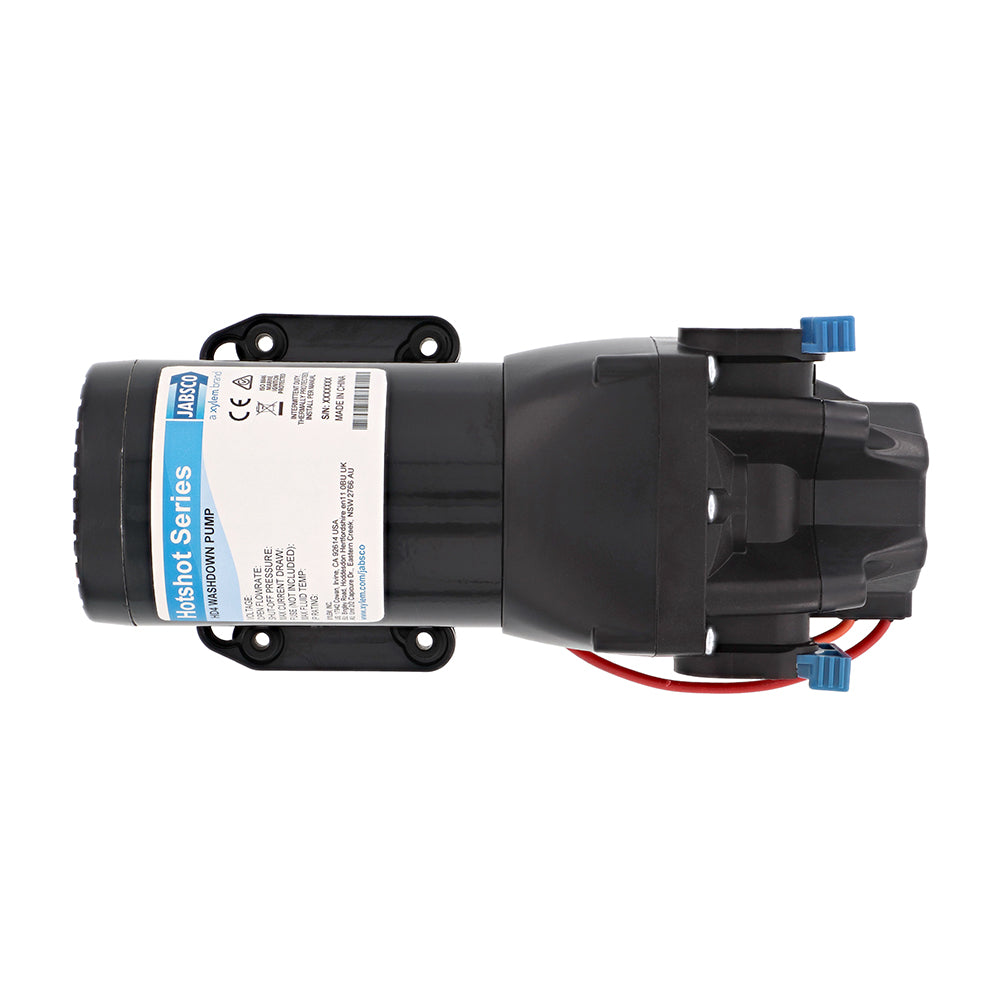

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI
Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HotShot HD4 Heavy Duty Washdown Pump is the ultimate solution for marine and boating enthusiasts seeking reliable high-flow and high-pressure performance. Designed to withstand the harsh marine environment, this 12V pump delivers 4 GPM at 60 PSI, ensuring your vessel stays spotless and well-maintained.
Exceptional Performance for Marine Applications
Built on the trusted Jabsco legacy, the HD4 model features a robust design tailored for demanding washdown tasks. Whether you're cleaning your deck, hull, or other marine equipment, the HD4 ensures consistent pressure and flow, enhancing your boating experience.
Key Features
- Co-Molded Diaphragm Technology: Ensures long life and durability, ideal for frequent washdowns.
- Heavy Duty Construction: HD models incorporate wider diameter motors, powder-coated shells, cast aluminum endbells, and lower housings to boost pressure capability and longevity.
- Quiet and Efficient Operation: Minimizes noise, allowing for a more peaceful boating environment.
- Integrated Sealed Pressure Switch: Enables on-demand operation, optimizing performance and energy use.
- Self-Priming Capability: Offers installation versatility, making it easy to set up in various configurations.
- Dry Run Protection: Can run dry without sustaining damage, providing added reliability.
- Quick Connect Ports: Simplifies installation, servicing, and maintenance with user-friendly connections.
- Vibration Dampening Mounting Feet: Reduces noise and wear from engine vibrations.
- Comprehensive Kit Options: Full kit versions include a 25' (7.6m) hose coil for extended reach and flexibility.
Technical Specifications
| Specification | Details |
|---|---|
| Motor Design | Brushed, Permanent Magnet TENV |
| Pumphead Upper Housing Material | Glass Fiber Reinforced Polypropylene |
| Diaphragm | Co-Molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.1 m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |

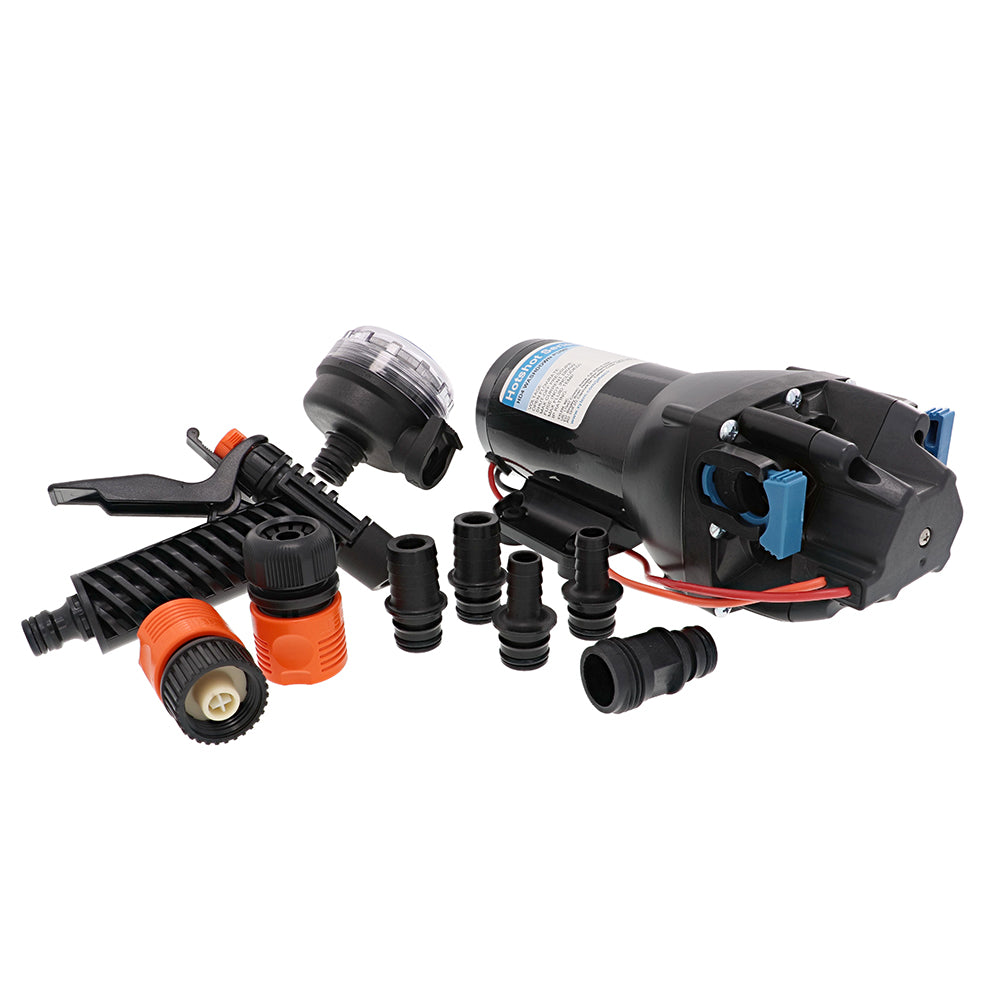

Fittings & Accessories
- Quick Connect Straight Hosebarb and GHT Fittings (Size varies by model)
- 90° 20 Mesh Quick Connect Straight Elbow
- Trigger Nozzle & Quick Connect Hose Adapters
- Full Kit Includes 25' Hose Coil
Additional Specifications
| Specification | Value |
|---|---|
| Max PSI | 60 |
| Volts | 12V |
| Gallons Per Minute | 4 GPM |
| Box Dimensions | 6"H x 8"W x 17"L |
| Weight | 8.8 lbs |
| UPC | 671880841917 |
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
