Jabsco HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI
Jabsco HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HotShot 3 Washdown Pump is a reliable and high-performance solution designed specifically for marine and boating applications. With its robust 12V motor, this pump delivers 3 gallons per minute at 50 PSI, ensuring efficient and effective deck cleaning even in the most demanding environments.
Superior Features for Marine Use
- Durable Diaphragm Technology: Co-molded TPV diaphragms ensure long life and exceptional durability, perfect for frequent marine use.
- Heavy Duty Construction: HD models feature a wider diameter motor, powder-coated shell, cast aluminum endbells, and a lower housing to enhance pressure capability and pump longevity.
- Quiet and Efficient Operation: Minimizes noise on board, allowing for a more comfortable boating experience.
- Integrated Pressure Switch: Sealed and built-in for on-demand operation, automatically activating when needed.
- Self-Priming Capability: Offers versatile installation options, ensuring the pump operates smoothly even in varying conditions.
- Run Dry Protection: Capable of running dry without sustaining damage, providing peace of mind during use.
- Easy Installation and Maintenance: Quick connect ports simplify the setup process and facilitate easy servicing.
- Vibration Dampening: Mounted with vibration dampening feet to reduce noise and wear from constant use.
- Comprehensive Kits Available: Full kit versions include a 25' (7.6m) hose coil, providing everything needed for immediate use.
Technical Specifications
| Attribute | Details |
|---|---|
| Voltage | 12V |
| Maximum PSI | 50 PSI |
| Flow Rate | 3 GPM |
| Box Dimensions | 5"H x 6"W x 15"L |
| Weight | 5.1 lbs |
| UPC | 671880841818 |
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Maximum Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.1 m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
Fittings & Accessories
- Quick Connect Fittings: Straight hosebarb and GHT fittings available in sizes specific to each model.
- Inline Strainer: 40 mesh Quick Connect strainer to prevent debris from entering the pump.

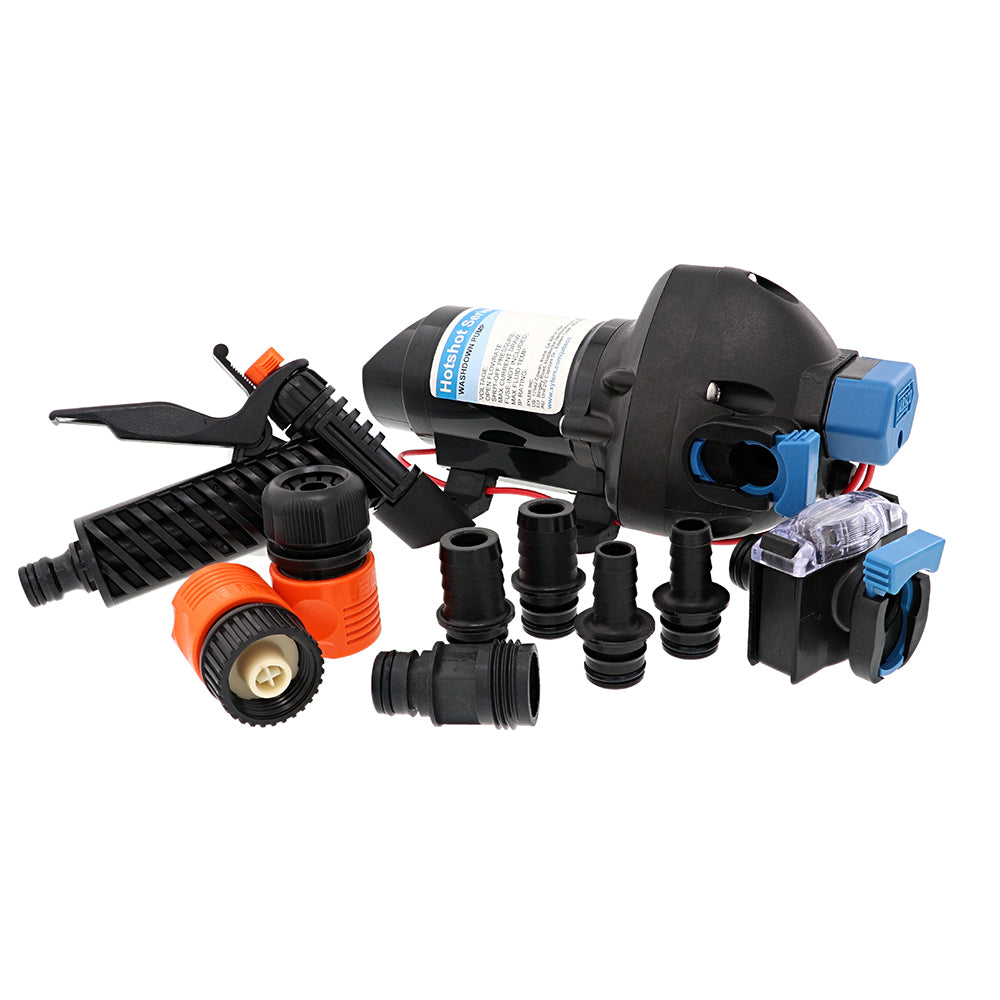

- Accessories Included: Trigger nozzle and Quick Connect hose adapters for versatile usage.
- Hose Options: Hose-only versions available for custom setups.
Heavy Duty vs. Standard Models
The HotShot Washdown Pump lineup includes both Heavy Duty (HD) and Standard models to cater to different marine needs. HD models are built with enhanced components such as a wider diameter motor, powder-coated shell, cast aluminum endbells, and a reinforced lower housing, providing superior pressure capability and extended pump life. Standard models offer exceptional performance within an economical footprint, featuring a corrosion-resistant plastic housing to protect the motor.
Safety Information
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
