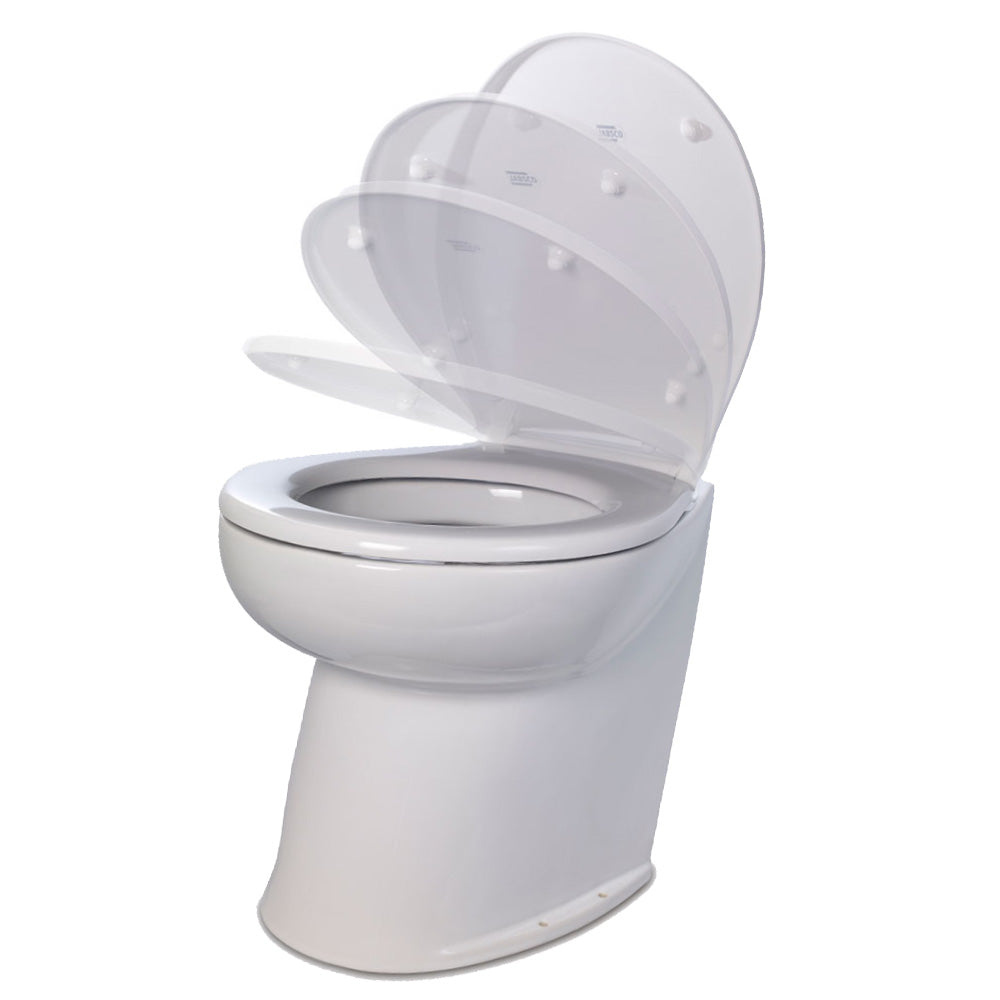

Jabsco Deluxe Flush 17" Angled Back 12V Freshwater Electric Marine Toilet w/Solenoid Valve Soft Close Lid

Upgrade your vessel with the Deluxe Flush 17" Angled Back 12V Freshwater Electric Marine Toilet, designed to bring the comforts of home to your marine adventures. Engineered for boaters who value luxury, efficiency, and silent operation, this marine toilet offers a sleek, space-saving design that minimizes water usage without compromising performance.

Key Features

• 17-inch angled back for optimal space utilization
• Modern, stylish design complements any marine interior
• Soft-closing household-sized seat ensures quiet operation
• Nearly silent flushing mechanism for a peaceful experience
• Freshwater rinse system for efficient waste management
• Powerful, non-clogging flush pump with large bore for effective waste maceration

Specifications

Feature	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Freshwater
Rinse Pump/Solenoid Valve	Solenoid valve
Voltage	12V DC
Recommended Fuse Size (AMP)	25
Flush Control Switch	4-Button Touch Panel
Dimensions (H x W x D)	17.5” / 445mm × 14.8” / 375mm × 17.7” / 450mm
Weight	61.7 lbs / 28 kg
Color	White
Gallons Per Minute	2.9 GPM
Operation Method	Electric
Box Dimensions	23"H x 23"W x 25"L
Weight (Box)	26 lbs
UPC	671880639958

Advanced One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with an intuitive multi-function one-touch control pad, featuring a sleek white bezel that seamlessly integrates with your vessel's interior. The control pad provides four distinct options:

• Fill: Add 1 quart (1 liter) of water to dry the bowl before use, if necessary.
• Quick Flush: Rinses and empties the bowl after light use, utilizing less than 1 quart (1 liter) of water on the dry setting.
• Flush: Provides a thorough rinse and empty after heavy use, using up to 2.5 quarts (2.5 liters) of water. Recommended to use the fill option if the bowl is dry.
• Empty: Completely empties the bowl without adding water, ideal for maintenance or when desired. Includes an anti-odor water lock in the pump housing even when the bowl is dry.

Additionally, holding down both the quick flush and flush buttons for 5 seconds allows you to toggle between leaving the bowl dry or wet after flushing. The dry setting conserves water, while the wet setting ensures the bowl is ready for the next use.

Efficient Rinse System

• Includes a solenoid valve assembly compatible with any existing pressurized freshwater system delivering 2.9 GPM (11 LPM) or higher.
• Dual non-return valves in the solenoid valve prevent potential backflow from the toilet into the freshwater system, ensuring system integrity.

Additional Resources

Download the Owner's Manual (PDF)
