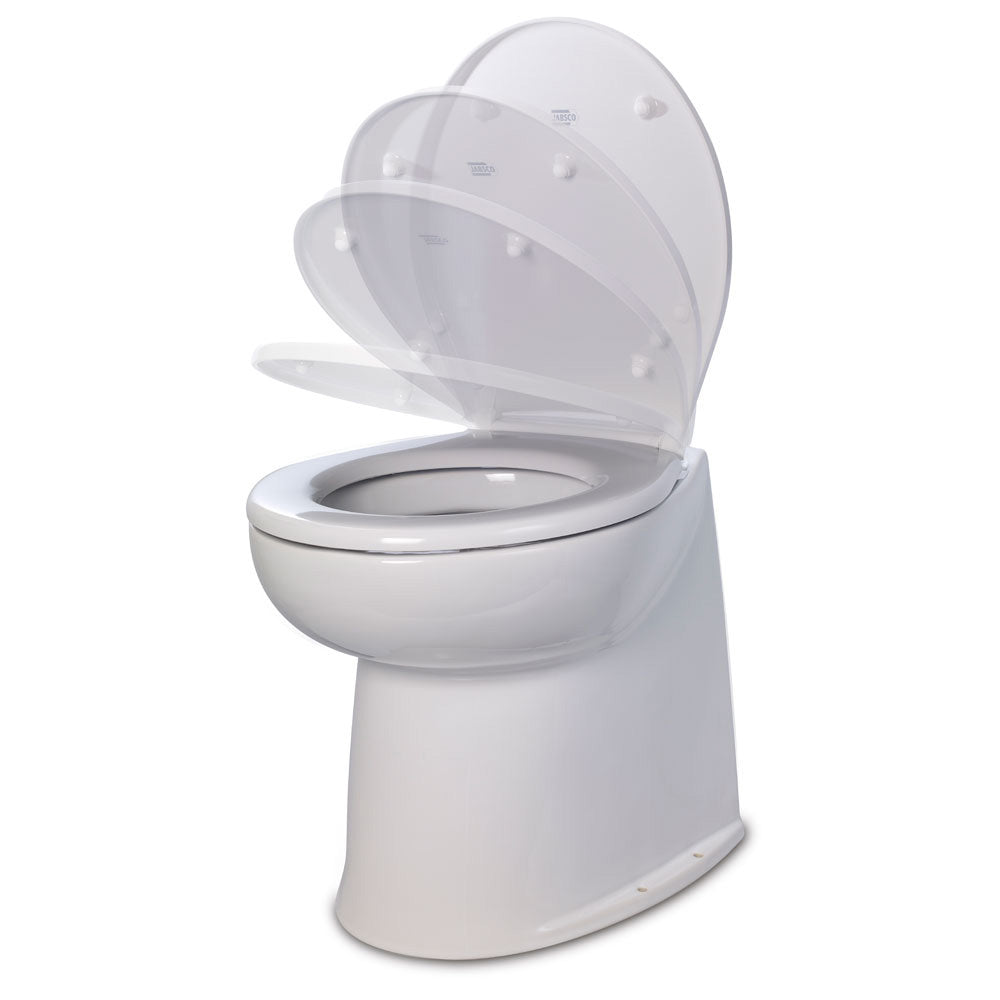

Jabsco Deluxe Flush 14" Straight Back 24V Raw Water Electric Marine Toilet w/Remote Rinse Pump Soft Close Lid

Upgrade your vessel's bathroom experience with the Deluxe Flush 14" Straight Back 24V Raw Water Electric Marine Toilet. Designed for boating enthusiasts who demand both luxury and functionality, this marine toilet combines a sleek, space-saving design with efficient water usage and whisper-quiet operation, ensuring maximum comfort and convenience on every voyage.

Key Features

• 14" straight back for easy installation and comfortable use
• Modern, space-saving design that complements any marine interior
• Household-sized soft-closing seat for added comfort and durability
• Virtually silent operation, perfect for maintaining a peaceful onboard environment
• Raw water rinse model adaptable for sea, river, or lake water sources
• Powerful non-clogging large bore flush pump that effectively macerates waste

Product Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Raw water
Rinse Pump/Solenoid Valve	Remote Rinse Pump
Voltage DC	24V DC
Recommended Fuse Size (AMP)	15
Flush Control Switch	4-Button Touch Panel
Height	14.4” / 366 mm
Width	14.8” / 375 mm
Depth	17.7” / 450 mm
Weight	59.5 lbs / 27 kg
Color	White
Operation Method	Electric
Rinse Water	RAW
Volts	24

Advanced One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with an intuitive multi-function, one-touch control pad. Featuring a clean white bezel and a standard surface mount unit, this control pad offers seamless operation with four distinct options: Fill, Quick Flush, Flush, and Empty. Customize your toilet's behavior to either conserve water by leaving the bowl dry or ensure readiness for the next use by keeping it wet.

Control Pad Options

• Fill: Adds 1 quart (1 liter) of water when the bowl is dry, preparing it for use.
• Quick Flush: Performs a light flush by first rinsing and then emptying the bowl, using less than 1 quart (1 liter) of water on the dry setting.
• Flush: Executes a heavy flush by rinsing and emptying the bowl twice, utilizing 2.5 quarts (2.5 liters) of water. It's recommended to use the Fill option before heavy use if the bowl is dry.
• Empty: Empties the bowl without adding water, ideal for when you want to ensure no excess water is used. An anti-odor water lock remains in the pump housing even when the bowl is dry.

To toggle between the dry and wet bowl settings, simply hold down both the Quick Flush and Flush buttons for 5 seconds.

Efficient Rinse Options

• Includes a remote-mounted, self-priming pump capable of sourcing rinse water from the sea, river, or lake.
• Comes complete with a Jabsco Pumpgard strainer to prevent debris from entering the system.

Additional Information

• Color: White
• Operation Method: Electric
• Rinse Water: RAW
• Volts: 24

For detailed installation instructions and maintenance tips, please refer to the Owner's Manual (PDF).
