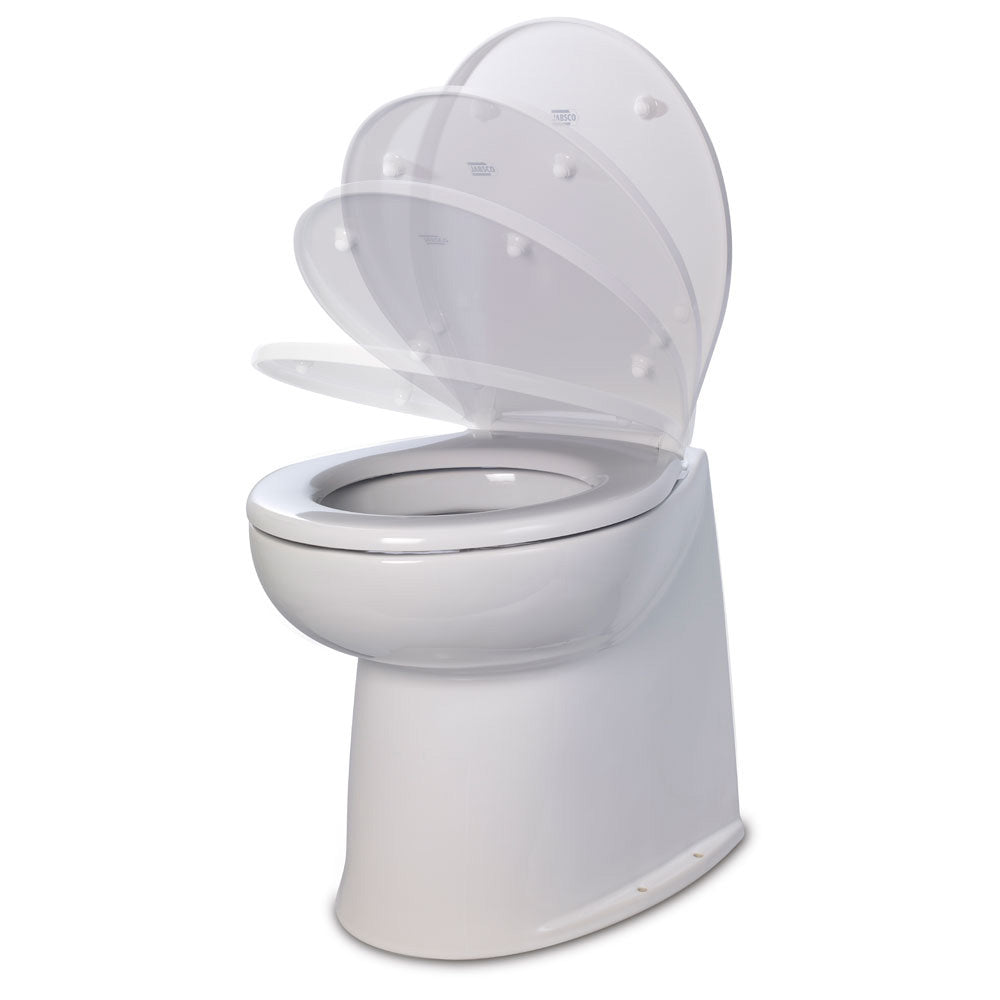

Jabsco Deluxe Flush 14" Straight Back 24V Freshwater Electric Marine Toilet w/Solenoid Valve Soft Close Lid

Enhance your marine experience with the Jabsco Deluxe Flush 14" Straight Back 24V Freshwater Electric Marine Toilet. Designed for boat owners who value both luxury and functionality, this electric marine toilet offers a sleek, space-saving design, efficient water usage, and quiet operation, ensuring comfort and convenience while at sea.

Key Features

• 14" Straight back design for easy installation and efficient use of space
• Stylish and modern appearance that complements any marine interior
• Household-sized soft-closing seat for added comfort and noise reduction
• Operates virtually silently, providing a peaceful onboard environment
• Freshwater rinse model minimizes water usage without compromising performance
• Powerful, non-clogging large bore flush pump that macerates waste effectively

Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Freshwater
Rinse Pump/Solenoid Valve	Solenoid valve
Voltage DC	24V
Recommended Fuse Size	15 AMP
Flush Control Switch	4-Button Touch Panel
Dimensions (H x W x D)	14.4” / 14.8” / 17.7” (366mm x 375mm x 450mm)
Weight	55.1 lbs / 25 kg
Color	White
Gallons Per Minute	2.9 GPM (11 LPM)
Operation Method	Electric

One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with a user-friendly, multi-function one-touch control pad featuring a clean white bezel. This intuitive control system offers four distinct options: Fill, Quick Flush, Flush, and Empty, allowing you to customize the toilet's operation based on your needs.

With the one-touch control pad, you can easily set the toilet to leave the bowl either dry or wet after flushing. The dry setting conserves water by minimizing usage, while the wet setting ensures the bowl is ready for the next use by automatically refilling after flushing. Switching between these modes is simple—just hold down both the Quick Flush and Flush buttons for 5 seconds.

Control Pad Options

• Fill: Add 1 quart (1 liter) of water to the bowl when it is dry, if necessary.
• Quick Flush: Ideal for light use, it first rinses and then empties the bowl using less than 1 quart (1 liter) of water on the dry setting.
• Flush: Suitable for heavy use, it rinses and empties the bowl twice, using approximately 2.5 quarts (2.5 liters) of water. If the bowl is dry, it's recommended to add water using the Fill option before flushing.
• Empty: Completely empties the bowl without adding any water, useful whenever you need to clear the bowl manually. An anti-odor water lock ensures the pump housing remains odor-free even when the bowl is dry.

Rinse System

• Includes a solenoid valve assembly for seamless integration with any existing pressurized freshwater system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve is equipped with dual non-return valves to prevent any backflow, ensuring your freshwater system remains protected from potential contamination

Additional Specifications

• Color: White
• Gallons Per Minute: 2.9
• Operation Method: Electric
• Rinse Water: Fresh
• Volts: 24V

Download the Owner's Manual (PDF) for detailed installation and operational instructions.
