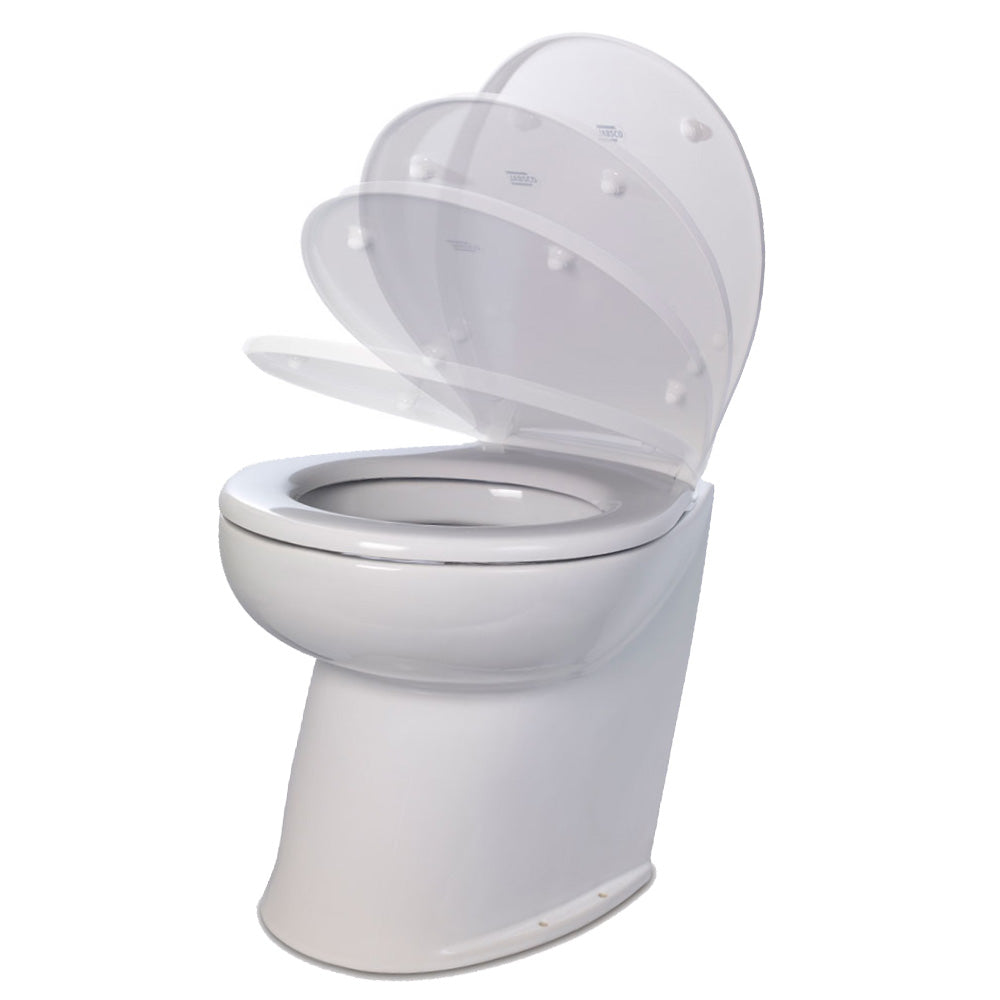

Jabsco Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet w/Remote Rinse Pump Soft Close Lid

The Jabsco Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet combines luxury and functionality, providing boat owners with a reliable and stylish solution for onboard sanitation. Engineered for efficiency and comfort, this marine toilet ensures minimal water usage while maintaining a quiet operation, making it an ideal choice for various watercraft.

Key Features

• 14" angled back design for optimal space utilization
• Sleek and modern appearance suitable for any marine interior
• Soft-closing household-sized seat for added comfort
• Silent operation ensures a peaceful onboard environment
• Compatible with sea, river, or lake water rinse models
• Powerful flush pump with large bore to prevent clogs and macerate waste effectively

Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Raw water
Rinse Pump/Solenoid Valve	Remote Rinse Pump
Voltage DC	24V DC
Recommended Fuse Size	15 AMP
Flush Control Switch	4-Button Touch Panel
Height	14.4” / 366 mm
Width	14.8” / 375 mm
Depth	17.7” / 450 mm
Weight	57.3 lbs / 26 kg
Color	White
Operation Method	Electric
Rinse Water	RAW
Volts	24

One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with an intuitive multi-function, one-touch control pad, featuring a clean white bezel that seamlessly integrates with your boat’s interior. The control pad offers four distinct options:

• Fill: Add 1 quart (1 liter) of water to the bowl when it’s dry, ensuring it’s ready for use.
• Quick Flush: Performs a light flush that first rinses and then empties the bowl, using less than 1 quart (1 liter) of water on the dry setting.
• Flush: Conducts a thorough flush by rinsing and emptying the bowl twice after heavy use, utilizing approximately 2.5 quarts (2.5 liters) of water. It’s recommended to fill the bowl before use if it’s dry.
• Empty: Completely empties the bowl without adding any water, ideal for when you need to clear the bowl without rinsing. An anti-odor water lock remains in the pump housing even when the bowl is dry.

By holding down both the quick flush and flush buttons for 5 seconds, you can toggle between leaving the bowl dry or wet after flushing. The dry setting conserves water, while the wet setting ensures the bowl is always ready for the next user.

Rinse Options

• Includes a remote-mounted, self-priming pump compatible with sea, river, or lake water sources for rinsing
• Comes with a Jabsco Pumpgard strainer to prevent debris from entering the rinse system

Additional Information

For detailed instructions and maintenance guidelines, please refer to the Owner's Manual (PDF).
