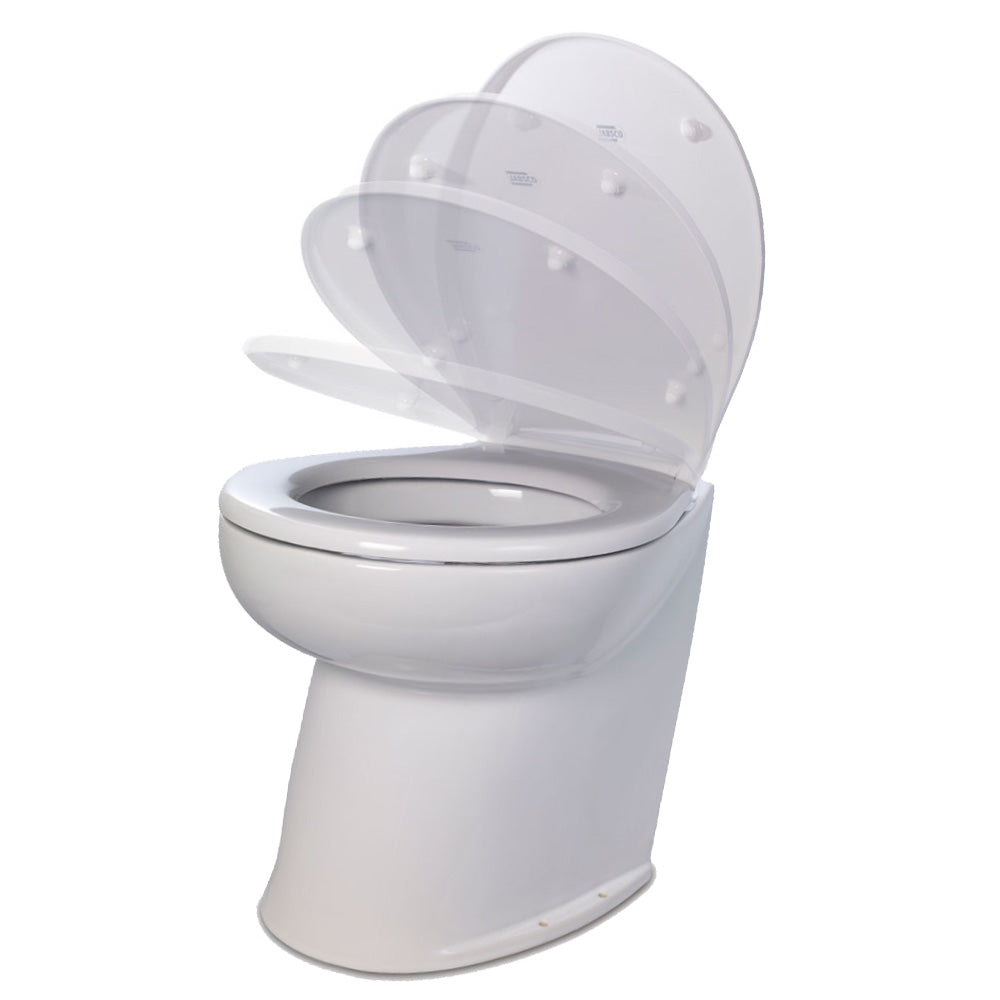

Jabsco Deluxe Flush 14" Angled Back 24V Freshwater Electric Marine Toilet w/Solenoid Valve Soft Close Lid

Enhance your onboard living experience with the Deluxe Flush 14" Angled Back 24V Freshwater Electric Marine Toilet. Designed for boat owners who value luxury, efficiency, and silent operation, this marine toilet combines a sleek, space-saving design with advanced features to provide comfort and reliability at sea.

Key Features

• 14" Angled Back for optimal space utilization
• Space-saving and stylish design suitable for any marine interior
• Household-sized soft closing seat for added comfort
• Virtually silent operation ensures a peaceful environment
• Freshwater rinse system minimizes water usage
• Powerful non-clogging large bore flush pump effectively macerates waste

Technical Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft Close
Rinse Type	Freshwater
Rinse Pump/Solenoid Valve	Solenoid Valve
Voltage DC	24V DC
Recommended Fuse Size	15 AMP
Flush Control Switch	4-Button Touch Panel
Height	14.4” / 366 mm
Width	14.8” / 375 mm
Depth	17.7” / 450 mm
Weight	59.5 lbs / 27 kg
Color	White
Gallons Per Minute	2.9 GPM
Operation Method	Electric
Volts	24V

One-Touch Control Pad

The Deluxe Flush marine toilet features an intuitive multi-function one-touch control pad. Mounted with a clean white bezel, the control pad allows for easy operation with four distinct options:

• Fill: Add 1 quart (1 liter) of water to the bowl when it’s dry, if necessary.
• Quick Flush: Ideal for light use, it first rinses and then empties the bowl using less than 1 quart (1 liter) of water on the dry setting.
• Flush: Perfect for heavy use, it rinses and empties the bowl twice, utilizing approximately 2.5 quarts (2.5 liters) of water. If the bowl is dry, it’s recommended to perform a fill before use.
• Empty: Empties the bowl without adding any water, whenever desired. An anti-odor water lock remains in the pump housing even when the bowl appears dry.

You can customize the control pad settings to keep the bowl either dry or wet after flushing. Holding down both the quick flush and flush buttons for 5 seconds toggles between these modes. The dry setting helps minimize water usage, while the wet setting prepares the bowl for the next user by automatically filling it after flushing.

Rinse Options

• Equipped with a solenoid valve assembly for seamless integration with existing pressurized water systems capable of delivering 2.9 GPM (11 LPM) or more.
• The solenoid valve includes dual non-return valves to safeguard your freshwater system from potential backflow contamination.

Download the Owner's Manual (PDF)
