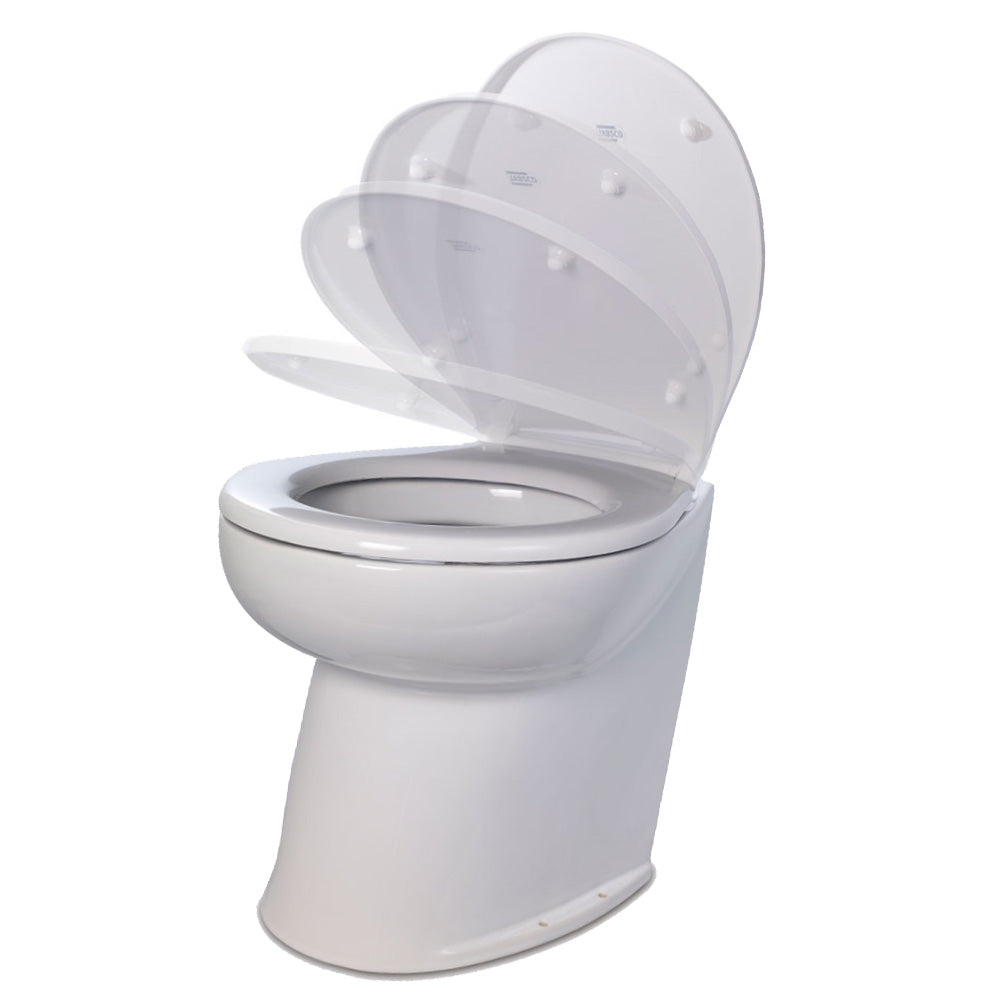

Jabsco Deluxe Flush 14" Angled Back 12V Raw Water Electric Marine Toilet w/Remote Rinse Pump Soft Close Lid

Upgrade your marine vessel's comfort with the Jabsco Deluxe Flush 14" Angled Back 12V Raw Water Electric Marine Toilet. Engineered for boaters seeking both luxury and functionality, this high-end toilet offers a sleek, space-efficient design, low water consumption, and near-silent operation, ensuring a pleasant onboard experience.

Features

• 14" angled back design for optimal space utilization
• Elegant and compact styling enhances marine interiors
• Soft-closing, household-sized seat for added comfort
• Quiet operation minimizes noise disturbances on board
• Flexible rinse options using sea, river, or lake water
• Powerful non-clogging large bore flush pump effectively macerates waste

Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Raw water
Rinse Pump/Solenoid Valve	Remote Rinse Pump
Voltage DC	12V DC
Recommended Fuse Size (AMP)	25
Flush Control Switch	4-Button Touch Panel
Dimensions (H x W x D)	14.4” x 14.8” x 17.7” / 366mm x 375mm x 450mm
Weight	57.3 lbs / 26 kg
Color	White
Operation Method	Electric
Box Dimensions	23"H x 23"W x 25"L
UPC	671880640022

One-Touch Control Pad

The Deluxe Flush marine toilet features an intuitive multi-function, one-touch control pad. Mounted on a sleek white bezel, the control pad allows easy access to four essential functions: fill, quick flush, flush, and empty.

Users can customize the toilet settings to either keep the bowl dry or wet after flushing. The dry setting conserves water by minimizing usage, while the wet setting ensures the bowl is ready for the next use by automatically refilling it. Switching between these modes is effortless—simply hold down both the quick flush and flush buttons for five seconds.

Control Pad Options

• Fill: Adds 1 quart (1 liter) of water to the bowl when dry, if necessary.
• Quick Flush: Performs a light flush by rinsing and then emptying the bowl, using less than 1 quart (1 liter) of water on the dry setting.
• Flush: Provides a thorough flush by rinsing and emptying the bowl twice after heavy use, utilizing approximately 2.5 quarts (2.5 liters) of water. If the bowl is dry, a fill is recommended before use.
• Empty: Clears the bowl without adding water, maintaining an anti-odor water lock in the pump housing even when the bowl appears dry.

Rinse Options

• Equipped with a remote-mounted, self-priming pump capable of sourcing rinse water from the sea, river, or lake.
• Includes a Jabsco Pumpgard strainer to protect the rinse system from debris.

Owner's Manual (PDF)
