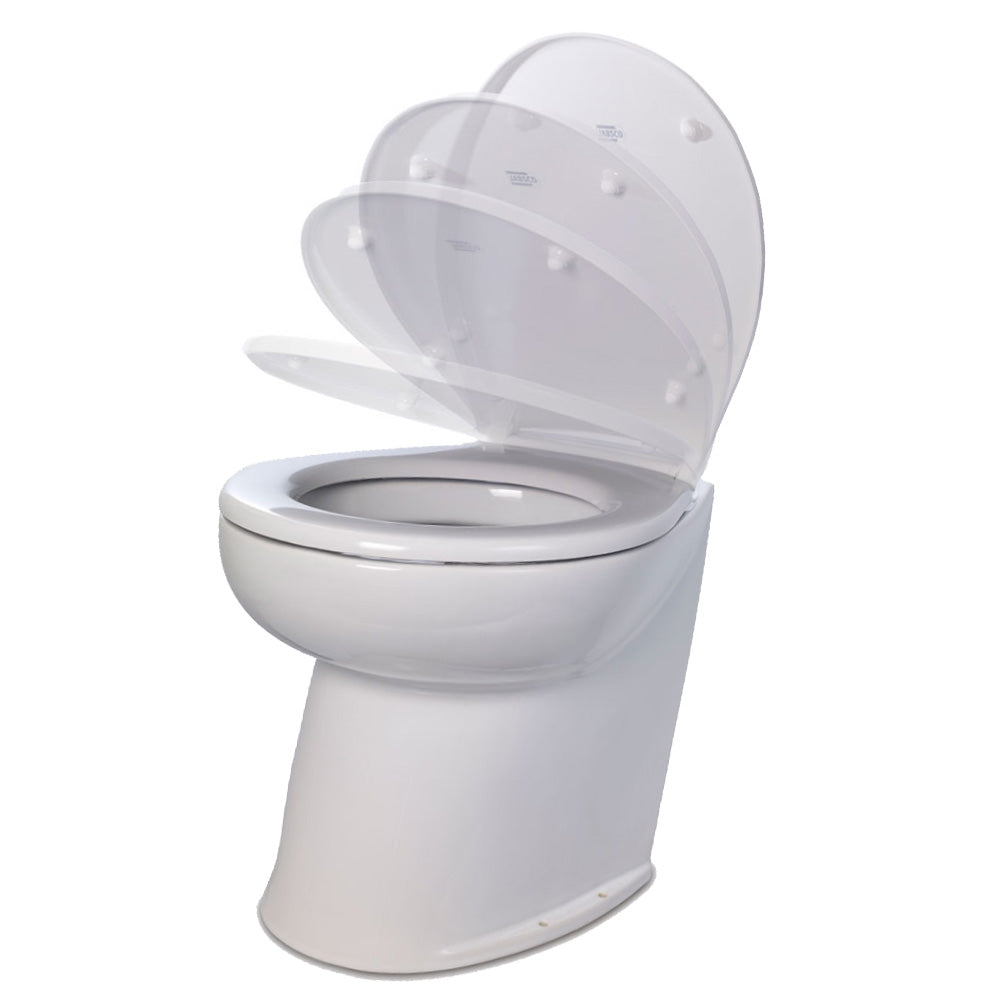

Jabsco Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet w/Solenoid Valve Soft Close Lid

Enhance your marine experience with the Jabsco Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet. Combining luxury, efficiency, and reliability, this electric marine toilet ensures comfort and convenience onboard, making it an ideal choice for discerning boaters seeking top-tier sanitary solutions.

Key Features

• 14-inch angled back design for optimal space utilization
• Sleek, space-saving aesthetic suitable for modern marine interiors
• Household-sized soft-closing seat for added comfort
• Whisper-quiet operation ensures minimal disturbance
• Freshwater rinse system for hygienic cleaning
• Powerful, non-clogging large bore flush pump that macerates waste effectively

Detailed Specifications

Attribute	Details
Bowl Size	Domestic
Lid	Soft close
Rinse Type	Freshwater
Rinse Pump/Solenoid Valve	Solenoid valve
Voltage	12V DC
Recommended Fuse Size	25 AMP
Flush Control Switch	4-Button Touch Panel
Dimensions (H x W x D)	14.4” x 14.8” x 17.7” / 366mm x 375mm x 450mm
Weight	59.5 lbs / 27 kg
Color	White
Gallons Per Minute	2.9 GPM / 11 LPM
Operation Method	Electric
Rinse Water	Fresh
Box Dimensions	23"H x 23"W x 25"L
Weight	24 lbs
UPC	671880640008

Advanced One-Touch Control Pad

The Deluxe Flush marine toilet is equipped with an intuitive multi-function, one-touch control pad featuring a clean white bezel that seamlessly integrates with your vessel's interior. This control pad offers four distinct options to cater to your specific needs:

• Fill: Adds 1 quart (1 liter) of water when the bowl is dry, preparing it for use.
• Quick Flush: Performs a light flush that first rinses and then empties the bowl using less than 1 quart (1 liter) of water, ideal for minimal use.
• Flush: Executes a thorough flush that rinses and empties the bowl twice after heavy use, utilizing approximately 2.5 quarts (2.5 liters) of water.
• Empty: Empties the bowl without adding any water, suitable for managing waste on demand. An anti-odor water lock remains active even when the bowl appears dry.

Additionally, by holding down both the Quick Flush and Flush buttons for 5 seconds, you can toggle between the bowl being left dry or wet after each flush. The dry setting conserves water, while the wet setting ensures the bowl is ready for the next use without additional filling.

Efficient Rinse Options

• Comes with a solenoid valve assembly compatible with any existing pressurized freshwater system delivering 2.9 GPM (11 LPM) or higher
• Dual non-return valves in the solenoid valve prevent backflow, safeguarding your freshwater system from potential contamination

Additional Information

For comprehensive guidance on installation, operation, and maintenance, please refer to the Owner's Manual (PDF).
