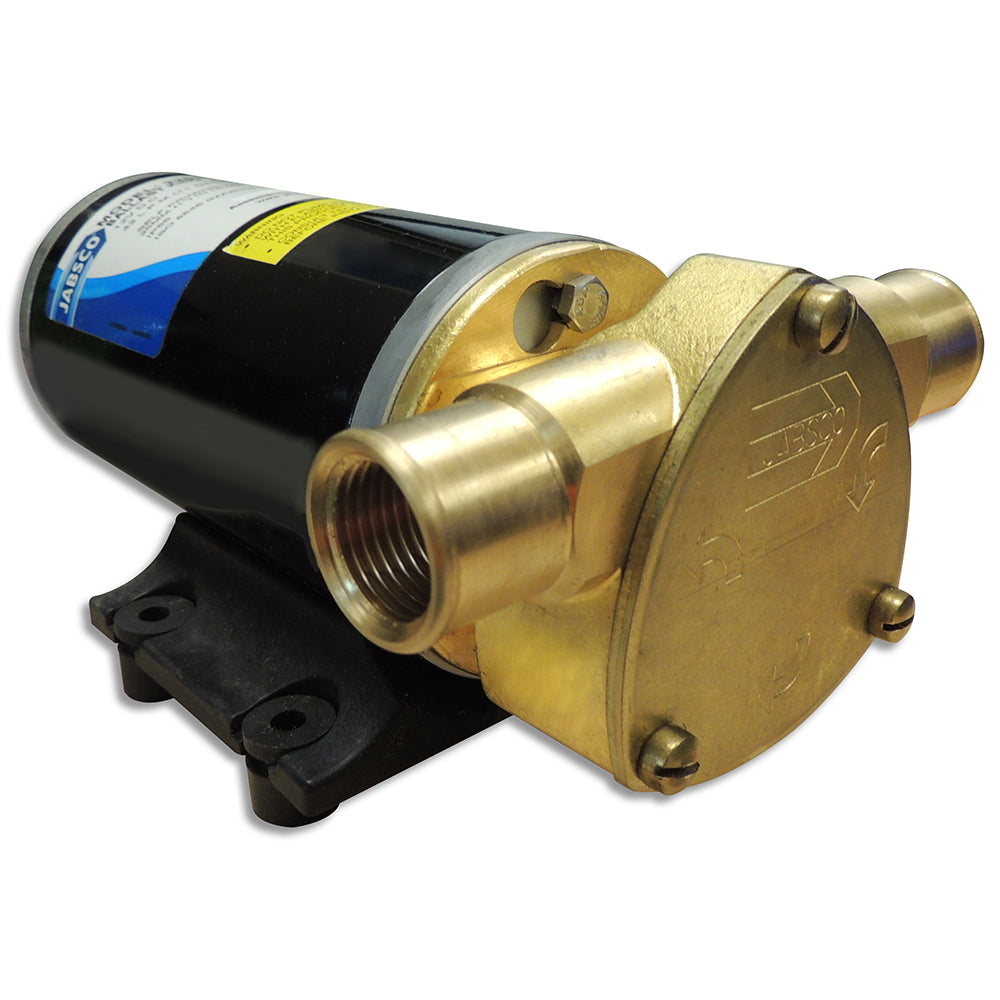

Jabsco Ballast King Bronze DC Pump w/o Switch - 15 GPM

The Ballast King Bronze DC Pump is a reliable and efficient solution for managing ballast in your wakeboard and ski boats. Designed for durability and performance, this pump ensures quick and seamless water transfer to and from your ballast tanks, enhancing your boating experience.

Key Features

• Flow Rate: 15 US gallons per minute (57 Litres/min)
• Self-Priming: Capable of self-priming from dry up to 1.2 meters (4 feet)
• Ballast Addition: Adds approximately 125 lbs (56 kgs) of ballast per minute
• Reversible Operation: Easily switches between filling and emptying ballast tanks
• Durable Design: Simple construction reduces the number of wearing parts for extended lifespan
• Marine-Grade: Complies with ISO 8846 marine ignition protection standards

Applications

The Ballast King is specifically engineered to handle water transfer for Wakeboard Liquid Ballast Tanks. With its impressive flow rate of 15 gallons per minute, it can fill most ballast tanks in approximately five minutes. Additionally, the pump reverses to efficiently pump water out when needed. Equipped with a Run-Dry Protection Device (patent pending), the Ballast King automatically shuts off to prevent impeller damage if the pump is left on after the ballast tank is empty.

Specifications

Feature	Details
Flow Rate	15 GPM
Voltage	12 VDC
Amp Draw	19 Amps
Fuse Size	25 Amps
Duty Cycle	30 Minutes Max
Motor Type	Permanent Magnet Type, Fully Enclosed Stainless Steel Shaft, Ball Type Shaft Bearing, Reversible
Body Materials	Bronze
Impeller	Jabsco Neoprene Compound
Seal	Lip Type
Ports	1/2" Internal Pipe Threads, 1" External Hose Barb
Dimensions	3 5/8" x 8" x 4 3/4" (inches)
Box Dimensions	6" H x 6" W x 12" L
Weight	8.6 lbs
UPC	671880626286

Safety Warning

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Additional Resources

For more detailed information, download the Brochure (PDF).
