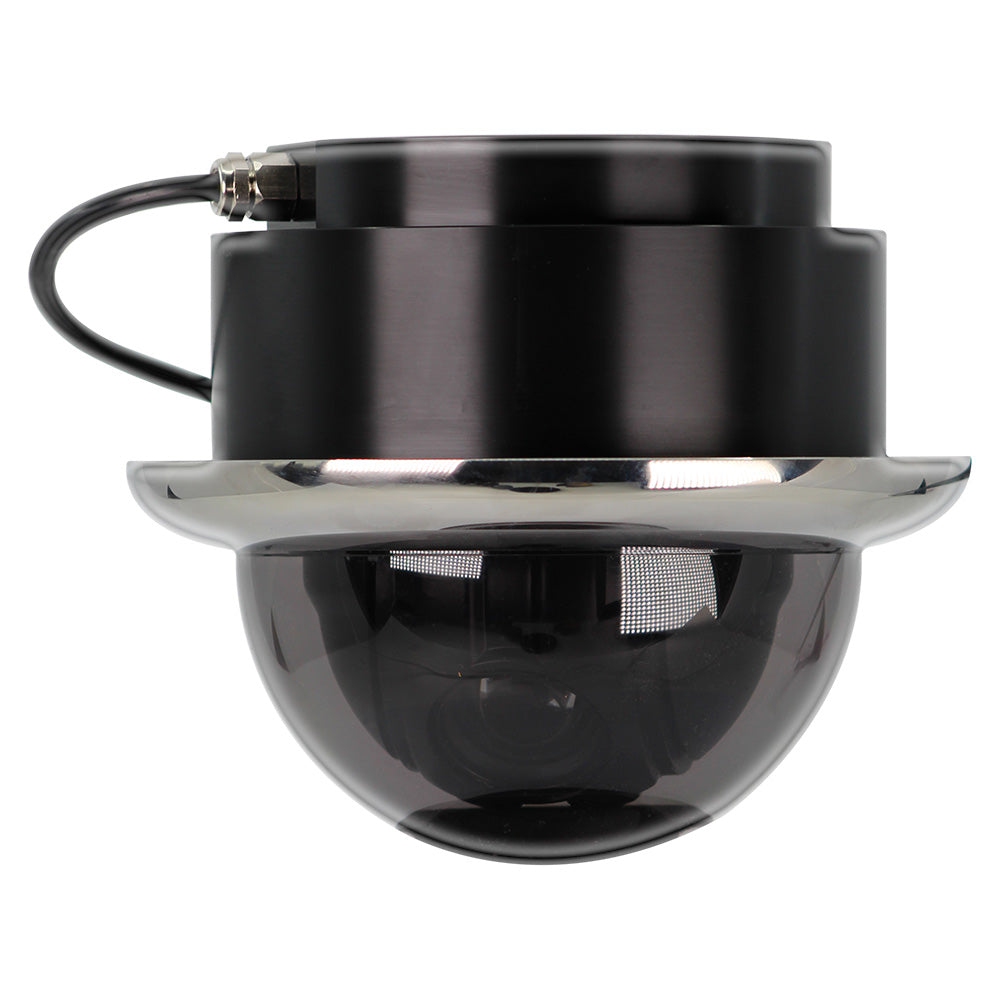

Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format
Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The IRISx106 Compact Marine PTZ Dome Camera is the ultimate surveillance solution for maritime environments. Combining high-resolution imaging with robust marine-grade construction, this versatile camera ensures reliable performance and seamless integration into your boat's surveillance system.
Unmatched Versatility and Performance
The IRISx106 series stands out as the most compact PTZ dome cameras tailored for marine applications. Designed for swift and smooth variable speed control, these cameras effortlessly adapt to different video formats, providing flexibility to meet your specific maritime surveillance needs.
Advanced Video Compatibility
Equipped with a high-resolution 1/3” Panasonic CMOS sensor, the IRIS106 delivers exceptional image quality with a resolution of 1000TVL. The camera supports multiple video output formats, including:
- Analog (CVBS)
- AHD
- HD-TVI
- HD-CVI
This extensive compatibility ensures seamless integration with various Multi-Function Displays (MFDs) and recording solutions. In analog mode, the IRIS106 provides a clear video feed to any composite video input, while switching to HD-TVI enables real-time 1080P high-definition video with Hybrid recorders or TVIHDMI encoders.
Intuitive Control Options
Manage the IRIS106 effortlessly using your preferred control method:
- IRIS595 Joystick: Precise and responsive control for pan, tilt, and zoom functions.
- TE01 Rotary Controller: Easy-to-use interface for smooth camera adjustments.
- Iris HVR Interface: Integrated control through the Iris HVR system.
Communication is maintained via a reliable two-wire RS485 serial data connection, ensuring stable and uninterrupted control.
Durable and Discreet Design
The IRIS106 is crafted from high-quality materials to withstand harsh marine environments. Key design features include:
- 316L Stainless Steel Bezel: Marine-grade stainless steel with a high-polish finish for durability and elegance.
- Smoke Acrylic Dome: Lightweight and resilient dome housing ensures discreet installation without compromising aesthetics.
- ABS Plastic Housing: Robust construction provides long-lasting performance.

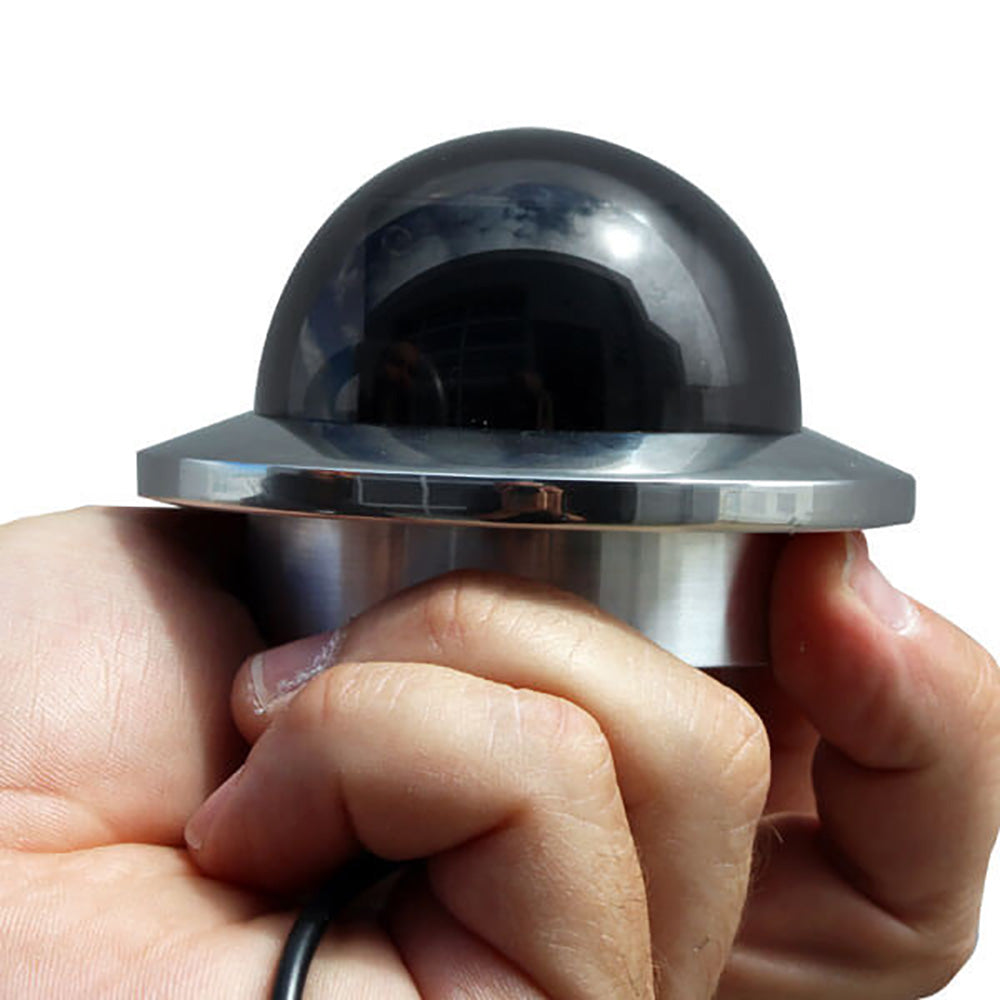

Its compact size (86 mm) allows for easy installation on bulkheads or other strategic locations, making it ideal for monitoring decks, companionways, tenders, and engine rooms.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Lens | F1.8 / F=4.9mm 49mm |
| Image Sensor | 1/3” Panasonic CMOS |
| Image Processing | Composite |
| Effective Pixels | 1944(H) x 1092(V) (~2.12M Pixels) |
| Resolution | 1000TVL |
| Minimum Illumination | 0.1 Lux (Color) / 0.01 Lux (B/W) |
| Day/Night Mode | Auto / Day / Night |
| S/N Ratio | >48dB |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Wide Dynamic Range (WDR) | Off / Low / Medium / High (WDR SNR 120dB) |
| Backlight Compensation (BLC) | Off / On |
| 3D Digital Noise Reduction (DNR) | Off / Low / Medium / High |
| Image Mirroring | Horizontal Flip / Vertical Flip |
| Automatic Gain Control (AGC) | 0-32 |
| Pan Range | 360-degree Continuous Rotation at 0.5300 degrees/sec |
| Tilt Range | 0 to 90 degrees at 0.5300 degrees/sec |
| Communication Protocol | PELCO-D / RS485 Serial Data |
| Compatibility | All MFDs with Composite Video Input |
| Power Requirements | +/-12VDC, Max 0.8A |
| Operating Temperature | -20°C to +60°C |
| Dimensions | Bezel OD 154mm, Panel Cutout 122mm, Depth Behind Panel 58mm (IRIS4106 model requires additional space for RJ45 Connector), Draft 73mm |
| Ingress Protection | IP66 |
| Weight | 1.1Kg |
| Materials | 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing |
Easy Installation and Mounting

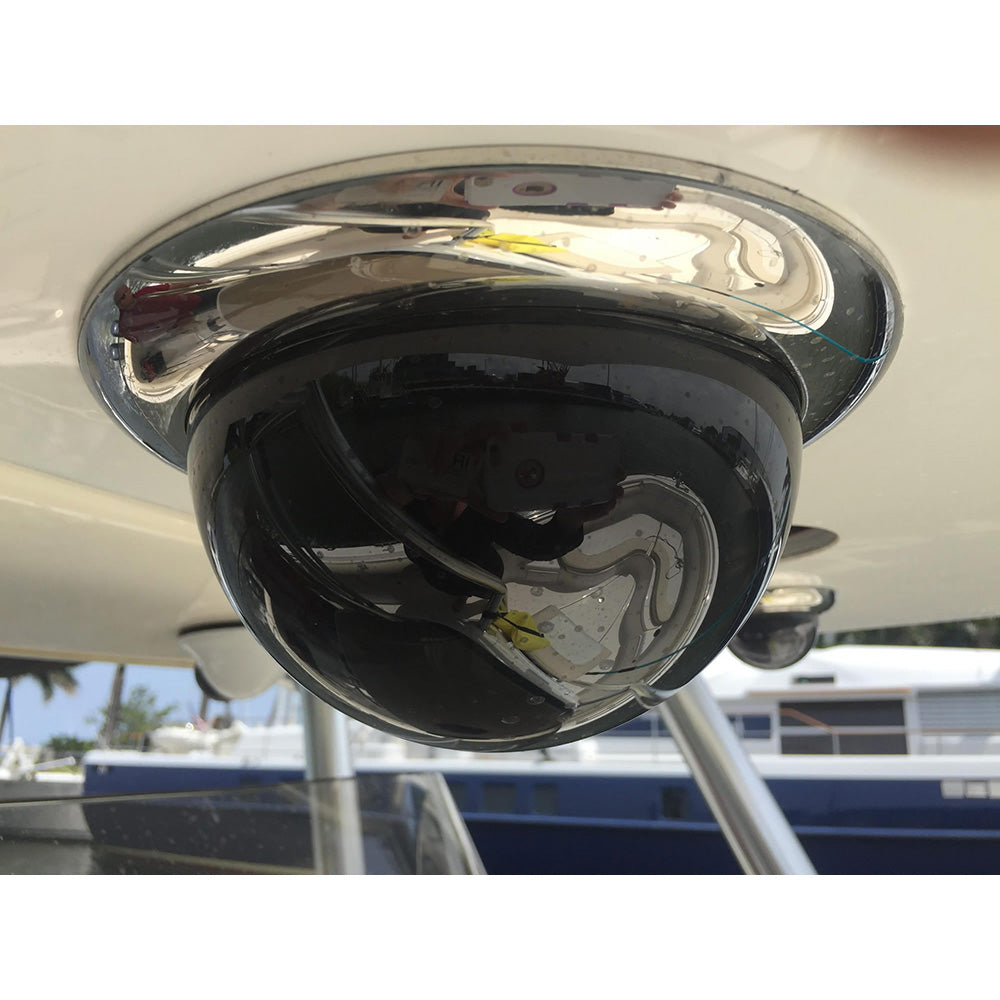

Installing the IRIS106 is straightforward, thanks to its compact design and versatile mounting options. The standard surface mount bracket (Part Number: BRK106) allows for direct installation on bulkheads, making it ideal for areas like engine rooms where recessed mounting is not feasible. The camera’s low power consumption ensures efficient operation without overloading your boat’s electrical system.
Elegant and Functional Aesthetics
The high-polish stainless steel bezel not only provides a sleek appearance but also adds durability against the harsh marine environment. The smoke acrylic dome maintains a low profile, ensuring the camera remains discreet while delivering top-notch surveillance capabilities.
Comprehensive Monitoring Solutions
The IRIS106 is perfect for various monitoring applications on your vessel, including:
- Decks
- Companionways
- Tenders
- Engine Rooms
- Integrated Onboard Surveillance Systems
Its adaptability and robust design make it a reliable choice for comprehensive maritime security.
Key Features:
- Marine-Grade 316 Stainless Steel Case
- Most Compact PTZ Dome Available (86 mm)
- Analog and Digital Video Output
- Extensive Compatibility with Various Systems
- Simple Installation with Low Power Consumption
- Elegant High-Polish Stainless Steel Finish
- Responsive Pan, Tilt, and Zoom Controls
Download Brochure
