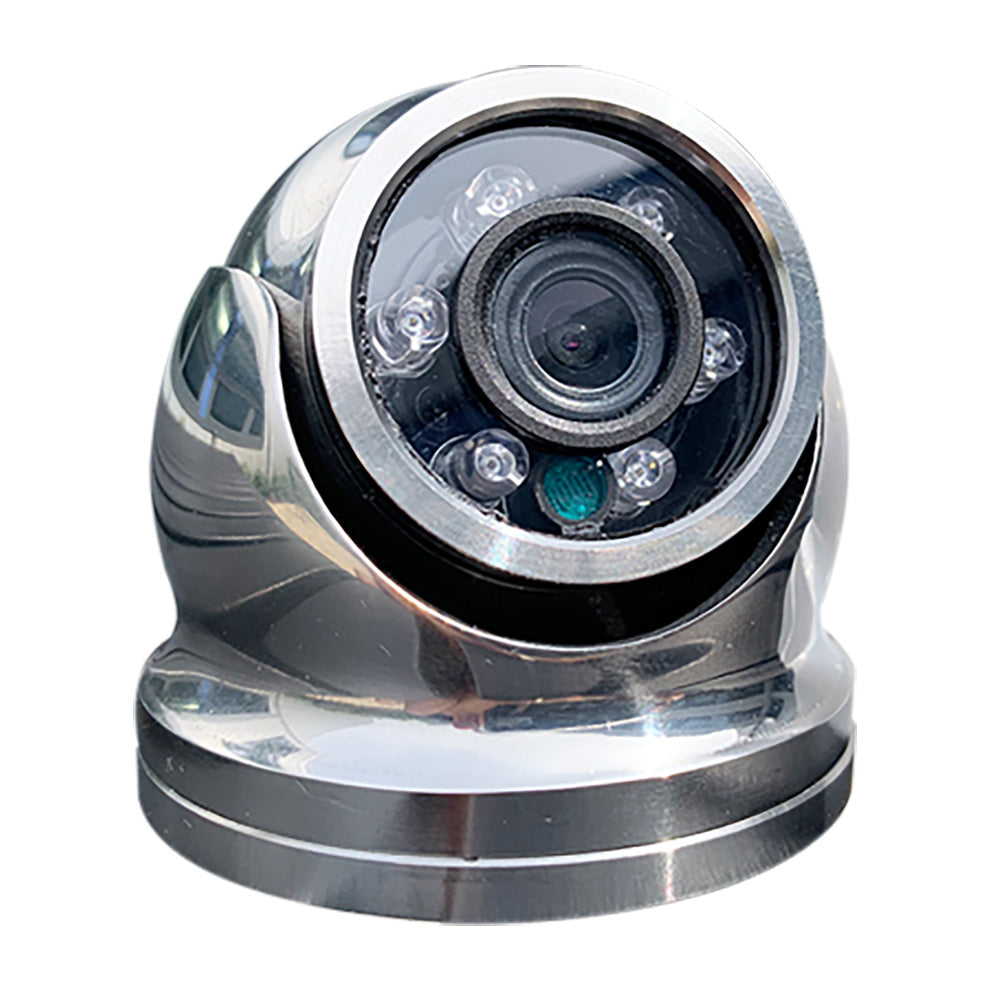

Iris Hi-Resolution Analog Mini Dome Camera - 316 Stainless Steel - CVBS - TVI

The IRIS SX60 Hi-Resolution Analog Mini Dome Camera is engineered for marine environments, combining durability with superior video quality. Crafted from 316 stainless steel, this compact camera is ideal for various maritime applications, ensuring reliable performance on workboats, fishing vessels, luxury yachts, and more.

Product Overview

The IRIS-S060 model within the SX60 range features a versatile 4-in-1 camera module, supporting CVBS, TVI, CVI, and AHD video formats. This multi-format compatibility ensures seamless integration with most marine chart plotters, digital recorders, and monitors, providing flexibility for diverse marine surveillance needs.

High-Definition Video Quality

Experience crystal-clear video with the IRIS-S060's ability to output both standard analog (CVBS) and high-definition formats (HD-TVI, HD-CVI, AHD). Achieve up to 1080P resolution in real-time without network latency, ensuring sharp and reliable video feeds for critical monitoring tasks.

Lens Options for Optimal Coverage

Customize your surveillance setup with a variety of lens options:

Lens Type	Focal Length	Horizontal Field of View (HFOV)
Standard	3.6mm	80°
Wide-Angle	2.1mm	110°
Ultra-Wide-Angle	1.8mm	125°

These lens options allow you to tailor the camera's field of view to suit specific monitoring areas, whether it's deck surveillance, engine room oversight, or docking assistance.

Robust Marine-Grade Construction

The IRIS-S060 is housed in a 316 stainless steel casing, renowned for its exceptional resistance to corrosion and harsh marine conditions. This rugged construction makes it the perfect choice for environments exposed to saltwater, moisture, and extreme weather, ensuring longevity and consistent performance.

Compact and Unobtrusive Design

Measuring just 58mm in height and 60mm in diameter, the IRIS-S060's sleek and compact design allows for discreet installation in tight spaces such as engine rooms, anchor wells, or alongside other critical equipment. Its unobtrusive profile ensures that it blends seamlessly with the vessel's aesthetics without compromising functionality.

Energy Efficient and Reliable

Designed with low power consumption in mind, the IRIS-S060 minimizes energy usage without sacrificing performance. Additionally, it features built-in infrared LED illumination with a range of up to 10 meters, ensuring clear video capture even in low-light conditions.

Technical Specifications

Feature	Specification
Housing Material	316 Stainless Steel
Video Formats	CVBS, TVI, CVI, AHD
Resolution	CVBS: 1000TVL HD-TVI/CVI/AHD: 1080P
Lens Options	3.6mm (80° HFOV) 2.1mm (110° HFOV) 1.8mm (125° HFOV)
Infrared Range	10 meters
Environmental Protection	IP66
Dimensions	58mm (H) x 60mm (Diameter)

Installation and Compatibility

The IRIS-S060 is designed for effortless installation on a variety of marine vessels. When paired with an IRIS HD switcher, HVR, or our TVI to HDMI converter, the camera can be seamlessly connected to high-definition TVs and Multi-Function Displays (MFDs) with digital inputs, including Garmin's 8000 series and Simrad's NSO series.

Its multi-format output ensures compatibility with existing marine electronics, making it a versatile addition to your vessel's surveillance and monitoring systems.

Applications

Whether you require robust surveillance for deck monitoring, engine room oversight, companionway security, or a reliable docking and backup camera, the IRIS-SX60 range offers the perfect solution. Its combination of high-quality video, rugged construction, and compact design makes it an indispensable tool for enhancing the safety and security of your marine operations.

Key Features:

• Marine Grade 316 Stainless Steel Rugged Corrosion-Free Case
• 4-in-1 Video Format Camera Module (CVBS/TVI/CVI/AHD)
• Available in High Polish (Standard), Brushed, or Custom Paint Finish
• Analog Resolution: 1000TVL
• HD Resolution: 1080P in Real Time (No Network Latency)
• Built-In Infrared LED Illumination (10m Range)
• Extremely Low Power Consumption
• IP66 Environmental Protection

Download the Quick Guide (PDF)
