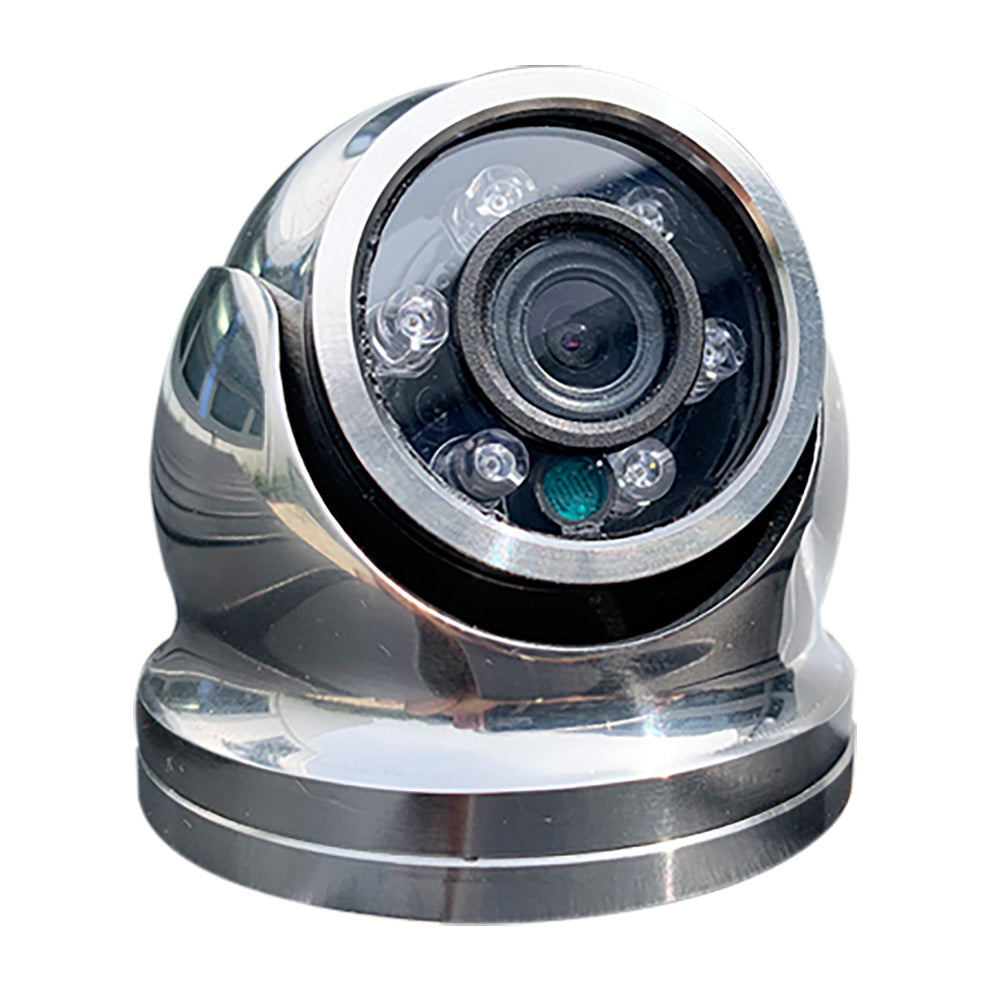

Iris Hi-Resolution Analog Mini Dome Camera - 316 Stainless Steel - CVBS - TVI - 3.6

The IRIS Hi-Resolution Analog Mini Dome Camera in 316 Stainless Steel is the perfect solution for marine and boating enthusiasts seeking reliable and high-quality surveillance. Designed specifically for harsh marine environments, this compact camera delivers exceptional video performance and seamless compatibility with a wide range of marine electronics.

Exceptional Build Quality

Constructed from marine-grade 316 stainless steel, the IRIS-S060 dome camera is built to withstand the corrosive conditions of the sea. Its rugged, corrosion-free case ensures long-lasting performance, making it ideal for use on workboats, fishing vessels, passenger ships, luxury yachts, and mega yachts alike.

Advanced Video Formats

The IRIS-S060 features a versatile 4-in-1 camera module, supporting CVBS, TVI, CVI, and AHD formats. This multi-format capability guarantees maximum compatibility with most marine chart plotters, digital recorders, and monitors, allowing you to integrate the camera seamlessly into your existing marine electronics setup.

High-Definition Output

Whether you prefer analog video (CVBS) or high-definition formats (HD-TVI, HD-CVI, AHD), the IRIS-S060 delivers up to 1080P resolution in real-time without network latency. When paired with an IRIS HD switcher, HVR, or our TVI to HDMI converter, you can easily connect the camera to HD TVs and multifunction displays (MFDs) with digital inputs, such as Garmin's 8000 series or Simrad's NSO Series.

Versatile Lens Options

Equipped with a standard 3.6mm lens offering an 80° horizontal field of view (HFOV), the IRIS-S060 provides clear and comprehensive surveillance. For applications requiring a wider view, you can choose from the 2.1mm lens (110° HFOV) or the ultra-wide 1.8mm lens (125° HFOV) options, ensuring optimal coverage for any monitoring needs.

Compact and Discreet Design

Measuring just 58mm in height and 60mm in diameter, the IRIS-S060's miniature design allows for unobtrusive installation in tight spaces such as engine rooms, anchor wells, or deck areas. Its sleek profile ensures that it blends seamlessly with the aesthetic of any vessel.

Reliable Performance in All Conditions

Feature	Description
Durable Construction	Marine-grade 316 stainless steel housing for corrosion resistance
Video Formats	4-in-1 (CVBS, TVI, CVI, AHD) for versatile compatibility
Lens Options	3.6mm (80° HFOV), 2.1mm (110° HFOV), 1.8mm (125° HFOV)
Resolution	1000TVL analog, 1080P HD in TVI mode
Infrared LEDs	Built-in IR illumination with a 10-meter range for low-light conditions
Power Efficiency	Designed for extremely low power consumption
Environmental Protection	IP66 rated for protection against dust and powerful water jets
Finish Options	Available in High Polish (standard), Brushed, or Custom Paint finishes

Ideal Applications

The IRIS-S060 is versatile enough to be used in a variety of marine applications, including:

• Onboard surveillance systems for enhanced security
• Engine room monitoring to keep an eye on critical areas
• Deck and companionway surveillance for comprehensive coverage
• Docking and backup cameras to assist with maneuvering

Easy Installation and Integration

With its multi-format output and compact design, the IRIS-S060 is straightforward to install and integrate into your vessel's existing electronic systems. The included Quick Guide provides detailed instructions to help you set up the camera with ease.

Download the Quick Guide (PDF)
