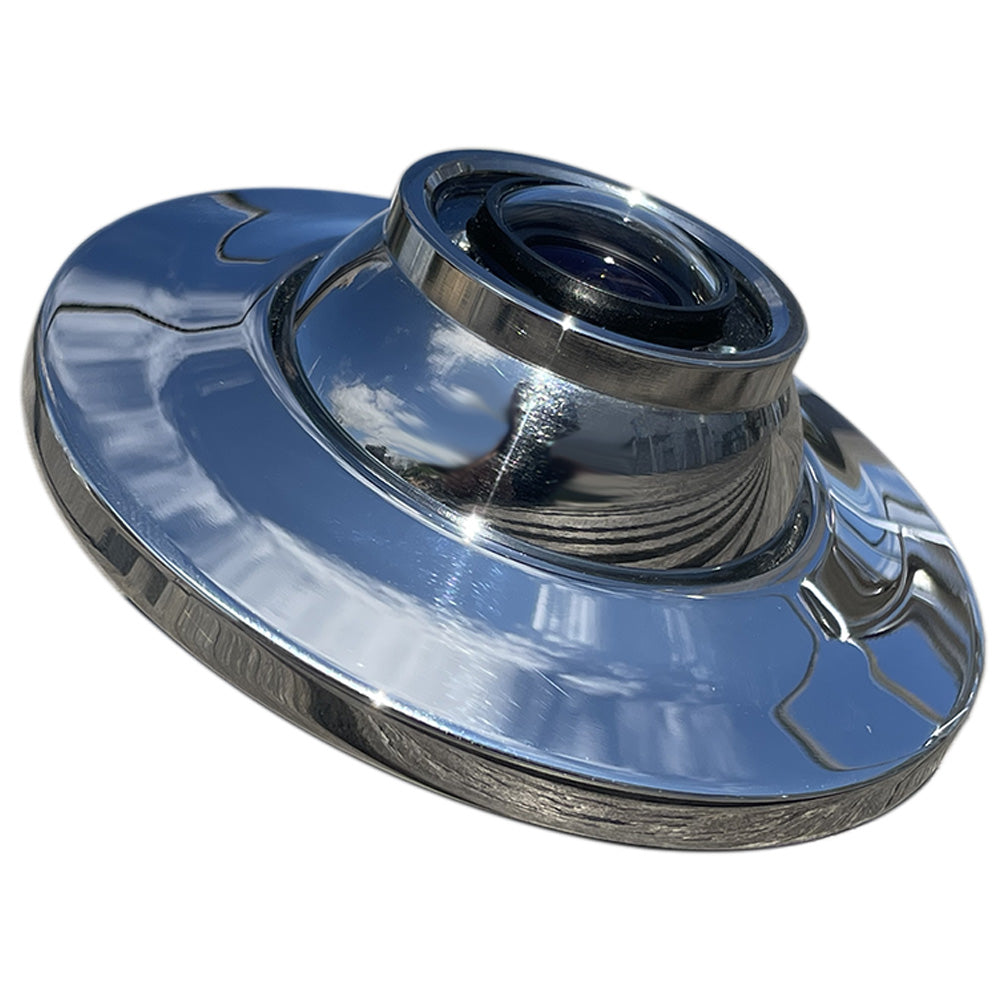

Iris HD IP Flush Vertical Surface Mount - 3MP Max Resolution - 316L - Recess Mount Dome

Iris’ Sx76 series HD IP Flush Vertical Surface Mount camera is engineered specifically for marine and boating applications. Crafted from 316L marine-grade stainless steel, this 3MP camera is designed to withstand harsh saltwater environments and provide reliable, high-definition monitoring for your vessel.

Key Features

• High Resolution: 3MP maximum resolution (2304 x 1296) for clear, detailed images.
• Durable Construction: Made from corrosion-proof 316L marine-grade stainless steel.
• Wide Field of View: 1.8mm lens offers a 160-degree horizontal field of view.
• Power Options: Supports both 12VDC and Power over Ethernet (PoE) for versatile installation.
• Infrared Illumination: Built-in IR LEDs provide visibility up to 10 meters in low-light conditions.
• Rugged Design: Shock and vibration proof, certified to EN60945, EN55032, EN55035, and IP66.
• Easy Installation: Recess mount dome with adjustable inner ball, secured by tightening the outer bezel.
• ONVIF Compliant: Ensures compatibility with a wide range of marine systems.

Applications

Perfect for a variety of marine and other rugged applications:

• Workboats and tug boats
• Fishing vessels
• Engine room monitoring
• Law enforcement and military operations
• Wind farm vessels
• Recreational vehicles (SUVs, RVs, work vehicles, trucks)
• Luxury vessels
• Passenger ferries and cruise liners

Technical Specifications

Feature	Specification
Lens	1.8mm Standard
Horizontal Field of View	160-degree HFOV
Sensor	1/4” CMOS Sensor
Resolution	Up to 3MP (2304 x 1296)
Interface	RJ45 10/100 Base T Ethernet
Video Processing	H.264 Codec / Dual Stream
Protocols/Video Format	TCP, UDP, HTTP, Multicast, UPnP, NTP, RTSP, ONVIF
ONVIF Profile	Profile S v21.06
Bitrate	VBR / CBR 32kbps - 8Mbps
Illumination	6 x 850nm Infra-Red LEDs, 10-meter range
Mirroring	Horizontal & Vertical, configurable via browser
Automatic Gain Control	Supported, multiple levels
Compatibility	Raymarine Axiom (LH2 or higher), Simrad, B & G, Lowrance (Latest NOS/NEON OS), PC-based systems, MFDs with digital (HDMI/DVI) input, MFDs via IRIS NVR/HVR, IE Browser
Operating Temperature	-30°C to +60°C
Connections	Water-resistant RJ45 socket, Non-PoE with DC power socket
Material	316L Marine Grade Stainless Steel (highly polished)
Power	+12VDC (±10-15VDC range), 1W nominal, 1.8W max (LEDs ON)
PoE Standard	IEEE802.3af
Dimensions	88mm diameter x 22.25mm above and below mounting surface
Environmental Rating	EN60529 / IP66
EMC Certifications	EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN60945:2002 Sections 9 & 10, FCC Part 15 A & B
RoHS Compliance	EN6300:2018

Compatibility

The Sx76 camera seamlessly integrates with various marine systems including:

• Raymarine: Compatible with Axiom (LH2 or higher)
• Simrad, B & G, Lowrance: Latest NOS / NEON OS
• Garmin Systems: Use with Iris CMAC systems
• PC-based Systems: MFDs with digital (HDMI/DVI) input, MFDs via IRIS NVR/HVR, IE Browser

Certifications

• EN60945
• EN55032
• EN55035
• IP66 (EN60529)
• FCC
• CE

Download the Brochure (PDF)
