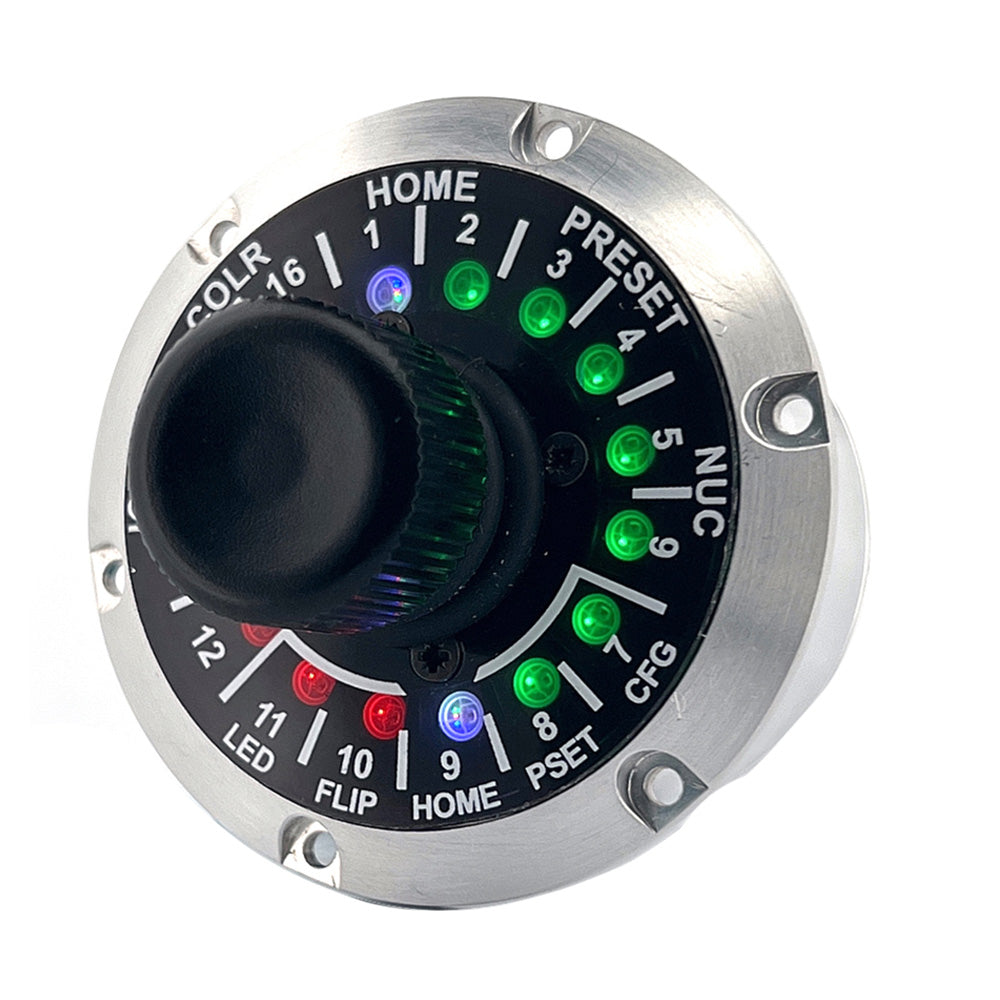

Iris Compact Mini Joystick f/ATOM Range Cameras

The IRIS599 Compact Controller is the ultimate solution for seamless camera management on your vessel. Designed specifically for marine and boating environments, this robust controller offers precision control over your ATOM Range Cameras, ensuring you have full visibility and control right at your helm.

Advanced Control Features

The IRIS599 boasts a waterproof 4-axis joystick, allowing effortless manipulation of pan, tilt, zoom, and selection controls. Navigate through an intuitive menu system to access advanced functionalities, including:

• Preset Operations: Set and recall up to 16 preset positions.
• Home Position Control: Easily set and return to your preferred home position.
• Absolute Reference Control for precise camera alignment.
• LED Brightness Adjustment to suit various lighting conditions.
• Thermal Camera Enhancements: Select color palettes, operate nonuniformity correction filters, and enhance image contrast.

Additionally, the IRIS599 allows you to switch between up to 16 camera modules on dual payload models, providing comprehensive control of your onboard camera system from a single, compact interface.

Premium Build Quality

Constructed from 316L marine-grade stainless steel, the IRIS599 is engineered to withstand the harshest marine environments. With a sleek diameter of just 2.75 inches, it fits seamlessly into any helm setup. The controller features a dimmable ring of colored LEDs that offer real-time feedback on camera positions and menu selections.

For vessels with limited helm space, the elegant POD599 mounting option allows the IRIS599 to be securely fixed to vertical or overhead areas, maintaining a clutter-free control environment.

Seamless Integration

Whether used independently or paired with our TE01 or CMAC systems, the IRIS599 serves as a powerful interface for managing your onboard or in-vehicle camera systems. It ensures reliable communication through RS485 Serial Data (Pelco D + Iris Variant Protocol), with a CANBus version scheduled for release in 2025.

Technical Specifications

Specification	Details
Bezel Diameter	70mm / 2.75"
Cut-out Diameter	52mm / 2.05"
Connector Type	M12 5-Pin Circular DIN Connector (CAN style connector) – Field installable connector supplied
Operating Temperature Range	-20°C to 65°C (-4°F to 149°F)
Storage Temperature	-30°C to 70°C (-22°F to 158°F)
Chemical Resistance	Designed to endure repeated exposure to saltwater and most chemicals found in light industrial and off-highway applications
Max Operating Power	1.5W Max Brightness

Key Features

• Super-Compact Form Factor (Only 2.75” in Diameter)
• Circular Design for Easy Cutout and Installation
• A316L Marine Grade Stainless Steel Case
• 4-Axis Joystick (Pan, Tilt, Zoom & Select)
• Scaled Speed Controls for Precision Maneuvering
• Intuitive Menu Control with 16 Colored Feedback LEDs
• Dimmable LEDs for Enhanced Visibility
• Supports Call and Set Preset Positions (Up to 16)
• Enhanced Thermal Camera Functionality
• Switches Between 16 Camera Inputs
• Low Power Operation (+9-30VDC)
• Supports RS485 Serial Data (CANBus Version due 2025)
• IP66 Environmental Rating for Superior Protection
• Compatible with Pelco D + Iris Variant Protocol
