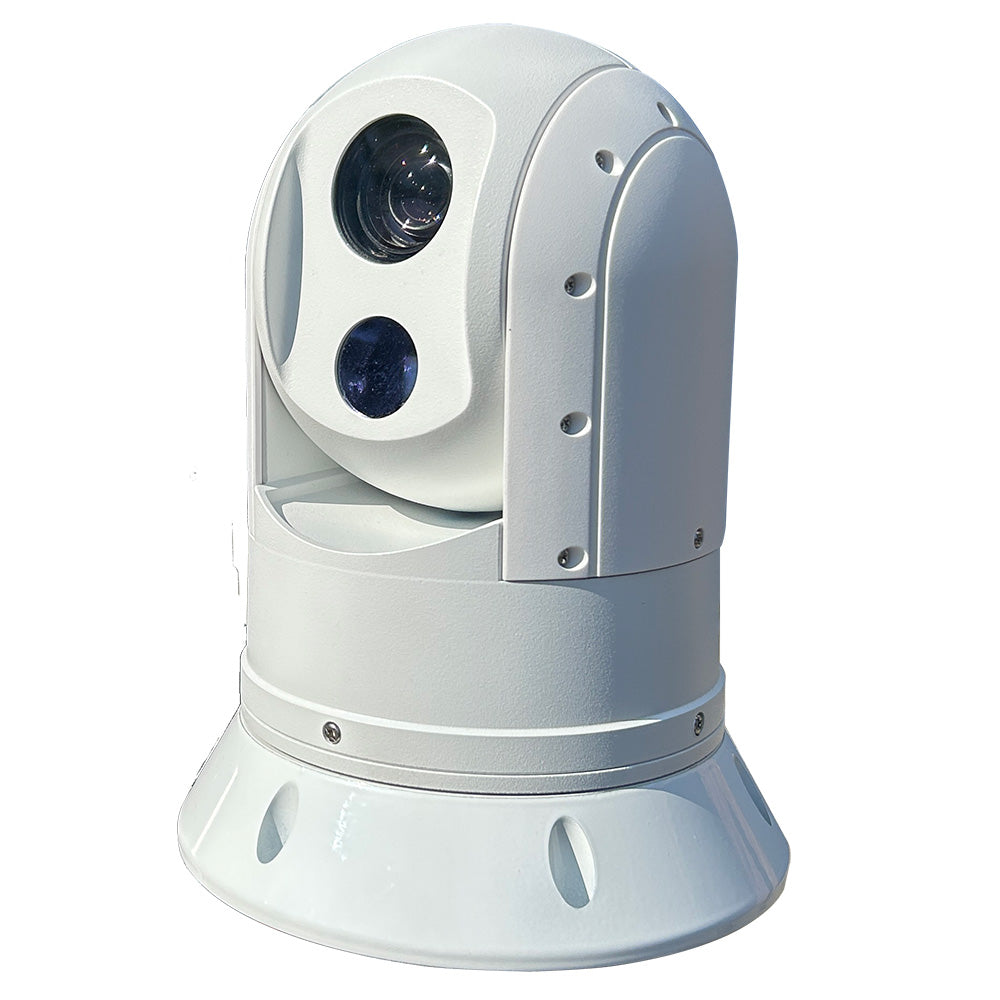

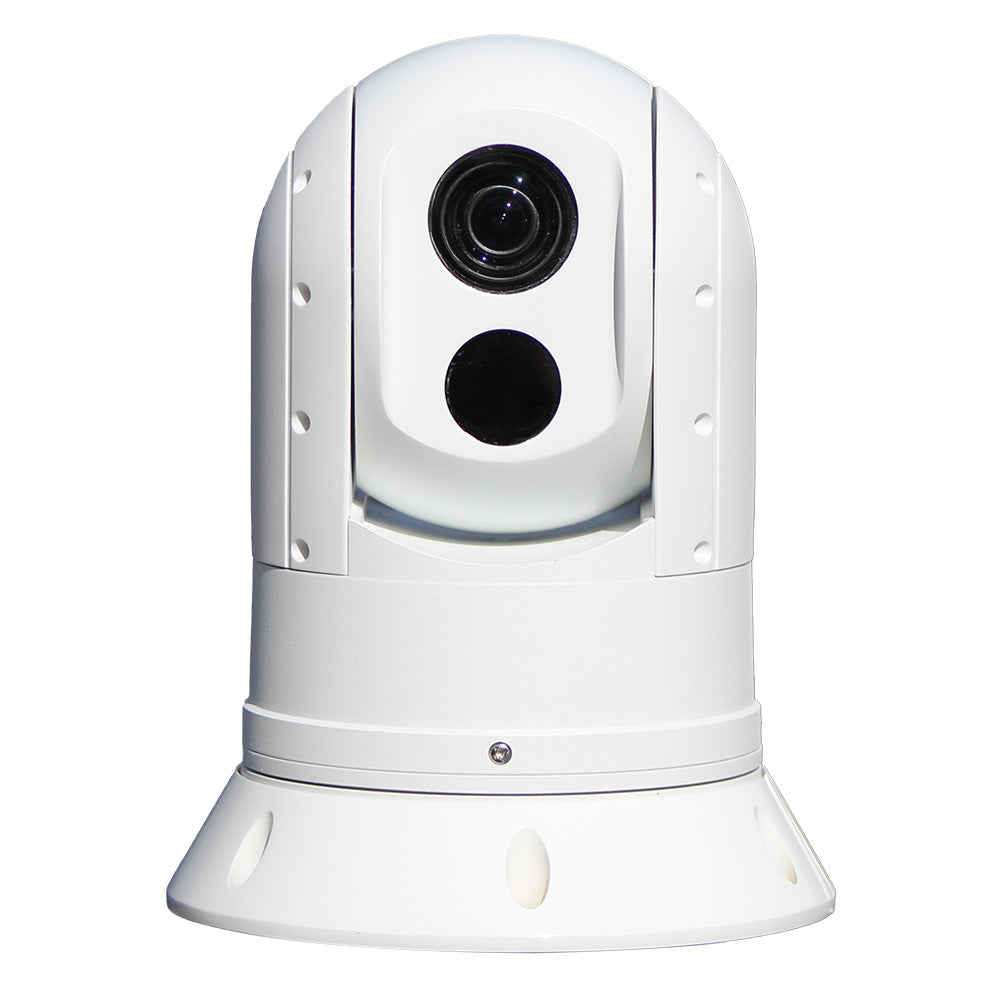

Iris A295 Dual Payload 384x288 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera

The A295 Dual Payload 384x288 Thermal + 1080P Visible Spectrum IP PTZ Camera by Iris Innovations is the ultimate surveillance solution for marine and boating applications. Combining advanced thermal imaging with high-definition visible spectrum capabilities, this versatile camera ensures unparalleled visibility and security on the water, day and night.

Unmatched Dual Spectrum Imaging

Equipped with both thermal and visible spectrum sensors, the A295 provides comprehensive surveillance capabilities. The high-resolution thermal camera delivers clear images even in complete darkness, while the 2MP HD visible spectrum camera ensures sharp, detailed footage with excellent low-light performance.

Superior Performance and Zoom Capabilities

With an industry-leading 400×300 thermal resolution and a visible spectrum resolution of 1920x1080 pixels, the A295 ensures every detail is captured accurately. The camera features a 10x optical zoom for the visible spectrum and a 4x digital zoom for thermal imaging, allowing operators to closely monitor distant objects and activities with ease.

Robust and Weather-Resistant Design

Designed to withstand harsh marine environments, the A295 is housed in a compact, waterproof case with an IP66 rating. Available with side entry or base entry cable options, the camera is built to resist corrosion, vibration, and extreme weather conditions, ensuring reliable performance on all types of vessels.

Flexible Installation and Integration

The A295’s lightweight and compact form factor, measuring only 206mm x 160mmø and weighing 2Kg, makes it an ideal fit for various marine applications, including RIBs, center consoles, and sports fishing boats. Each sensor has its own IP address, allowing independent configuration and control. The camera is compatible with leading marine chart plotters via CMAC interfaces and includes an RS485 Serial Data connection for enhanced control options using joystick devices and NVRs.

Advanced Compatibility and Compliance

Maximize your surveillance setup with the A295’s ONVIF compliance, ensuring seamless integration with a wide range of networked devices. Additionally, the camera is NDAA compliant, making it suitable for government, military, and other security-sensitive applications.

Key Features

• Dual Spectrum Cameras: Thermal & Visible Spectrum
• Visible Spectrum: 2MP HD Resolution with 10x Optical Zoom
• Thermal Core Resolution: 384x288 with 4x Digital Zoom
• Compact Design: Lightweight and Space-Saving
• Dimensions: 206mm x 160mmø | Weight: 2Kg
• Flexible IP Addressing: Single or Dual IP Options
• Mounting Options: Side or Rear Mount Waterproof Connectors
• Quick Connector: Push Lock - IP66 Rated
• Pixel Pitch: 17µm
• Control Interfaces: IP and RS485 Serial Data
• Power Requirements: 750mA @ +12VDC / 8.4W
• Environmental Rating: IP66

Technical Specifications

Why Choose the A295 for Your Vessel?

The A295 Dual Payload PTZ Camera is designed with the marine environment in mind. Its compact size ensures seamless integration into your vessel’s design without taking up valuable space. The robust waterproof casing and IP66 rating guarantee reliable performance even in the most challenging weather conditions. Whether you’re navigating at night or monitoring busy waterways, the A295 provides the clarity and control you need to enhance safety and security on board.

Easy Setup and User-Friendly Operation

Installation is straightforward with versatile mounting options and quick-connect features. The A295’s intuitive interface and compatibility with various control devices make it easy to integrate into your existing marine surveillance system. Whether you’re using a joystick controller or an NVR, the A295 adapts to your setup, providing a flexible and scalable solution for your maritime security needs.

Download Resources

For more information, refer to the following documents:

• Quick Guide (PDF)
• Owner's Manual (PDF)
