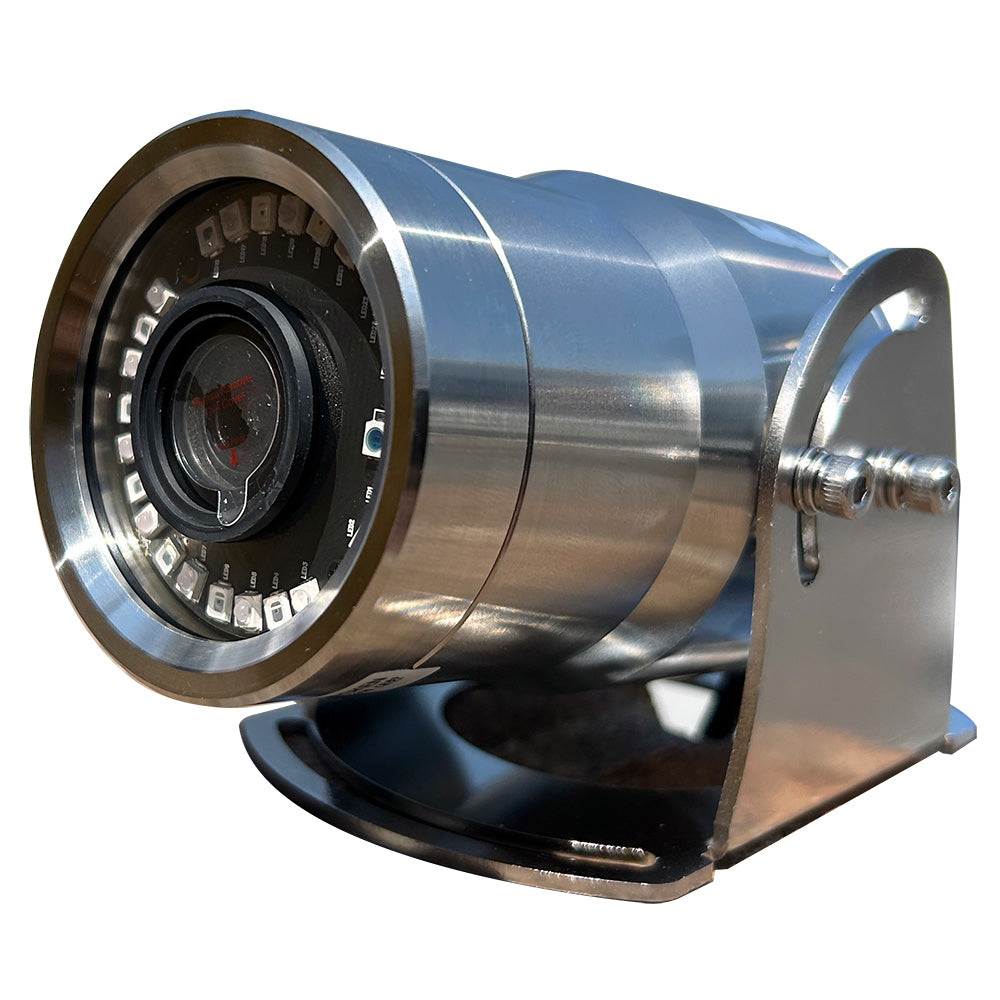

Iris 5MP Hi-Def Marine IP SS Bullet Camera - 3.6mm Lens

Experience unparalleled surveillance with the IRIS490 Marine IP Stainless Steel Bullet Camera. Designed specifically for the demanding marine environment, this high-definition camera ensures reliable and crystal-clear monitoring for a wide range of boating and maritime applications.

Key Features

• Wide-Angle Vision: Equipped with a 3.6mm lens offering an 80-degree horizontal field of view for comprehensive coverage.
• Durable Construction: Crafted from marine-grade 316 stainless steel with a high-polish finish, ensuring longevity and resistance to harsh marine conditions.
• High-Definition Clarity: Delivers stunning 1920×1080 resolution for superior image quality.
• Enhanced Night Vision: Built-in high-power infrared LEDs provide clear video coverage up to 20 meters in low-light conditions.
• Submersible Capability: Optional fully submersible connections available for sub-surface surveillance needs.
• Power Over Ethernet (PoE): Supports IEEE802.3af for simplified installation and power management.
• Seamless Integration: Compatible with Raymarine Axiom (Lighthouse 2 and higher), Furuno TimeZero v4.1, and various PC-based chart-plotter systems.
• Energy Efficient: Optimized power consumption to minimize energy usage without compromising performance.
• Rugged Protection: IP66 rated for superior environmental protection against dust and water ingress.

Ideal Applications

• Workboats and Commercial Shipping
• Luxury Motor Yachts
• Fishing and Sports Fishing Vessels
• Ferry Boats and Passenger Vessels
• Law Enforcement and Emergency Services
• Rapid Deployment Scenarios
• Vehicles and Transport Applications

Technical Specifications

Specification	Details
Lens	3.6mm
Horizontal Field of View	80 degrees HFOV
Sensor	1/4" CMOS Sensor
Resolution	1920×1080P (2MP) Max
Interface	RJ45 10/100 Base T Ethernet
Video Processing	H.264 Codec / Dual Stream
Protocols/Video Format	TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
ONVIF Compliance	Profile S v2.4
Bitrate	VBR / CBR 32kbps - 8Mbps
Illumination	2 x High Power Infrared LEDs (850nm) – 20 Meter Range
Mirroring	Horizontal & Vertical Configurable via Browser
Automatic Gain Control	Supported with Multiple Levels
Compatibility	Raymarine Axiom (LH2 or higher), Navico MFDs (Simrad, Lowrance, B&G), PC-based Systems, HDMI/DVI MFDs, IRIS NVR/HVR, IE Browser, CMAC Systems
Operating Temperature	-30°C to +60°C
Connections	Water-Resistant RJ45 Socket, DC Power Socket, Female BNC (1090)
Material	316 Stainless Steel
Power	PoE IEEE802.3af / 12VDC <200mA Max.
Weight & Dimensions	1.170 Kg / 126mm x 64mm
Environmental Protection	IP66 Standard / IP68 Submersible Option Available

For more detailed information, please download the Brochure (PDF).
