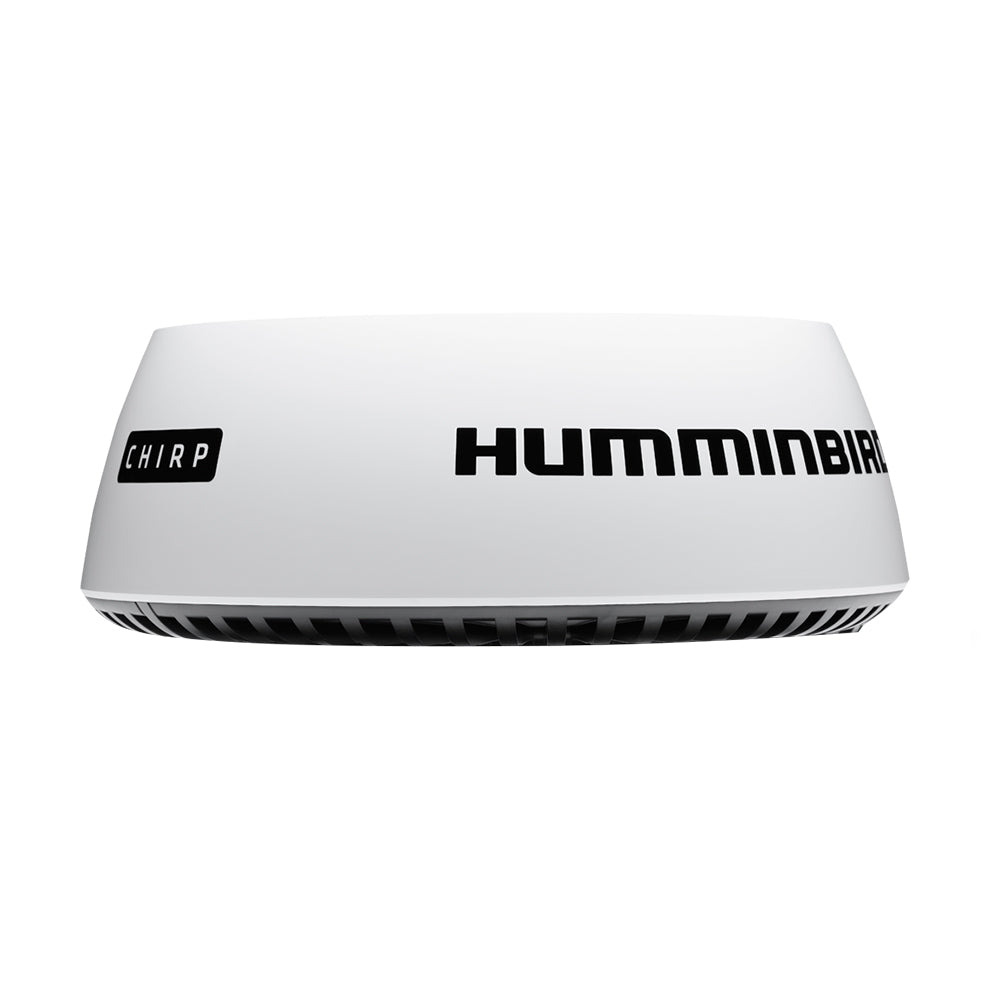

Humminbird HB2124 CHIRP Radar

Enhance your marine navigation and fishing experience with the HB2124 CHIRP Radar. Designed for seamless integration with select networking HELIX and ONIX models, this advanced radar system delivers exceptional imaging capabilities, ensuring superior situational awareness in all weather conditions. Whether you're tracking weather patterns, identifying vessel movements, or locating gamefish through birds and floating obstacles, the HB2124 CHIRP Radar provides the clarity and precision you need on the water.

Advanced CHIRP Technology

The HB2124 CHIRP Radar utilizes state-of-the-art CHIRP pulse compression technology, setting a new standard for compact solid-state radars. This innovative approach allows for enhanced radar imaging at both long and extremely short ranges, providing detailed and accurate information to help you make informed decisions while navigating or fishing.

Key Features

Feature	Specification
Antenna Dimension	21" Enclosed Dome
Antenna Type	Patch Array
Peak Power Output	20W
Transmit Frequency	9354 to 9446 MHz
Beam Width	4.9° Horizontal and 20° Vertical
Input Voltage	12 or 24 VDC (Minimum - 10.8V, Maximum - 31.2V)
Networking	Ethernet
Maximum Range Scale	1/16 to 24 nautical miles
Power Consumption	Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
Duplexer	Circulator
Pulse Widths @ 3 dB	40 ns to 14.7µs
CHIRP Lengths	400 ns to 20µs
CHIRP Bandwidth	Up to 32 MHz
IF Bandwidth	26 MHz
Noise	Less than 4 dB
Polarization	Horizontal
Waterproofing	IPX6
Weight	12.3 lbs (5.6 kg)
Compatibility	Networking HELIX models and all ONIX models

Specifications

• Array Size: 21"
• Box Dimensions: 12"H x 24"W x 24"L
• Weight: 21.2 lbs
• UPC: 082324050169

Why Choose HB2124 CHIRP Radar?

• Superior Imaging: Achieve crystal-clear radar images that enhance your ability to detect and identify objects in various conditions.
• Energy Efficient: Low power consumption ensures your vessel's power systems remain efficient without compromising performance.
• Durable Construction: Built with an IPX6 waterproof rating to withstand harsh marine environments.
• Easy Integration: Compatible with a wide range of HELIX and ONIX models, making installation straightforward.
• Long Range Capability: With a maximum range of up to 24 nautical miles, stay aware of your surroundings no matter where you are.

Download the Owner's Manual (PDF) to learn more about setting up and maximizing the features of your HB2124 CHIRP Radar.
