Hella Marine  |  SKU: LOS-65478  |  Barcode: 9002920043076

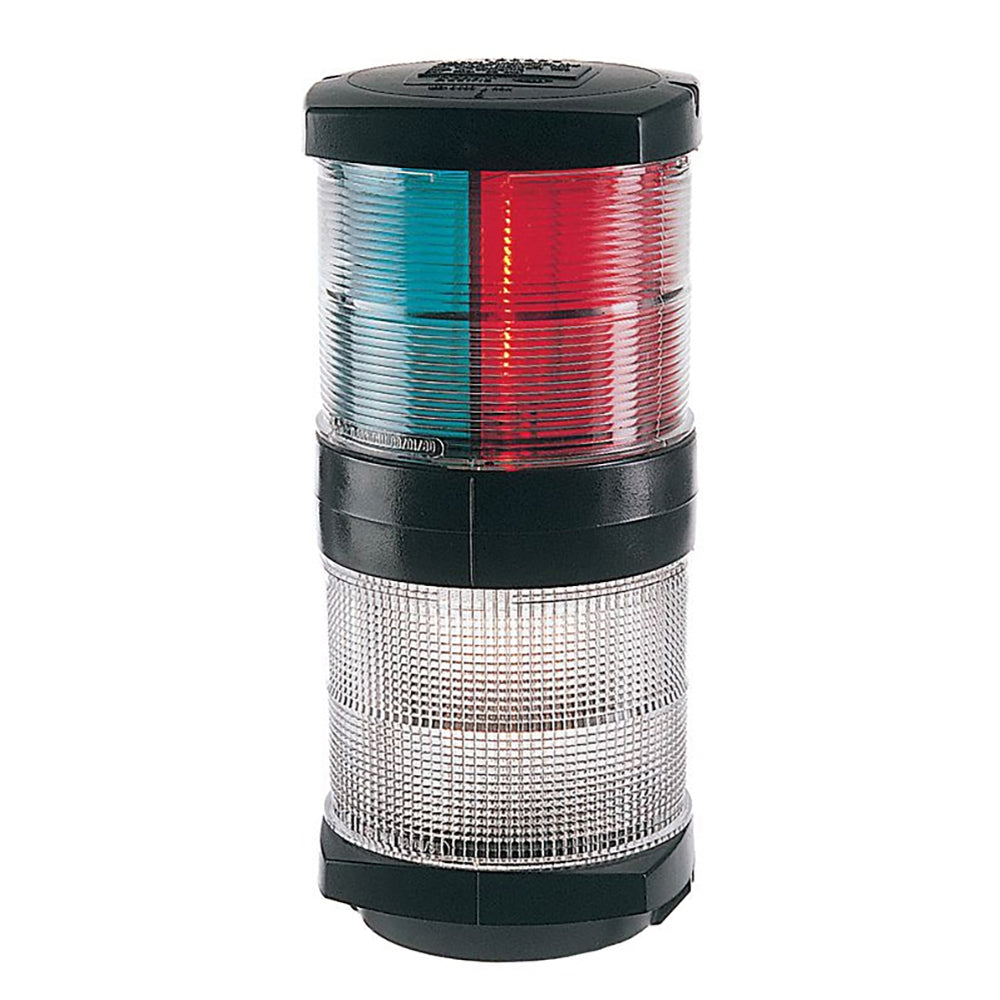

Hella Marine Tri-Color Navigation Light/Anchor Navigation Lamp- Incandescent - 2nm - Black Housing - 12V

$123.99 USD $181.16

Product Description

The Tri-Color Navigation Light is an essential safety component for your marine vessel, offering reliable signaling and enhancing the aesthetic appeal of your yacht. Designed with a sturdy black housing and equipped with incandescent bulbs, this 12V navigation lamp ensures visibility over a minimum distance of two nautical miles, adhering to all key maritime regulations.

Key Features

  • Tri-Color Options: Choose from White, Red, and Green lenses to meet various navigational requirements.
  • Durable Construction: Non-magnetic and saltwater-resistant materials ensure long-lasting performance in harsh marine environments.
  • UV & Impact Resistant: The plastic housing and lens are designed to withstand UV exposure and physical impacts.
  • Easy Maintenance: Features a bayonet lock mechanism for hassle-free bulb changes.
  • Secure Installation: Horizontal surface mount design with cable entry through a base plate equipped with a rubber grommet to prevent water ingress.
  • Protection Rating: IP55 rating provides protection against dust and low-pressure water jets.

Specifications

Feature Details
Lens Color White, Red, Green
Visible Range 2 Nautical Miles
Housing Color Black
Voltage 12V
Bulb Type 12V / 25W BAY15d Incandescent (Included)
LED No
Dimensions 4" H x 4" W x 12" L
Weight 1.3 lbs
Degree of Protection IP55
Approvals IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
UPC 9002920043076

Installation Guide

Installing the Tri-Color Navigation Light is straightforward with its horizontal surface mount design. Follow these steps for a secure and waterproof installation:

  1. Select the desired mounting location on your yacht's mast.
  2. Align the base plate of the navigation light and secure it using the provided hardware.
  3. Insert the cable through the base plate and tighten the rubber grommet to ensure a watertight seal.
  4. Attach the lamp housing using the bayonet lock mechanism, allowing for easy access when changing bulbs.
  5. Connect the electrical wiring to your vessel's 12V system, ensuring all connections are secure and insulated.

Why Choose Our Tri-Color Navigation Light?

Our navigation light stands out with its robust construction, compliance with international maritime standards, and ease of installation and maintenance. Whether you're cruising the open seas or docking at a marina, this navigation lamp provides the visibility and reliability you need for safe and stylish boating.
