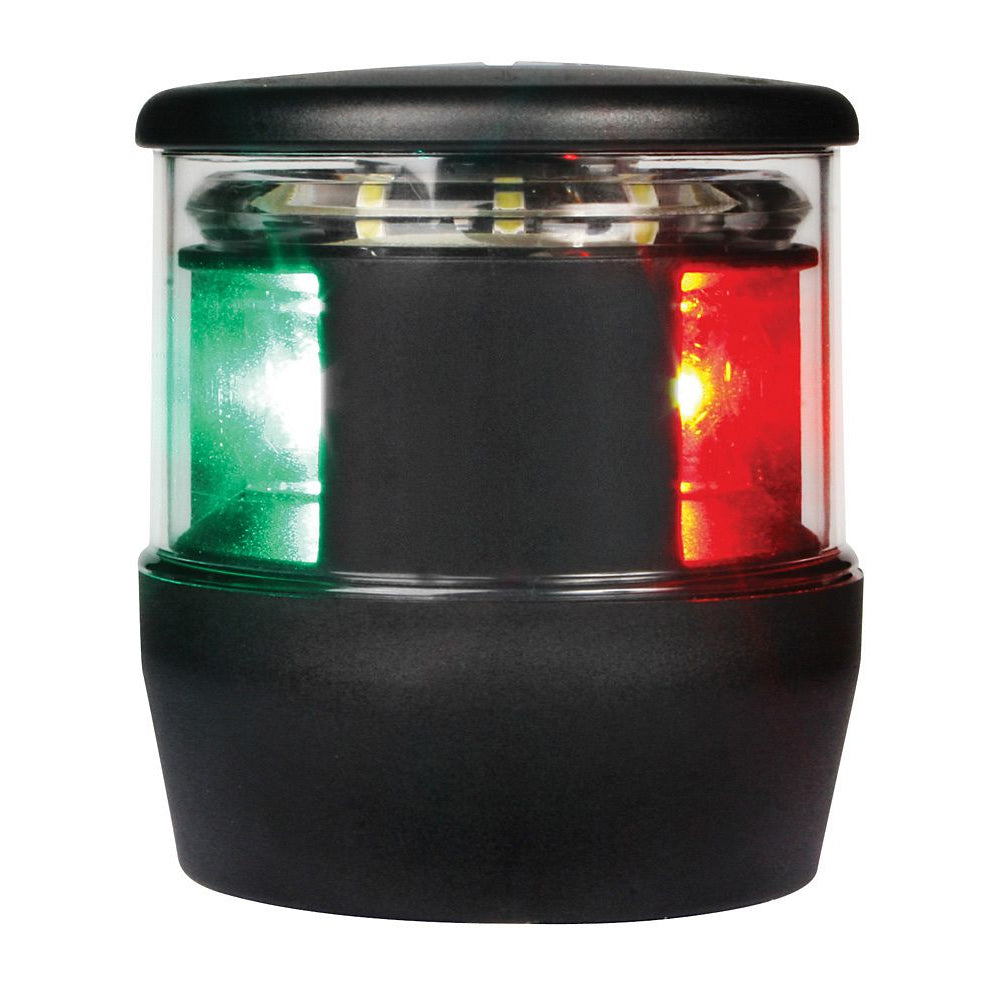

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2nm

The NaviLED TRIO Tri Color Navigation Lamp is the perfect addition to any marine vessel, offering unmatched reliability, efficiency, and safety on the water. Crafted with advanced materials and the latest LED technology, this navigation lamp ensures your boat is both visible and compliant with maritime regulations.

Key Features

Energy Efficient Performance

Designed to minimize power consumption, the NaviLED TRIO operates with an ultra-low current draw, saving valuable energy on board. The Port, Starboard, and Stern lights consume less than 3.5W combined, while the All Round White/Anchor light uses less than 1.5W.

Durable and Weatherproof Design

Built to withstand harsh marine environments, this navigation lamp is fully sealed with an IP67 rating, making it impervious to saltwater and contaminants. The heavy-duty Grilamid® lens and housing, combined with Hella marine LED technology, provide exceptional resistance to vibration, impact, and shock loads.

Enhanced Visibility and Safety

Equipped with Hella marine lens and optics technology, the NaviLED TRIO offers ultra-precise horizontal and vertical cut-off angles. This ensures your vessel's movement and heading are clearly indicated, enhancing safety for you and others on the water.

Easy Installation and Maintenance

The unique installation and removal system utilizes a 316 stainless steel mounting shaft, allowing for secure attachment and reliable electrical connections. This design simplifies the installation process and ensures long-term reliability.

Specifications

Feature	Details
Material Description	UV resistant, high impact nylon
Lens Material	UV resistant, ultra heavy duty Grilamid lens
Mounting Shaft	316 stainless steel
Minimum Visible Distance	2 Nautical Miles (Yacht)
Cable	Pre-wired with 400mm of triple core marine cable
Operating Voltage	Multivolt 9-33V DC (early version 8-28V DC)
Voltage Protection	Spike protected to +500 volts, Reverse polarity protected to -700 volts
Power Consumption	Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W
Degree of Protection	IP 67 - Completely Sealed
Weight	400g (including cable)
Approvals	BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
Lens Color	White/Red/Green
Visible Range	2nm
Housing Color	Black
Voltage - Input Range	9-33V
LED	Yes
Box Dimensions	4"H x 6"W x 9"L
Weight	1.1 lbs
UPC	9002920143547

Why Choose NaviLED TRIO?

• Reliability: Engineered with advanced materials to endure the toughest marine conditions.
• Efficiency: Low power consumption ensures longer battery life and reduced energy usage.
• Safety: High visibility and precise lighting angles enhance navigation safety.
• Ease of Installation: The unique mounting system allows for quick and secure installation.
• Compliance: Meets various international maritime standards, ensuring it's suitable for diverse applications.

Customer Reviews

Join the many satisfied boaters who trust NaviLED TRIO for their navigation lighting needs. Experience the perfect blend of durability, efficiency, and safety on your next voyage.

Get Yours Today

Enhance your vessel's navigation system with the NaviLED TRIO Tri Color Navigation Lamp. Order now and ensure your boat stands out on the water with reliable and energy-efficient lighting.
